PRESIDENT LINCOLN II PLUS + ASC 10 -12 m CB Ham Radio

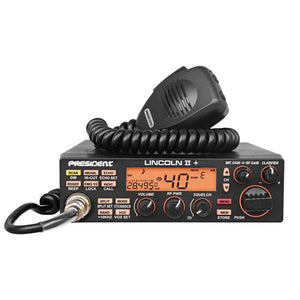

President LINCOLN II +
FREQUENCY AS STANDARD: 28,000-29.700MHz & 24.890-24.990MHz
WE CAN MODIFY (EXPAND) THIS RADIO FOR YOU FREE OF CHARGE. SEND US A MESSAGE AT TIME OF ORDERING REQUESTING EXPANSION) 24.715 TO 30.105
BAND A 26.965 - 27.405
BAND B 27.415 - 27.855
BAND C 26.515 - 26.955
BAND D 27.865 - 28.305
BAND E 26.065 - 25.505
BAND F 28.315 - 28.755
BAND G 25.615 - 26.055
BAND H 28.765 - 29.205
BAND I 29.215 - 29.655
BAND J 29.665 - 30.105
BAND K 25.165 - 25.605
BAND L 24.715 - 25.155
President's quality 10M Band radio has Public Address, RF Power, VFO Mode, RF/Mic Gain and channels/memories scan.
Our existing stock of Lincoln radios is President's latest version (V3) with better receive and improved s-meter, as shown in one of the images for this item.
SPECIAL FEATURES:
Rotary switch and Up/down channel selector
VFO Mode (Continuous scanning of 28.000MHz to 29.70Mhz)
Volume adjustment and ON/OFF
RF Power
Manual squelch and ASC
Multi-functions LCD display
Frequencies display
S-meter
Public Address
Vox function (Hands free)
ANL filter , NB and HI-CUT
RF Gain / Mic Gain
Clarifier
Channels and memories scan
6 Memories
CTCSS (38 tones)
DCS (104 codes)
Dim
MENU Function Key
Beep Function
Roger Beep
Mode switch AM/FM/LSB/USB/CW
Dual watch
Key locking
SWR (Power Reading /SWR)
Preset 9/19
TOT (Time Out Timer) adjustable
Front microphone plug
External loudspeaker jack
Dimensions: 52(H) x 170(W) x 250(D)
Weight: 1.4kg
TECHNICAL SPECIFICATIONS:
General
Bands-10
Modulation modes-AM/FM/LSB/USB/CW
Frequency ranges-from 28.000 MHz to 29.700 MHz
CTCSS-38 tones
DCS-104 codes
Antenna impedance:50 ohms
Power supply:13.2 V
Dimensions H x W x D (in mm):52 x 170 x 250
Weight:1.4 kg
Accessories supplied:power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws
Transmission:
Frequency allowance:+/- 300 Hz
Carrier power:12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference:inferior to - 50 dBc
Audio response:300 Hz to 3 kHz
Emitted power in the adj channel:inferior to 20 µW
Microphone sensitivity:3 mV
Drain:6 A (with modulation)
Modulated signal distortion:1.8 %
Reception
Maxi. sensitivity at 20 dB sinad:0,5 μV -110 dBm (AM)
0,35 μV -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
Frequency response:300 Hz to 3 kHz
Adjacent channel selectivity:60 dB
Maximum audio power:3 W
Squelch sensitivity:mini 0.2 μV - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate:60 dB
Intermediate frequency rej. rate:70 dB
Drain:400 mA nominal, 600 mA max
