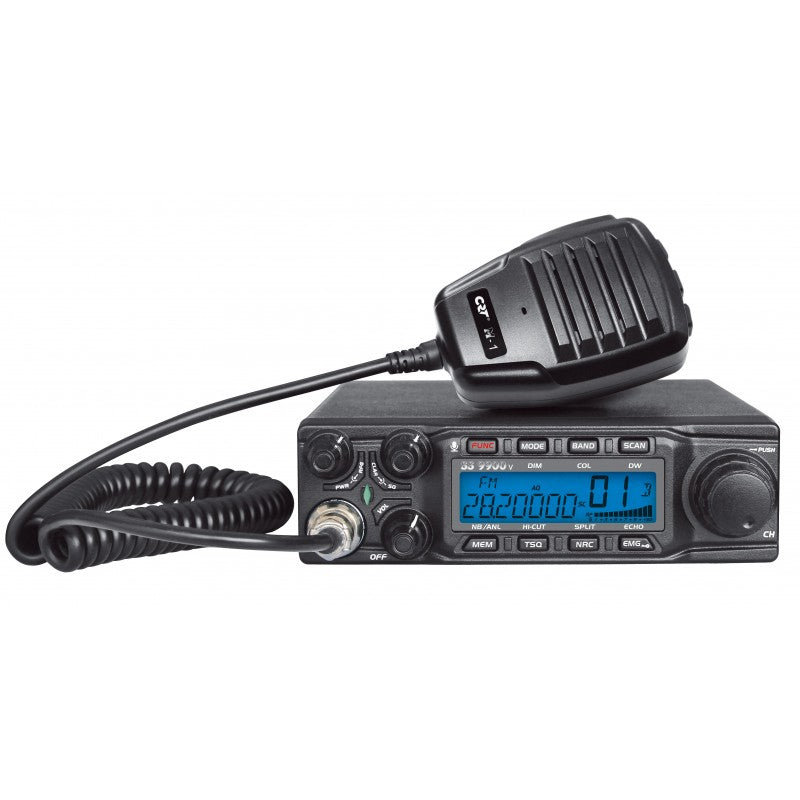

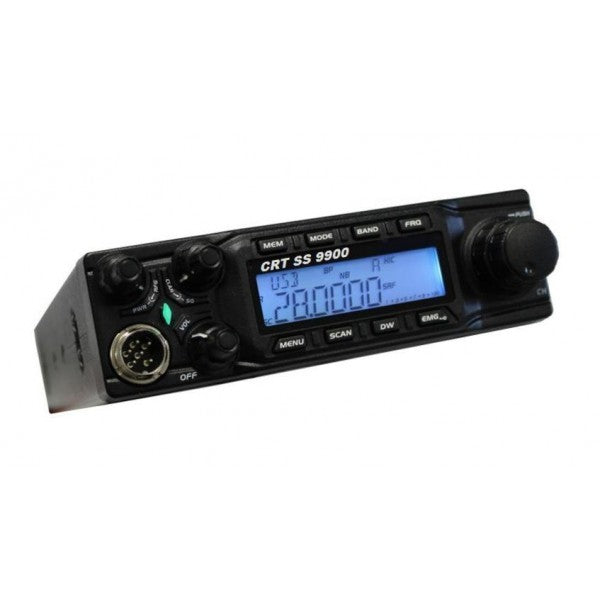

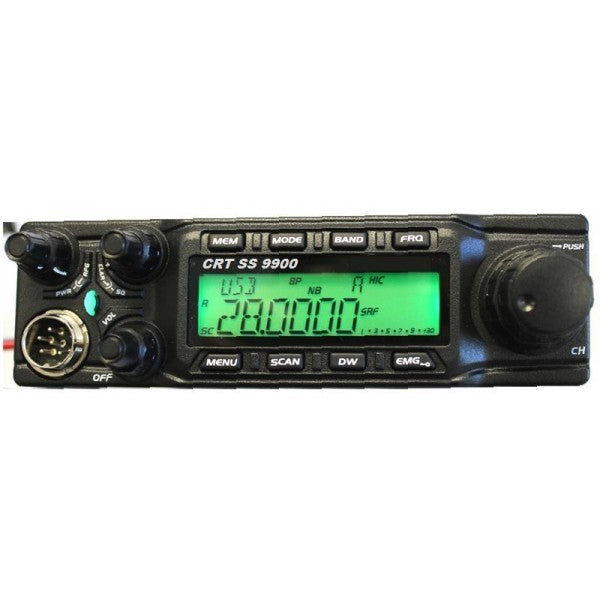

CRT 9900 V4 CRT SS 9900 Ham Radio CB PREP ROGRAMMED 10 11 12m BANDS UK CHEAPEST.

CRT 9900 V4 CRT SS 9900 Ham Radio CB PREP ROGRAMMED 10 11 12m BANDS

EXPORT MODE ONLY DONE BY REQUEST

WE PROGRAM THE RADIO

BAND A - 27.60125 TO 27.99125 UK 40

BAND B - 26.065 TO 26.505

BAND C - 26.515 TO 26.955

BAND D - 26.965 TO 27.405

BAND E - 27.415 TO 27.855

BAND F - 27.865 TO 28.305

BAND G - 28.315 TO 28.755

BAND H - 28.765 TO 29.205

BAND I - 29.215 TO 29.655

BAND J - 29.665 TO 30.105

BAND K - 24.8850 TO 25.3650

BAND L - 25.3750 TO 25.6050

WITH SOFTWARE WIDE BAND 24.880 - 30.1050 MHz

Other Radios only have CTCSS DCS as opition at a cost, 9900 has it

Brief specification :-

Modes: AM, FM, USB, LSB,

PA High/Med/Low power

selectable AM Max: 17W FM Max: 45W SSB Max: 60W

ASQ function Large

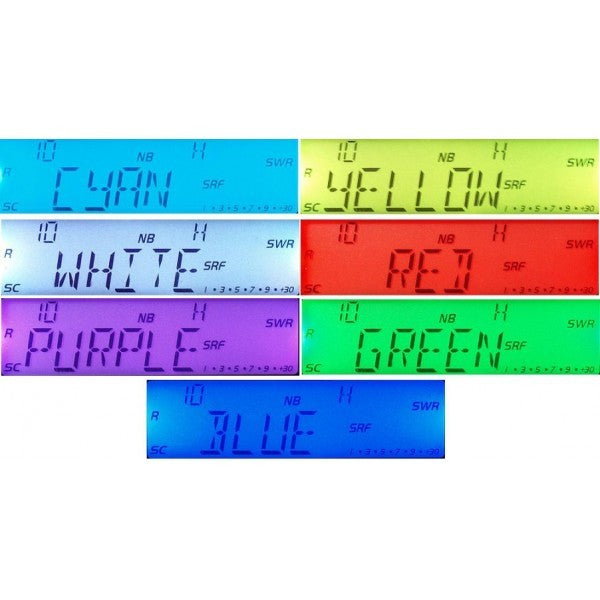

LCD display

ECHO function Frequency programmable on computer

VFO channel

CTCSS/DCS INCLUDED

Size - 158 x 48 x 245mm W

HD CTCSS and DCS encoder / decoder (included as standard) 38 CTCSS DCS-104 General

Frequency Range 24.880 - 29.700 MHz (Programmable) Channel 40 channels (programmable) in each band

Frequency Control Phase-Locked-Loop

Synthesizer Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz

Frequency Tolerance 0.005%

Frequency Stability 0.001%

Temperature Range -20c fo + 50c

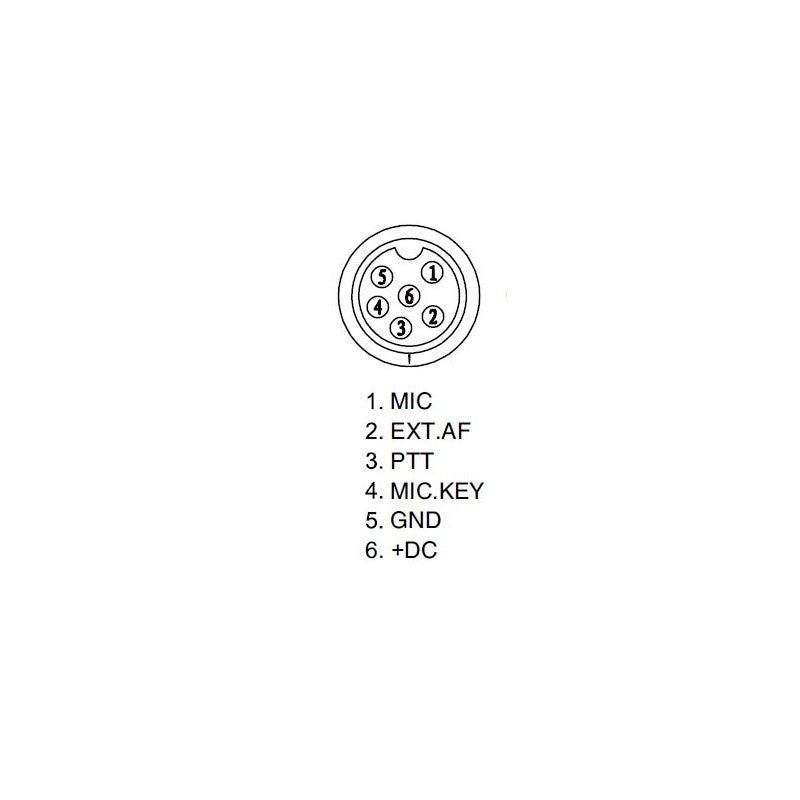

Microphone with push-to-talk /UP/DN and coiled cord

Input voltage 13.8V

Antenna connector UHF,SO239

TRANSMISSION Power Output AM: 15W / FM 45W / SSB: 60W(PEP)

Current Drain 10A (with modulation)

Modulation AM/FM/SSB Inter-modulation

Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB SSB Carrier

Suppression 55dB

Unwanted Sideband 50dB

Frequency Response AM/FM: 300 to 3000Hz SSB 450 to 2500Hz

Output Impedance 50 ohms, unbalance

RECEPTION

Sensitivity SSB: 0.25V for 10dB(S+N)/N at greater than 1/2-watt of audio output AM:1.0 V for 10dB(S+N)/N at greater than 1/2watt of audio output FM: 1.0V for 20 dB (S+N)/N at greater than 1/2 watt of audio output Adjacent-Channel Selectivity AM/FM: 60dB SSB: 70dB Image

Rejection More than 65 dB IF

Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF SSB: 10.695MHz

RF Gain Control 45 dB adjustable for optimum signal reception

Automatic Gain Control(AGC) Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt.

Squelch Adjustable; threshold less than 1.0V.

Automatic Squelch Control(only AM/FM)1.0V

Audio Output Power 3 watts into 8 ohms

Frequency response AM/FM: 300 to 3000 Hz SSB 450 to 2500 Hz

Built-in Speaker 8 ohms, round.

External Speaker(Not Supplied) 8 ohms; disables internal speaker when connected.
