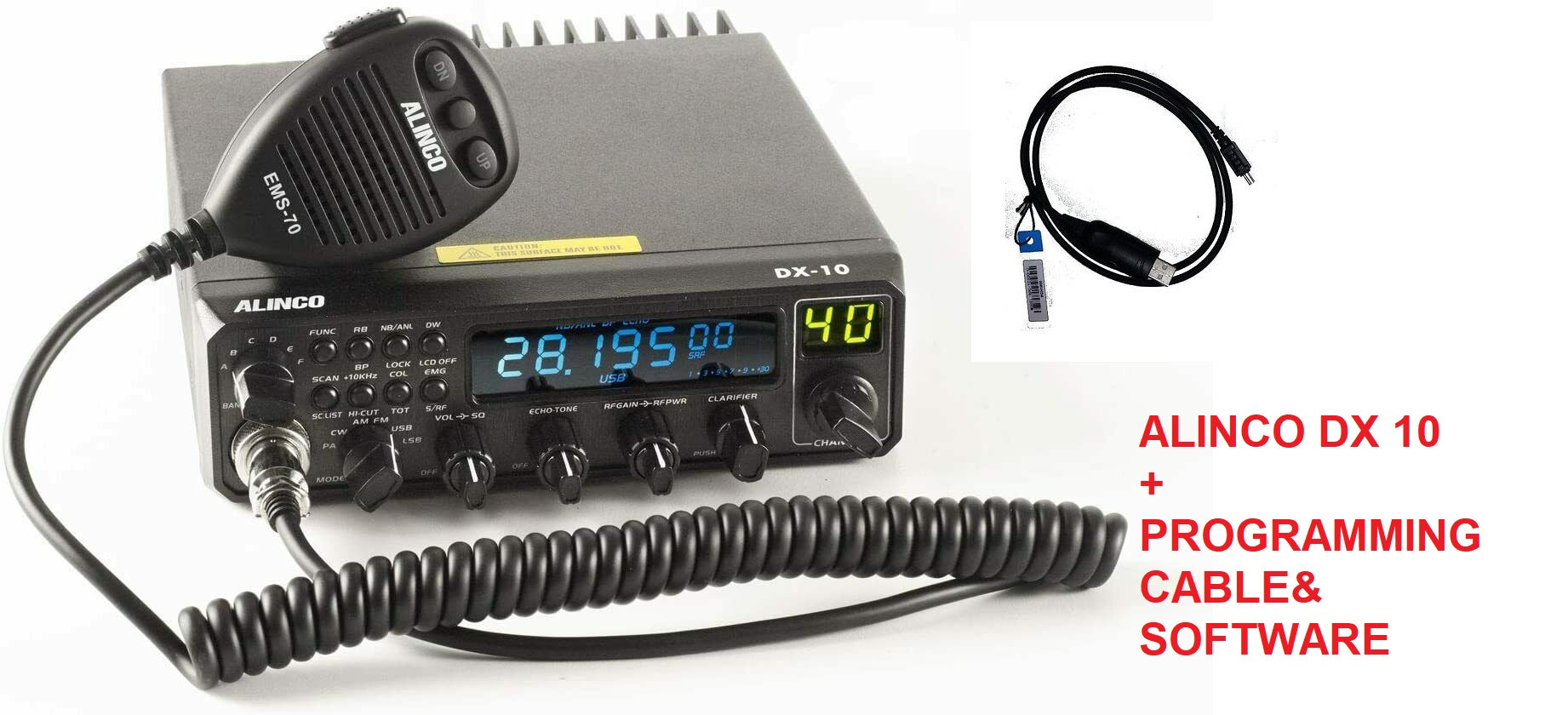

ALINCO DX-10 Ham CB Radio SSB FM AM DX10 (CRE 8900) PLUS PROGRAMMING CABLE & SOFTWARE
ALINCO DX-10 Ham Radio SSB FM AM (CRE 8900) as the dx 135 DX10
PRE PROGRAMED BANDS
BAND A: 25.615 TO 26.055
BAND B: 26.065 TO 26.505
BAND C: 26.515 TO 26.955
BAND D: 26.965 TO 27.405
BAND E: 27.415 TO 27.855
BAND F: UK 40
all mode AM/FM/SSB mobile transceiver from Alinco. Frequency range (default) 28.000 - 29.700 MHz
Max Frequency range - 25.000-29.90 MHz (programmable for export use)
Power Output 1-12watts FM/FM/CW 0-25watts USB/LSB
Operating modes AM/CW/FM/LSB/USB
Channel spacing 10 Hz/100 Hz / 1 kHz / 10 kHz
Memory 40ch per band (up to 60 per band are programmable via optional software)
Features & Functions
Multi-colour display (7 selectable colours or rainbow mode) with backlight
RF gain
LCD S-meter
SWR meter
NB Noise Blanker and ANL function
Clarifier for fine tuning PC programmable settings +10 KHz offset button Scanning features
Dual Watch function
External speaker socket (3.5mm)
Jack for CW key CW Sidetone 300Hz-3kHz in 10 adjustable steps
Hi-Cut function (RX tone)
Keypad lock
Programmable time-out timer Over-voltage protection
PA facility Reset function
Microphone connector - 6-pin
Antenna connector PL-259
connector (SO239)
Power requirements 13.8 VDC + / -15%
Dimensions (WxHxD) 173 x 51 x 238 mm
Weight 1.5 kg
