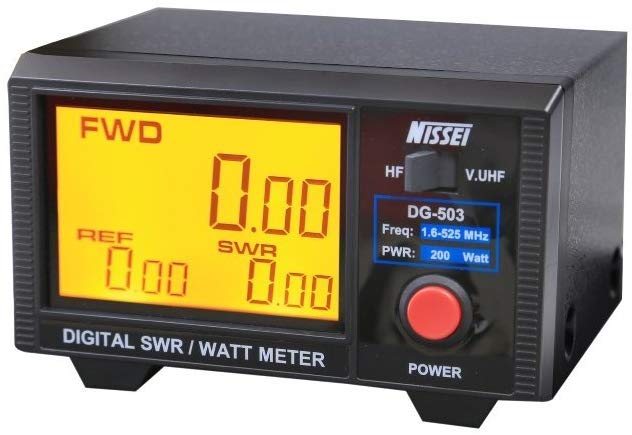

Nissei DG 503 SWR Meter HF/50/144/430 Mhz Digital Wattmeter

  • £112.49
Tax included.


  • The DG-503 works in the 1.6 to 60 MHz and 125 to 525 MHz bands, with a power of 0 to 200 W, measures and displays simultaneously on the large 3.5-inch backlit display direct power, reflected power and VSWR.

  • Features separate inputs and outputs with front selectable SO-239 connectors for the HF/6 m and 144/430 MHz band. Insertion attenuation less than 0.1dB.

  • Dimensions 140 x 84 x 122 mm.

  • Weight 750 grams.

  • Included in the package: user manual in Italian (English language not guaranteed).

  • Features separate inputs and outputs with front selectable SO-239 connectors for the HF/6 m and 144/430 MHz band.

  • Less than 0.1 dB insertion attenuation.

  • Dimensions 140 x 84 x 122 mm - Weight of 750g

  • Included in the package: user manual in Italian (English language not guaranteed) and 12 VDC power cable for the display backlight.
