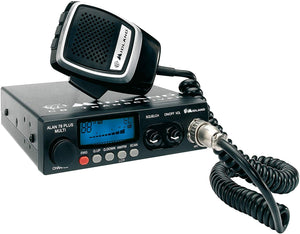

MIDLAND ALAN 78 PLUS 12V Multi Standard UK EU CB Radio

MIDLAND ALAN 78 PLUS 12V Multi Standard UK EU CB Radio

  • £89.95
Tax included.


MIDLAND ALAN 78 PLUS 12V Multi Standard UK EU CB Radio.

Midland 78 Plus Multi is a compact and uncomplicated CB with an abundance of great features but at an affordable price.

It runs on 12V and the ‘multi-band’ functionality means it can be used throughout the EU with all the various european bands including 40 channels UK and 40 Channels EU which are used in the UK.

It has Blue backlit display which clearly shows the channel, band, signal meter and RX/TX indicators and country allocation selected.

Features:

  • Compact 40 Channels AM/FM CB Transceiver

  • Multiband CB (40 UK/EU channels + various European bands)

  • Multifunction display with Blue backlit

  • Compact microphone with Up/Down buttons

  • External S.Meter jack

  • Fast channel selection Quick Up/Down

  • 6 Pin microphone connector

TECHNICAL SPECIFICATIONS

  • Frequency Range: 26.565 - 27.99125MHz

  • Output Power: 4W Max

  • Frequency Response: 300Hz/3KHz

  • Frequency Control: PLL

  • DC Input Voltage: 12.6V DC

  • Audio Distortion: Less than 8% @ 1KHz

  • Image Rejection: 65dB

  • Adjacent Channel Rejection: 65dB

  • Output Impedance: 50 ohms unbalanced

  • Current Drain: 1100mA

  • Dimensions: 180(L) x 35(H) x 140(W)mm

  • Weight: 1kg

What's Included:

  • Alan78M Plus Multi radio

  • Mounting bracket with fixing screws and side screws for set

  • Power lead with non-reversible quick disconnect and inline fuse

  • Screw-on Microphone clip

  • Instruction manual
