KPO DG-103 Digital HF SWR & Power Meter with Digital Display

  • £159.99
Tax included.


KPO DG-103 Digital HF SWR & Power Meter with Digital Display

digital RF meter with 1200 watts load capacity.
Based on the popular DG-503N.
Designed for operation between 1.6 and 60 MHz with an accuracy of 5% between 1.6 and 30 MHz and 30 - 60 MHz: between 10-15%.

Features:

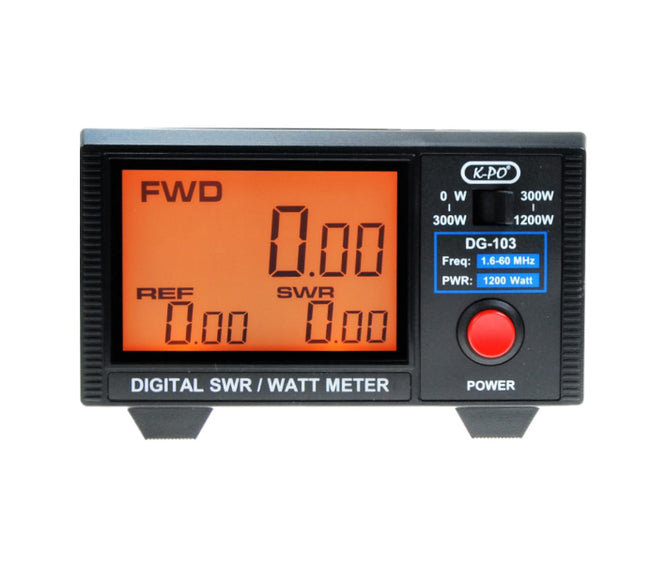

Large LCD display (3.5")
LCD backlight
Practical control layout for easy operation
Standing wave and power meter with digital display and two separate measuring ranges for RF 1.6-60 MHz.
Frequency range: 1.6 - 60 MHz
Power: 300 mW - 300 W / 300 - 1200 W
Minimum power for SWR measurement: 300 mW

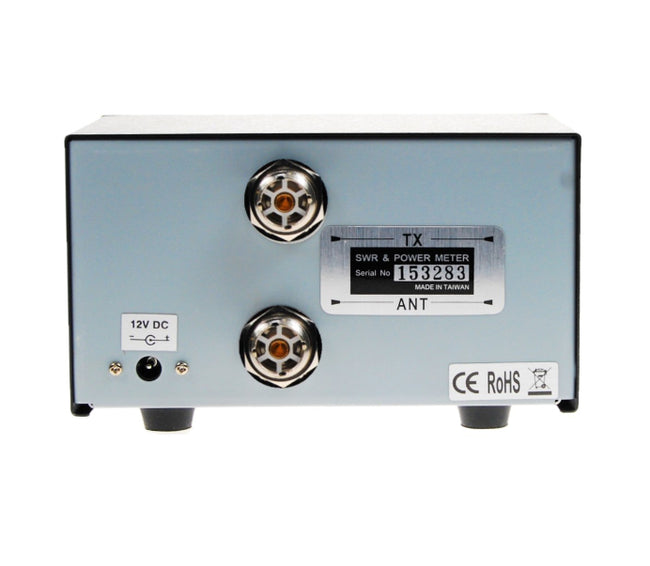

Connection sockets: 2 x PL socket
Impedance: 50 Ohm
Power supply: 12V DC
Dimensions: 140 x 84 x 122
Weight: approx. 590 g
Scope of delivery:

DG-103 SWR-/Watt-Meter
Power supply cable (for 12V DC)
Manual (English)
Weight: 0.7 kg
