Wimo X QUAD 70CM X-Quad Antenna for 70cm

Wimo X QUAD 70CM X-Quad Antenna for 70cm

  • £144.96
Tax included.


Wimo X QUAD 70CM X-Quad Antenna for 70cm

Frequency 430-434MHz

Elements per polarisation plane 18

Gain 12.8dBd

3dB angle hor (E) 36

Ver (H) 36

Front/Back ratio 21dB

Max power load 1000W

Windload at 160km/h 48N

Connector 2x N-type

Length 1270mm

Height 220mm

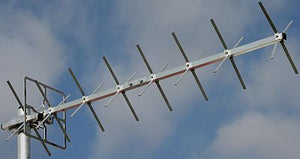

Weight 1.6kgThe X-Quad antenna is an improved design of the well know multi-element quads of the seventies. It is possible to switch polarisation - horizontal, vertical or circular. It is mounted end-on in front of mast.
