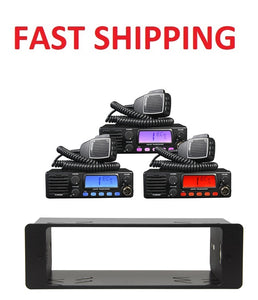

TTI TCB 900 CB Radio And TDP 5000 DIN

TTI TCB 900 CB Radio And TDP 5000 DIN

4W Output power

Front mounted speaker

Short Body

DIN size12/24V input

Multiple bands for usage in most EU countries

AM/FM Operation (subject to country regulation)

DSS (Dynamic Squelch System)

NB (Noise Blanker)

Tri Colour Backlighting (Blue/Red/Green)

Emergency Channel(9/19)

Keypad Lock function button

Microphone Gain

Attenuation

Scan function

Speaker Mute

Menu Mode

Power 12/24v DC Electrical

General Specification

Channel: 40 (See the frequency chart)

Frequency Range: 26.965 MHz äóñ 27.99125 MHz

Operating Mode: F3E (FM), A3E (AM)

Frequency Control: PLL SynthersizerFrequency Tolerance: 0.002%Operating Temperature Range: -10 to 55

Microphone: 6-pin plug in typeInput

Voltage: 12  24v DC

Size: 170 (w) x 94 (l) x 51 (h)

Weight: 978.5g

Antenna connector: SO-239

Duty Cycle 10%

4 Watts @ 13.8V DC

Modulation AM: 85% to 95%

Modulation FM: 1.8KHz  2.0KHz

Frequency Response: 300 Hz to 3000Hz

Output Impedance: 50ohms, Unbalanced

Harmonic Suppression: Less than 36dBm

Currant Drain: AM Full Mod. 1.6A MaxReceiver

Frequency Response: 300 to 2500Hz

Built-in Speaker: 8 Ohms, round

Squelch: Adjustable
