Albrecht AE 6690 Multi Standard CB Radio with CTCSS EU UK 27/81 + PNI ML 100 MAG
Albrecht AE 6690 Multi Standard CB Radio with CTCSS EU UK 27/81 + PNI ML 100 MAG

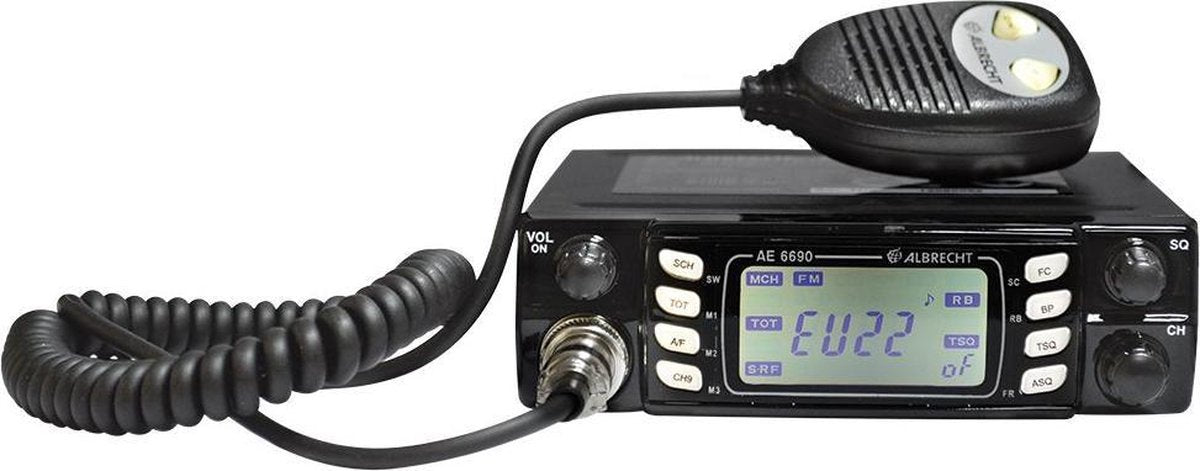

Albrecht AE 6690 Multi Standard CB Radio with CTCSS
Albrecht AE 6690 is an automatic squelch radio station with the possibility of activating CTCSS security codes. It has Roger Beep built-in and keyboard tones.
AE 6690 radio station has a 6-pin socket on the front for connecting the standard or amplifier type microphone or TNC modems.
The AE 6690 station offers you 1 programmable channel with Dual Watch and 3 selectable memories. AE 6690 has a scan module that can be used to monitor all channels in a row. To scan channels, press the SC key.
The CTCSS facility allows users of the same type of radio to talk to each other without any external interruption - the radio sits there quiet unless someone on the same channel with the same CTCSS code calls you.
AE 6690 radio station is of German quality, produced under the Albrecht brand, and complies with all European Union standards.
Multi Standard covering all EU bands
AM/FM in countries where permitted
Rotary channel change
Large LCD multi display
Illuminated buttons on microphone
Full band Scanning
Dual Watch
4 Memory channels
Priority Channel
ASQ Automatic Squelch
48 CTCSS codes
Roger Bleep
Key Bleep on/off
Frequency or Channel display
EEPROM Memory - does not go back to ch.9!!
Size: 137 x 130 x 40mm

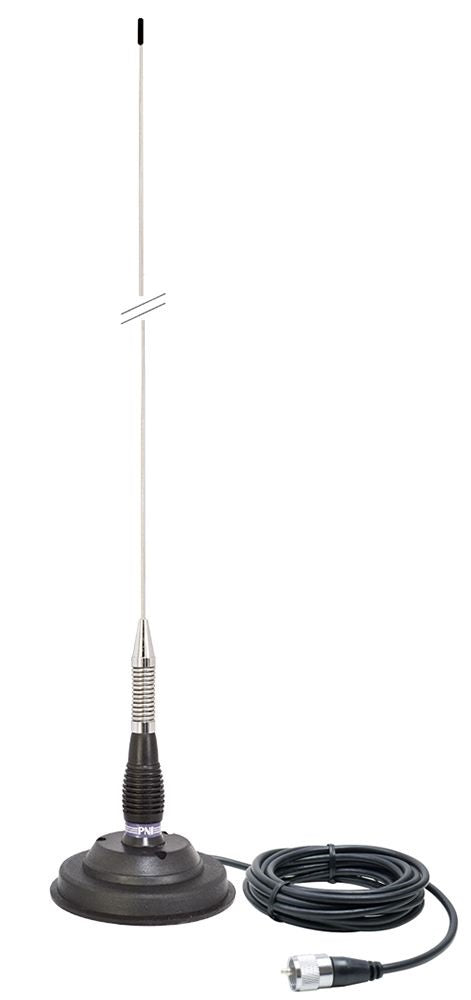

PNI ML100 antenna length 100 cm, 26-30MHz, 250W
High performance CB PNI ML100 antenna
The performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuously, impedance 50 Ohms, stainless steel etc.
Antenna length
Antenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. PNI antenna ML100 has a length of 110 cm (magnetic base included).
Magnetic base
The magnetic base 120 / PL in the package is provided with a cable of 4 m, sufficient to place the antenna on the dome, has a diameter of 125 mm and a strong magnet that offers the antenna stability even at high speeds.
