YAESU MUSEN FRG-7 BCL Shortwave Radio Communications Receiver
Tax included.
YAESU MUSEN FRG-7 BCL Shortwave Radio Communications Receiver
JUST BEEN SERVICED ETC BY JAMES @ THE SHACK.
Very clean for the age.
GENERAL
Type:

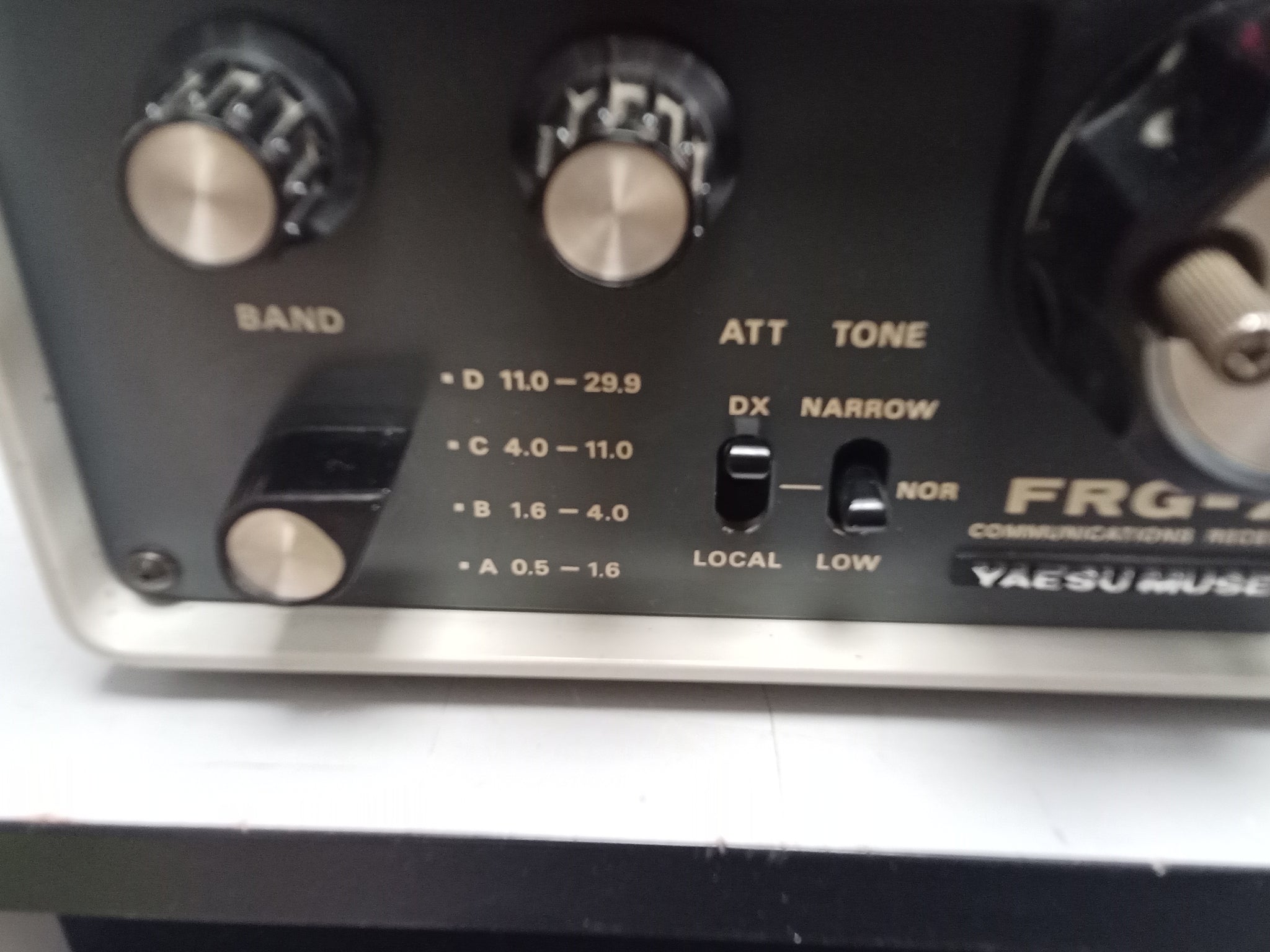

HF receiver Frequency range:0.5-29.9 MHz in four bands
A - 0.5-1.6 MHz
B - 1.6-4.0 MHz
C - 4.0-11.0 MHz
D - 11.0-29.9 MHz
A - 0.5-1.6 MHz
B - 1.6-4.0 MHz
C - 4.0-11.0 MHz
D - 11.0-29.9 MHz
Tuning steps: Analog / continuous
Frequency stability: Less than ±500 Hz at any 30 minute period after warmup Mode: AM / SSB / CW
Channels / memory management: None
Power supply: Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC (Fixed power cord)
or 13.5 VDC (Barrel connector, centre positive)
Battery option (Eight R20 / D)
or 13.5 VDC (Barrel connector, centre positive)
Battery option (Eight R20 / D)
Current drain / power consumption:14 VA @ mains
Antenna impedance / connector: Below 1.6 MHz: Hi-Z / Spring terminals
Above 1.6 MHz: 50 ohms / SO-239
Above 1.6 MHz: 50 ohms / SO-239
Dimensions (W*H*D):340*153*285 mm (13.4*6.02*11.22")
Weight: 7 Kg (15.43 lb)
Other features: ANL. DX/Local switch. Tone switch.
