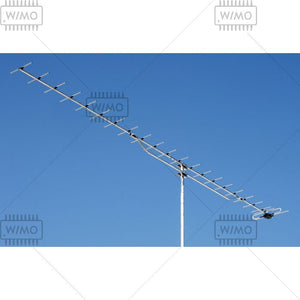

Wimo WY 7023 70 cm 23 Element Yagi Beam

Type 70cm Yagi

Elements 23

Gain (over dipole) 15

Front/Back ratio >20

SWR at amateur

frequencies <1,6 HPBW

vertical (H layer) 28 HPBW horizontal (E layer) 26

Max. power load standard dipole 200 Max. power load high power dipole 800 Stacking distance hor. 1,5 vert.

1,5 Length 3,1 Width 0,34 Height

Max. mast diameter 65

Weight 2,4

Wind Load at 80 km/h 35 at 160 km/h 140

Phasing harness for circular polarisation

Impedance 50
