SHARMAN MULTICOM AR-600XL VHF/UHF ANTENNA ROTATOR

SHARMAN MULTICOM AR-600XL VHF/UHF ANTENNA ROTATOR.

The SHARMAN AR-600 VHF/UHF Antenna Rotator with Base Control unit and Infa Red remote control is designed for use with the smaller antennas

Typical suitable antennas are smaller 2m and 70cm beams or tv antennas

The AR-600 has programmable antenna controller with Infra Red remote-control.

AR-600 remembers up to 12 antenna directions with back up

Control over all functions is either with the infa red remote control or control unit. The control unit displays location chosen and relative position.

Rugged Light-duty rotator is built in a weather-proof one piece cast aluminum housing. Has precision metal gears and steel thrust bearings for durability.

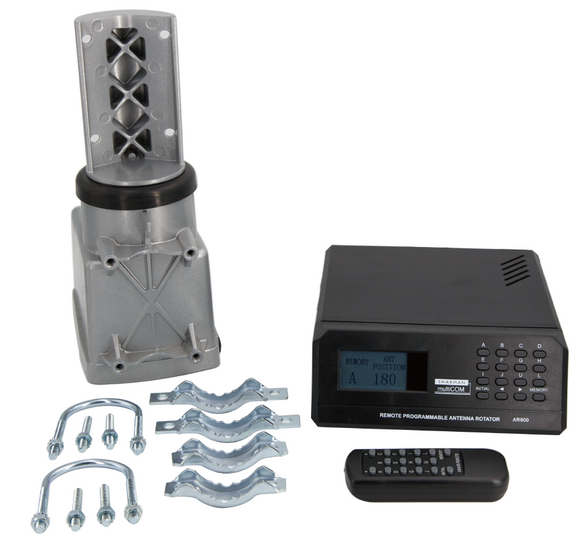

Supplied with rotator, controller, 3-device universal remote, mount clamps and hardware.

Specifications

Mast size : 28 to 44 mm (1.1/8" - 1.3/4")

Rotation time : approx. 74 sec.

Rotation torque : 21.5 Nm

Weight : 4.2kg

Control unit : with digital direction indicator

Operating Voltage 220-230VAC

Requires 3-wire control cable (not included)

NOTE: Not suitable for larger 6m beams, larger VHF beams or HF Yagis
