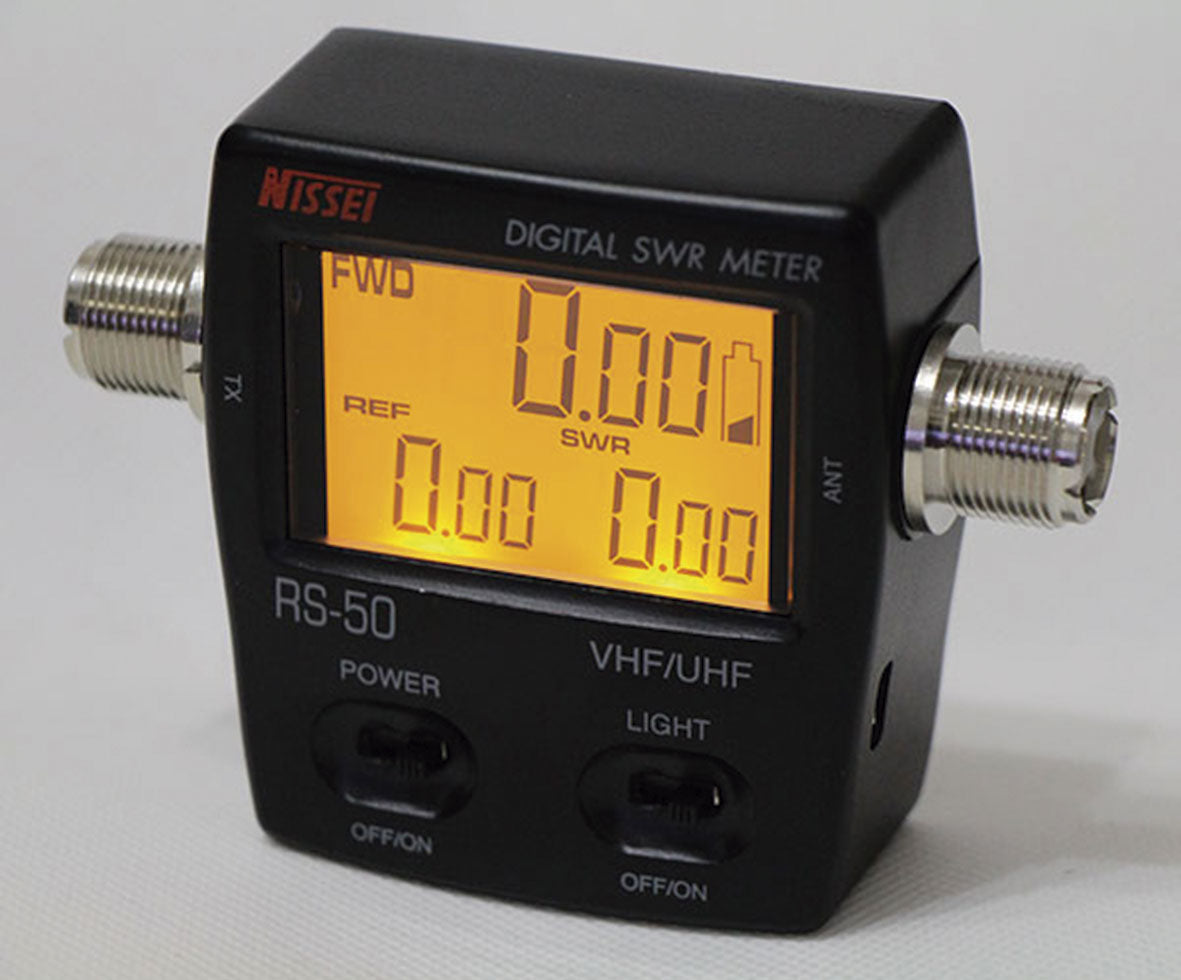

Nissei RS 50 VHF UHF Digital SWR/Wattmeter 125-525MHz 2m 70cm

Nissei RS 50 VHF UHF Digital SWR/Wattmeter 125-525MHz 2m 70cm

Frequency range: 125-525 Mhz
Center calibrated: 145Mhz(VHF) 435Mhz(UHF)
Power range:0-120W +/- 5%
Testing functions: Fwd/Rev Power, SWR
Insertion loss: 0.3dB or lower
Impedance: 50 ohm
Power source: battery "AAA" or Micro USB port
Connector: "M" type or "N" type
Dimension: 70W x 78H x 30D mm
Net Weight: 220g (no batteries)

micro-USB / USB cable to be connected to the PC is supplied to externally power the instrument. The batteries (2 x AAA)

Measurement:
1, Apply output of transceiver to "TX" and antenna or load to "ANT".
2."POWER" on for ready to use.
3.LCD display show simultaneously "Fwd/Rev Power and SWR".
4.For back-light, please switch "LIGHT" to "ON".
No function in 30 seconds, the backlight will automatically off.
Once PTT launched, the backlight will be back.
