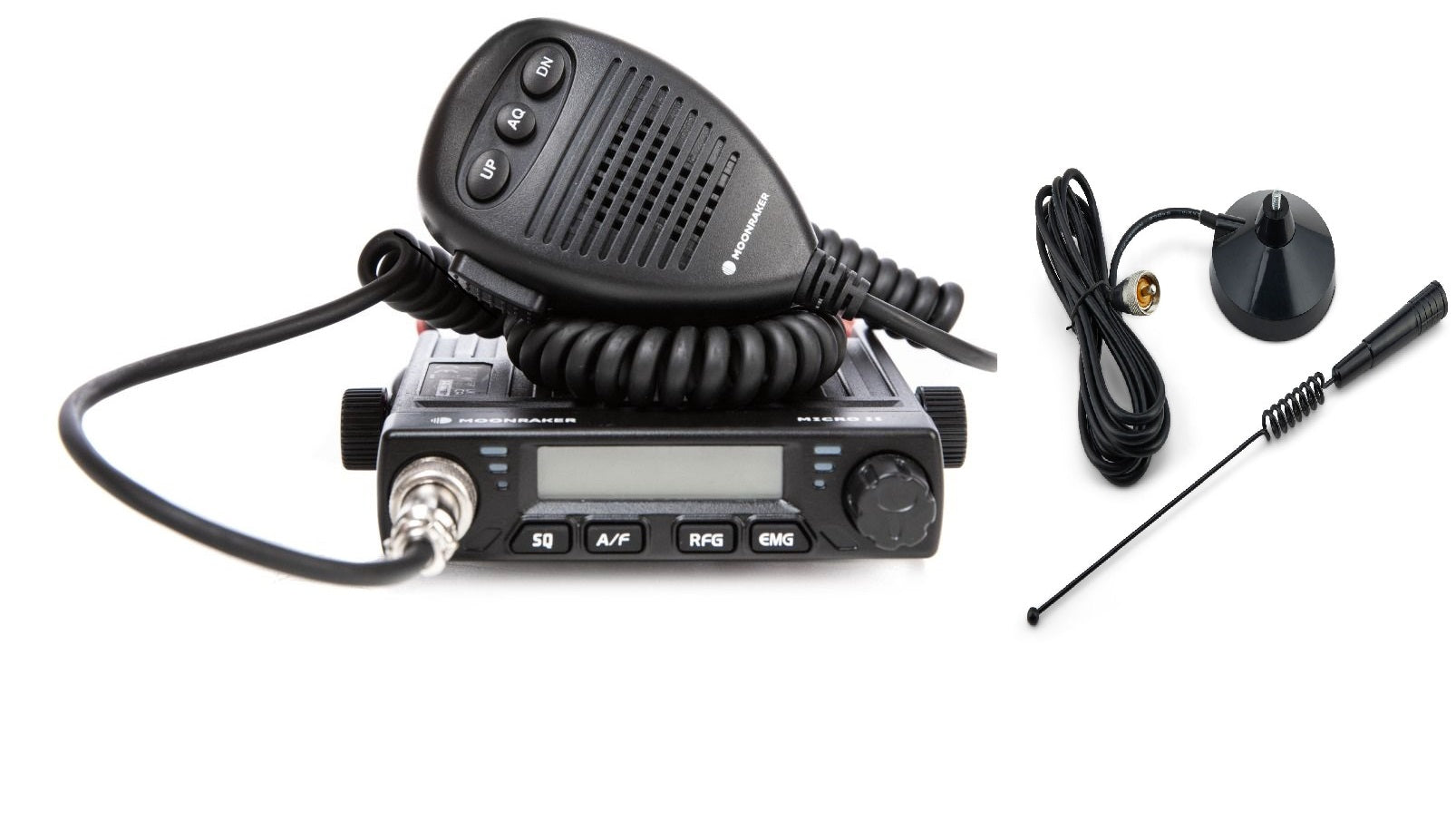

Moonraker MICRO II Multi standard CB Transceiver UK 40 EU PLUS Micro Antenna

Moonraker MICRO II Multi standard CB Transceiver UK 40 EU PLUS Micro Antenna

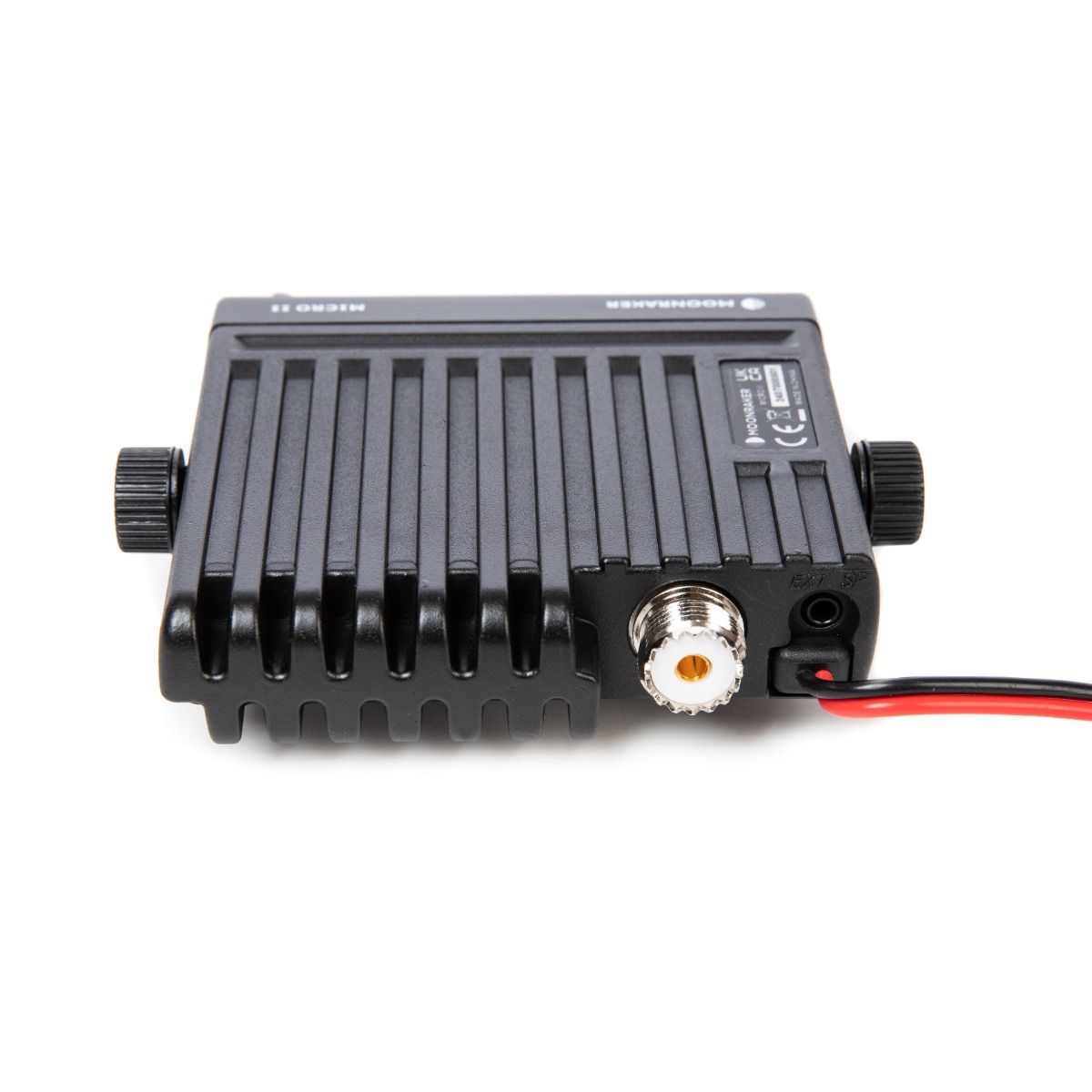

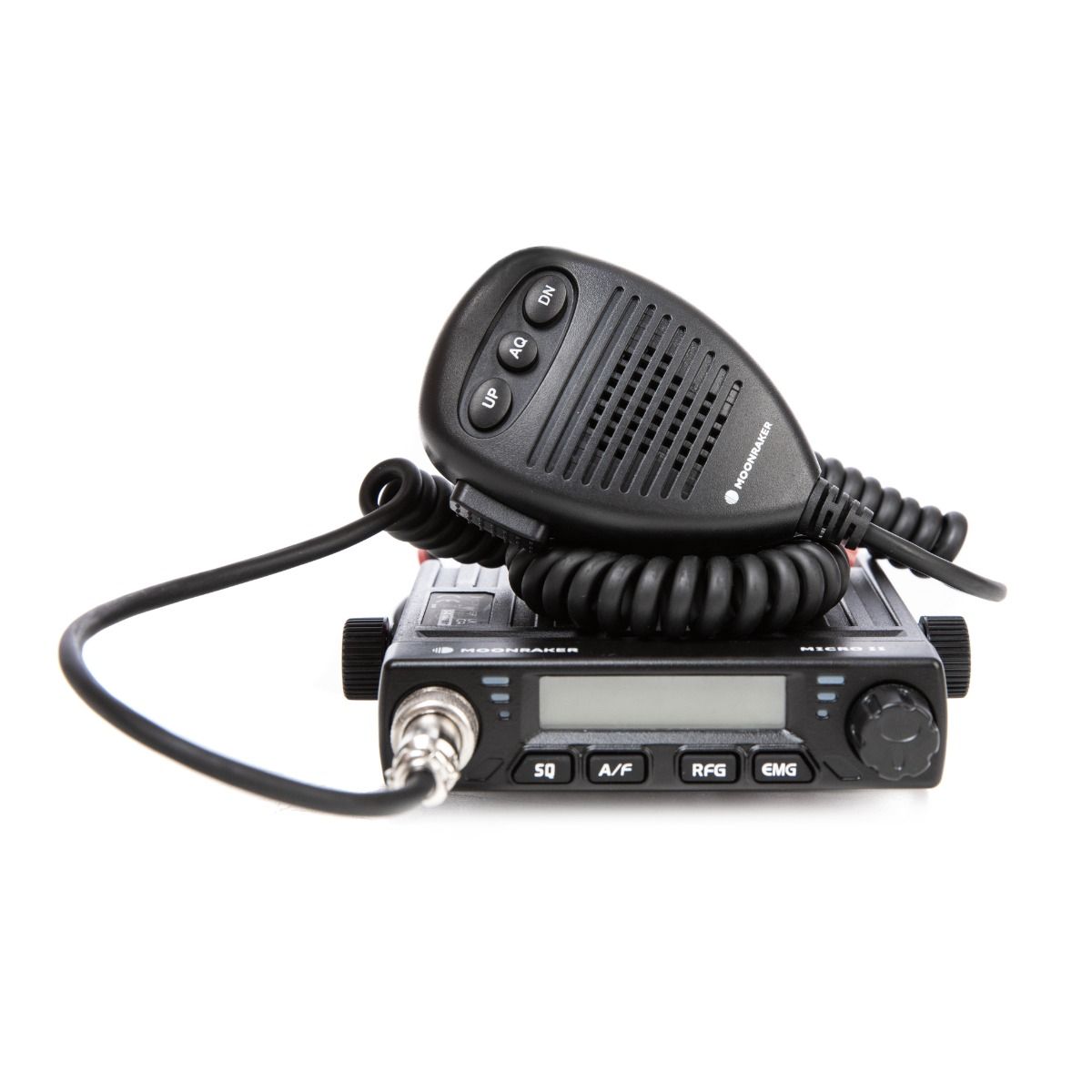

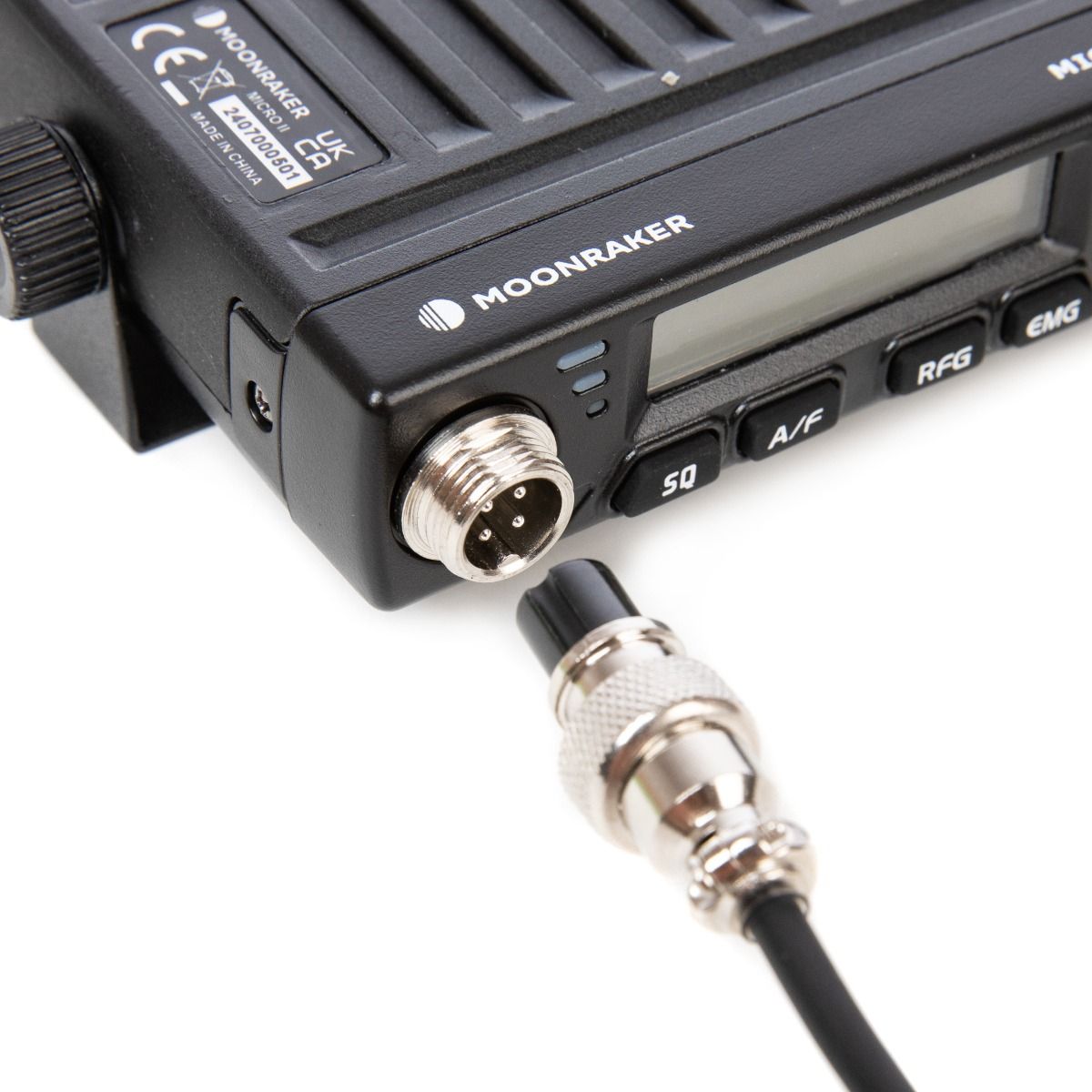

Moonraker MICRO II Multi standard CB Transceiver UK 40 EU

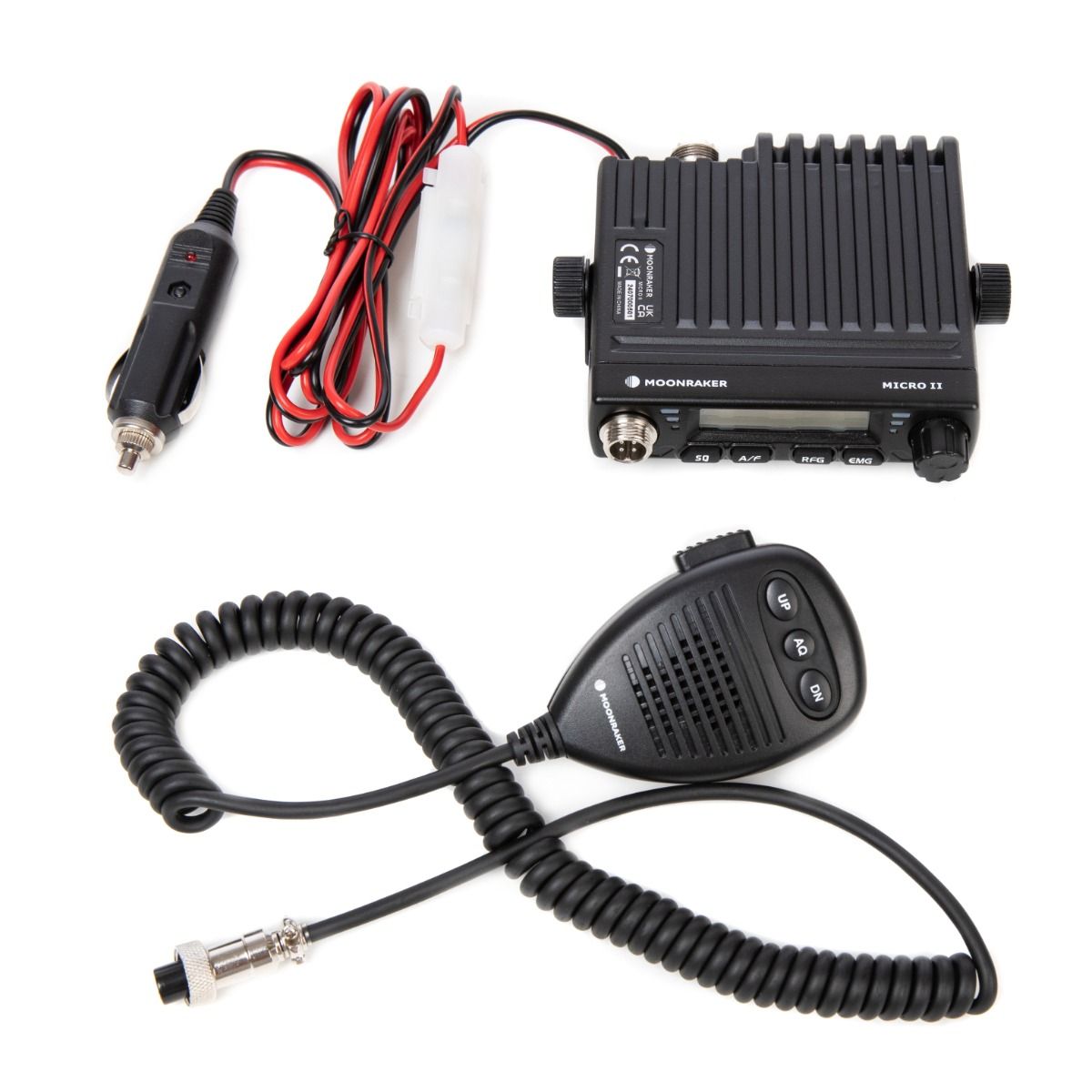

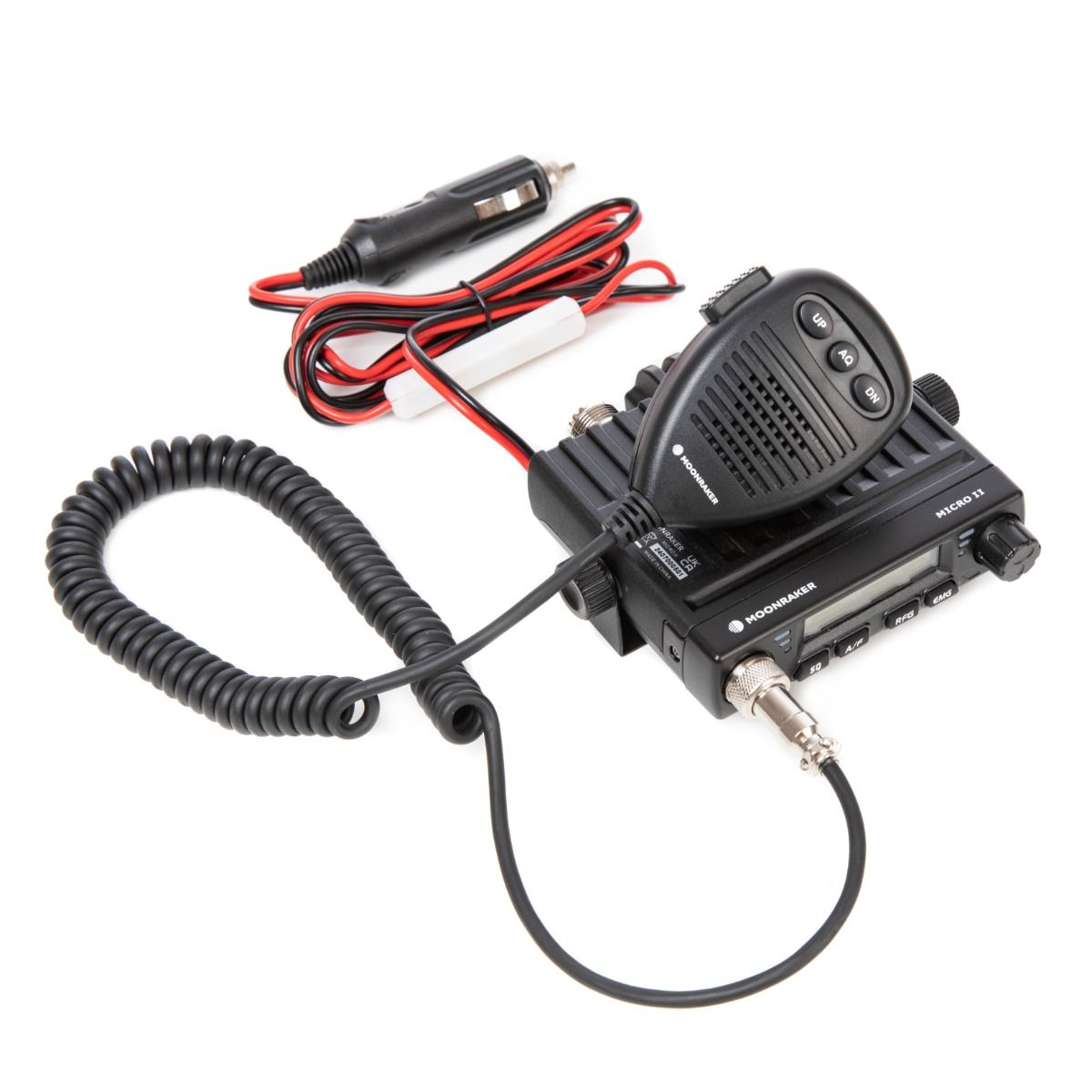

A great Micro sized CB radio, complete ready to go with cigar power lead for 12v supply, microphone and bracket all at a budget price!

Specifications

• Modulation Mode: AM/FM

• Frequency Range: 26.330 to 27.99125 MHz (Multistranded)

• Frequency Set: UK 40ch 27.60125 to 27.99125 MHz

• Frequency Control: P.L.L.

• Frequency Tolerance: ±5.0ppm

• Operating Temperature: -20°/+50°C

• DC Input Voltage: 13.2V

• Dimensions: H-104mm × W-108mm × D-25mm

• Weight: 416g

• Antenna Connector: UHF,SO-239

• Current drain Transmit: 2A MAX /Receive: Squelched 0.3A /VOL Max: 0.8A

Transmitter

• Power Output: 4 Watt AM/FM

• Transmission Interference: inferior to 4nW (-54dbm)

• Frequency Response: 300-3000Hz

• Modulation Signal Distortion: inferior to 5% Output

• Impedance: 50 ohms

Receiver

• Sensitivity: Less than 1uV for 10dB(S+N)/N

• Image Rejection: 70dB

• Adjacent Channel Rejection: 60dB

• IF Frequencies: 1st 10.695MHz 2nd 455KHz

• AGC: Less than 10dB change in audio

• Squelch: Output for inputs from 10 to 50000uV /Less than 1uV

• Audio Output Power: 1 Watt

• Frequency Response: 300-3000Hz

• ASQ/SQ function

• EMG channel CH9/19

• Length: 35cm

• VSWR: 1.5:1 or better

• Power: 100 Watts

• Includes: 7cm magnetic mount, 4 metres coax & PL259 plug fitted

• • Includes: MICRO CB ANTENNA

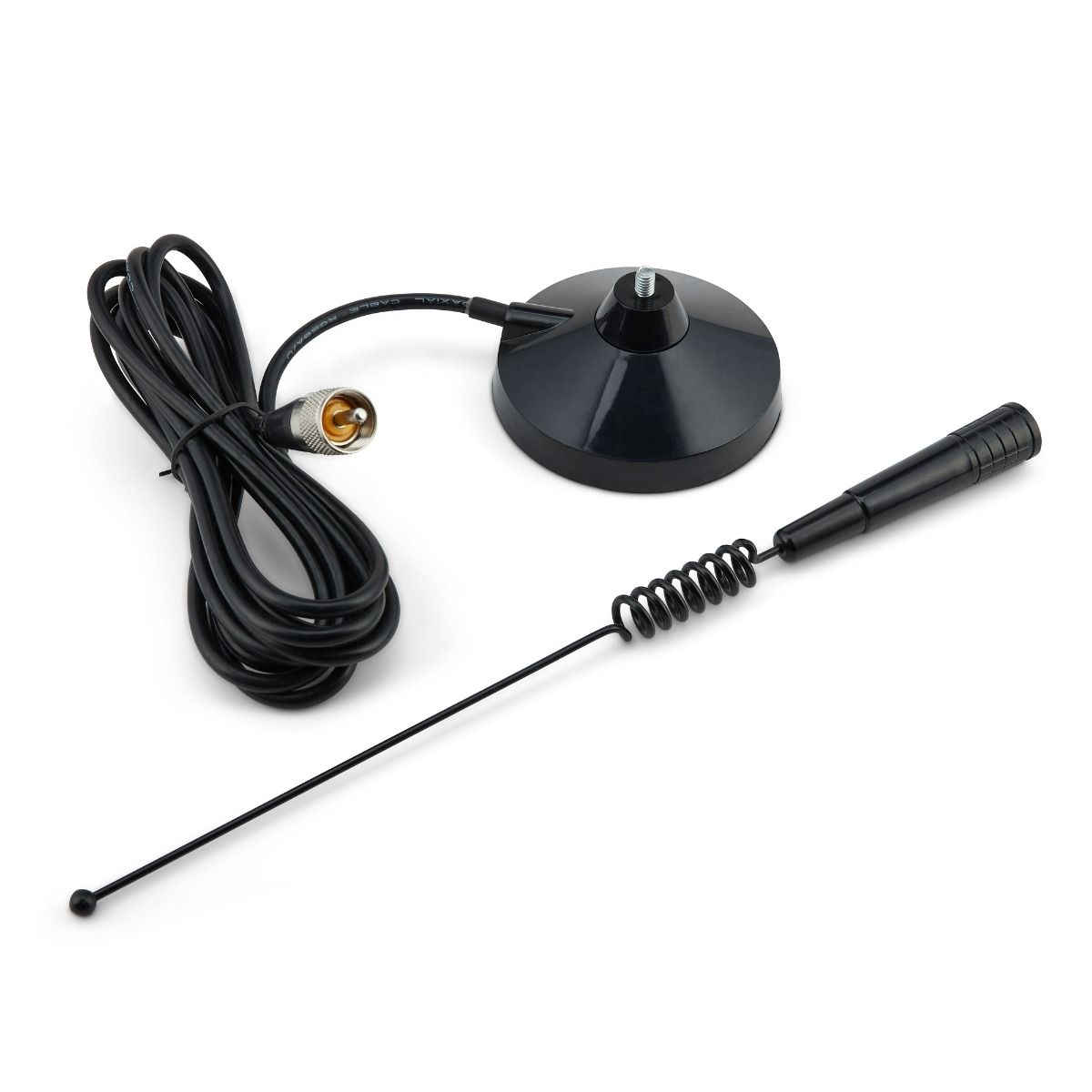

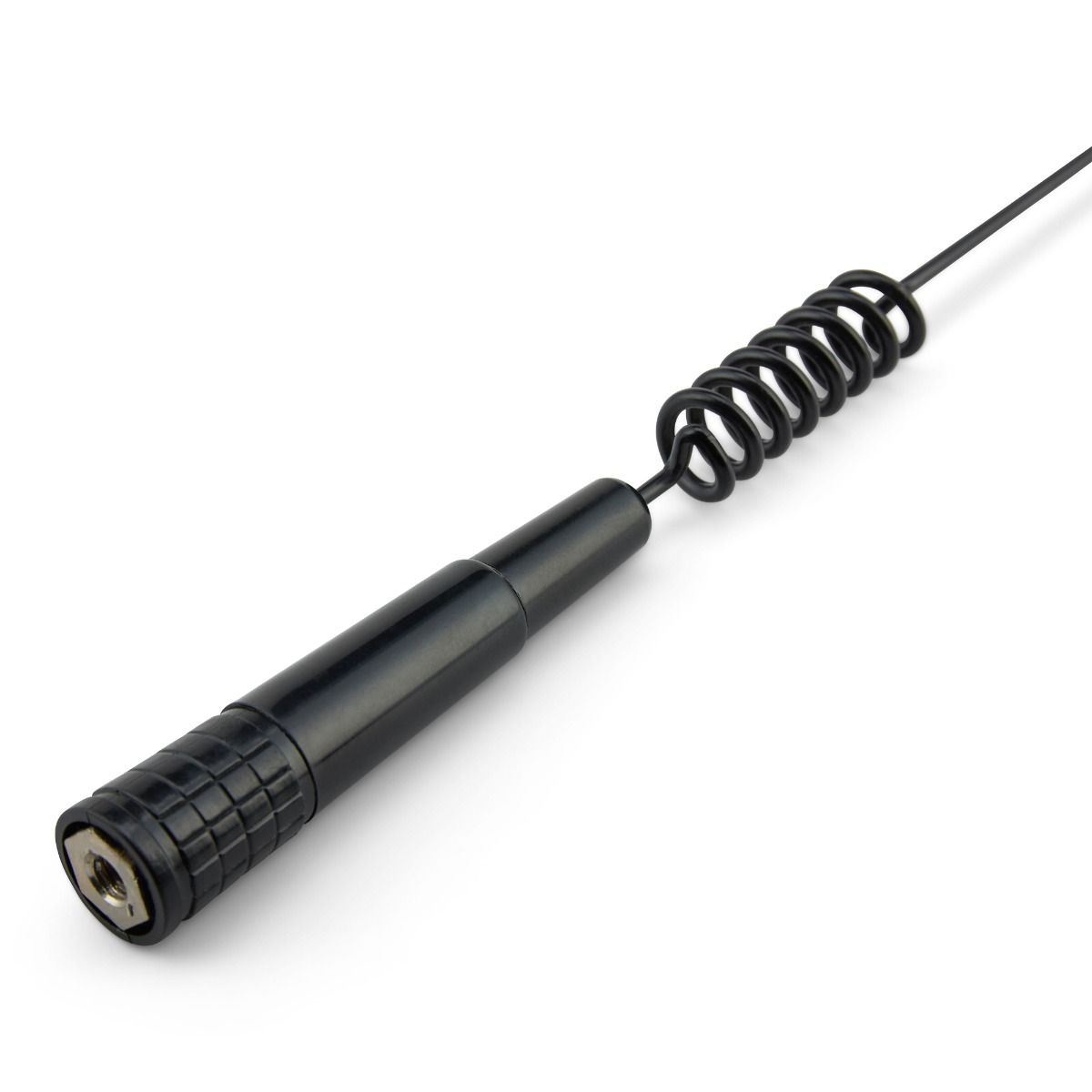

    Compact and neat CB micro antenna kit ready to plug & play

    Key Features/Specifications:

    • Type: Centre loaded

    • Frequency: 27-28MHz
