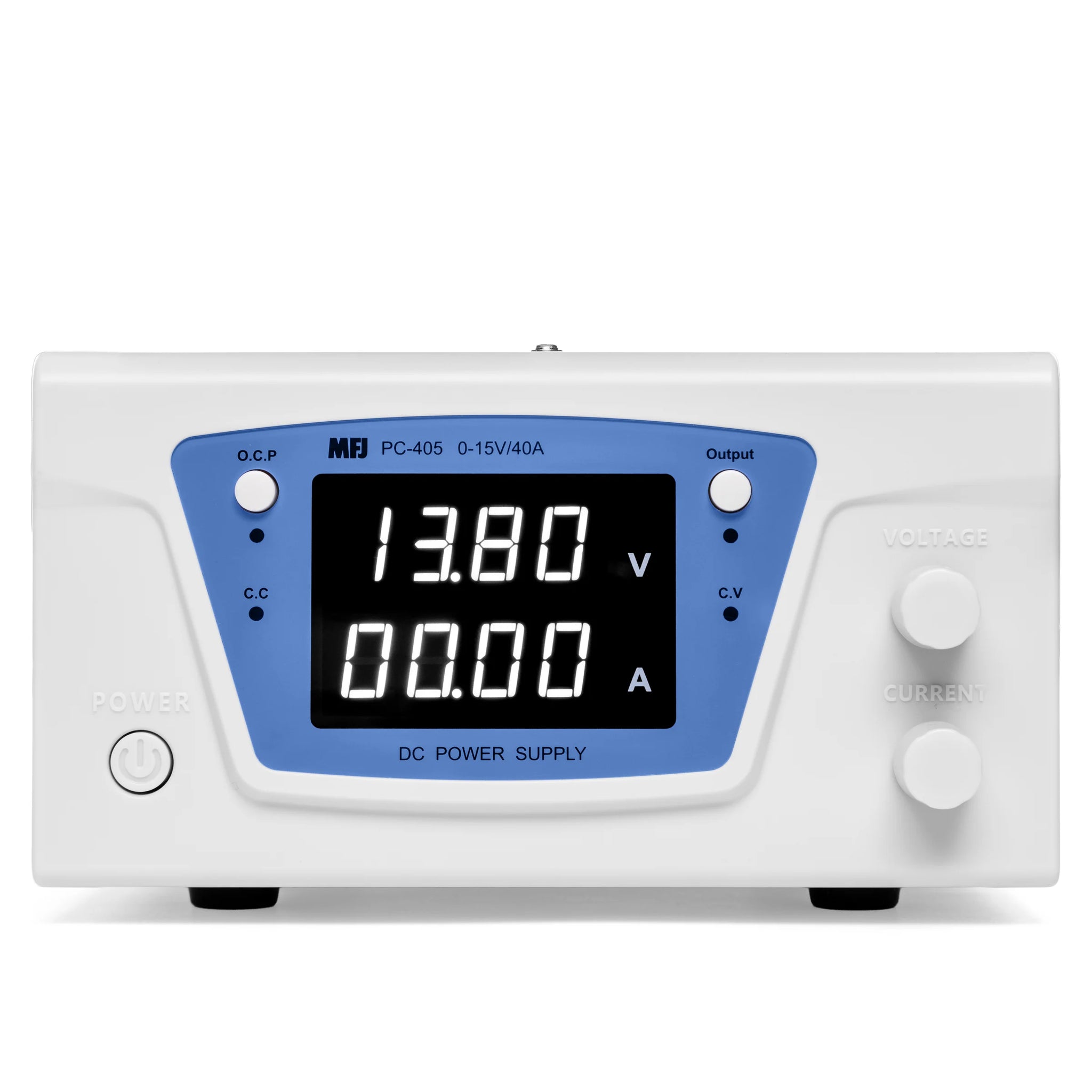

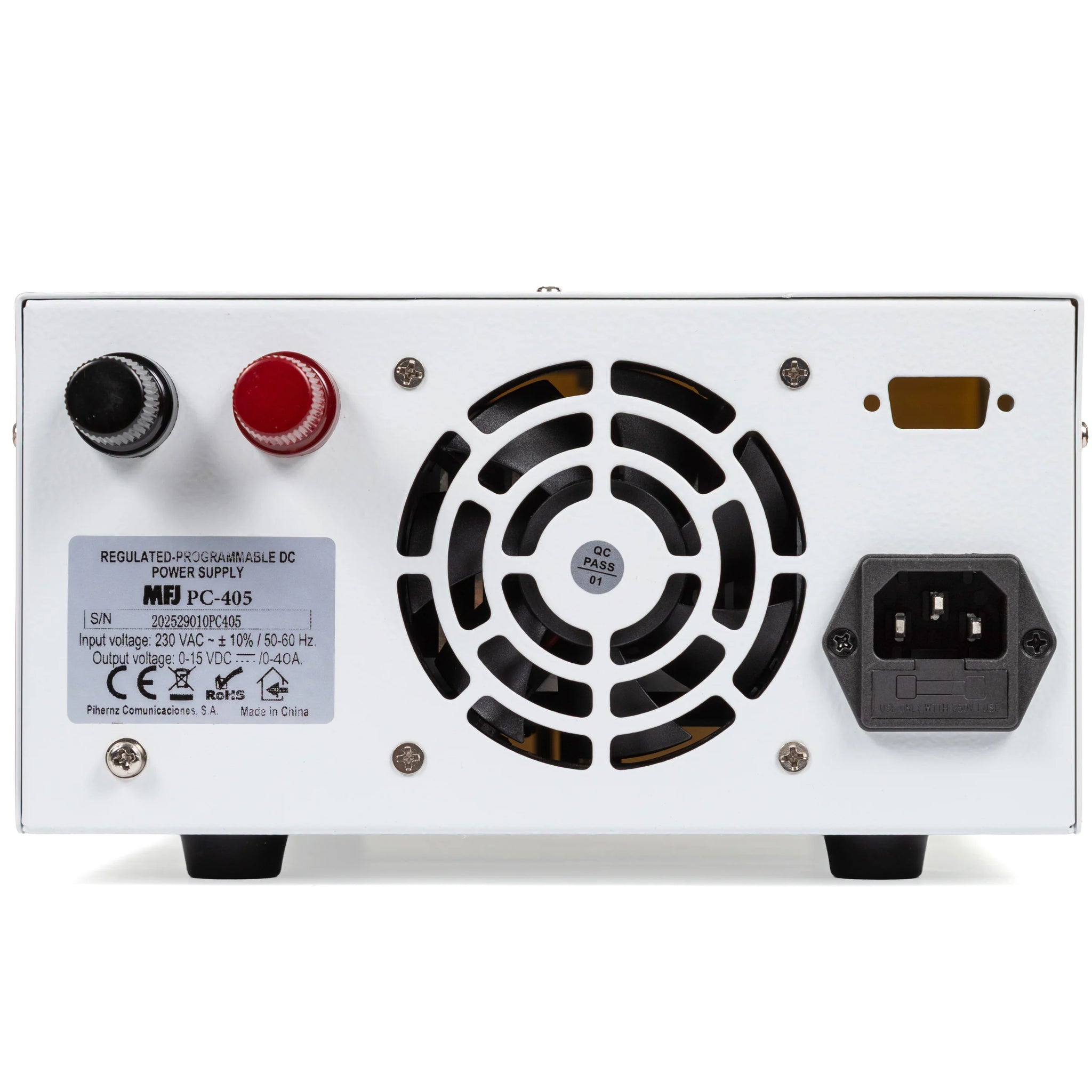

MFJ PC-405 is an adjustable DC power supply from 0 to 15VDC with an adjustable output current from 0 to 40A. Power adjustments can be made with fine precision.

TECHNICAL SPECIFICATIONS

• Input voltage 230 VAC ±10 % / 50-60 Hz

• Output voltage 0-15 VDC

• Output current 0-40 A

• Output current stability ≤5 % +3 mA

• Load stability ≤5 % +3 mA

• Ripple Noise ≤5 % AP-P

• Operating temperature 0 to 40 ºC

• Storage temperature -10 to 70 ºC

• Working environment In door use only

• Display White 4-digit digital tube

• Display resolution 0.01 V / 0.01 A

• Dimensions (LxWxH) 275 x 200 x 105 mm

• Weight 3 kg

CONTENT

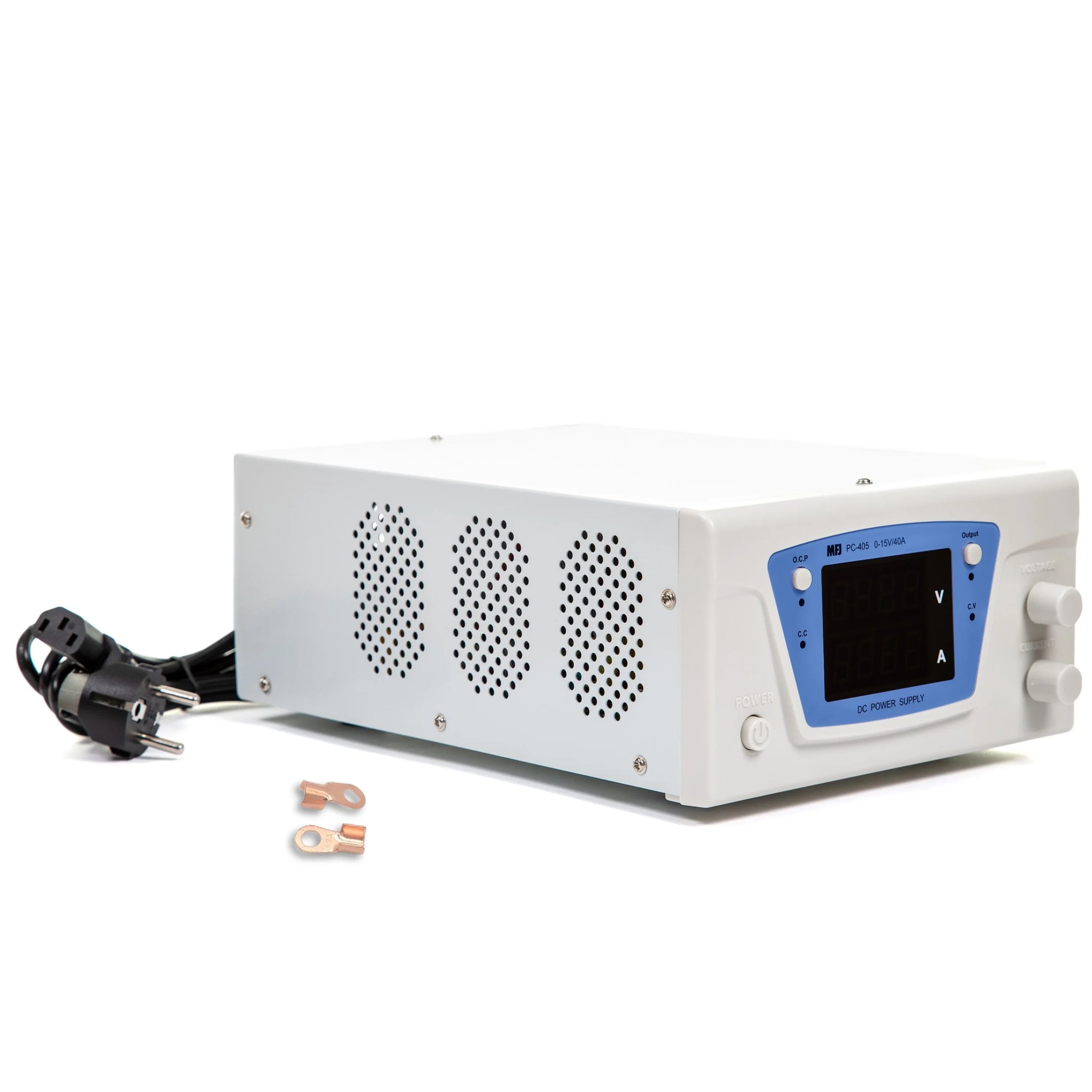

• DC Power Supply

• AC power cord with European socket & UK adapter

• Copper wiring terminals

• Instruction Manual
