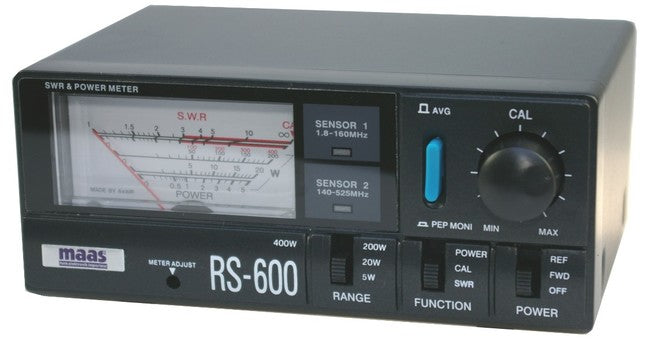

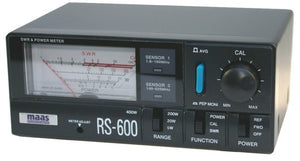

Maas RS-600 SWR & PWR Meter

Maas RS-600 SWR & PWR Meter

  • £72.95
Tax included.

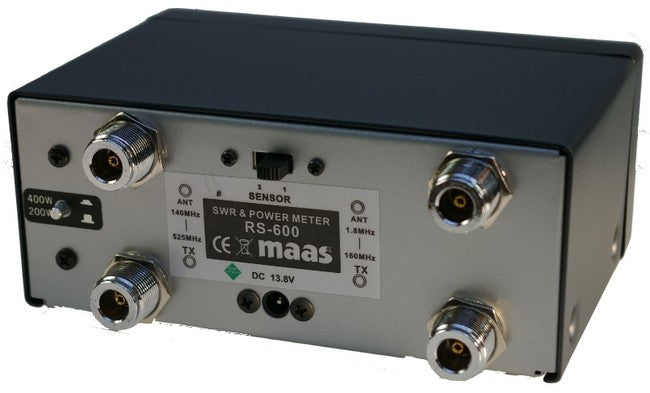

The RS-600 has two separate entrances for different frequency ranges.

Technical Data

Frequency range 1.8 - 160 MHz / 140 - 525 MHz

Performance 400 W (switchable 5 W / 20 W / 200 / 400 W)
Minimum power for SWR measurement: 0.5 W
Accuracy @ 5W Range: +/-5% @ 5W Range: + / -5%
@ 20W Range: +/-7,5% @ 20W Range: + / -7.5%
@ 200W Range: +/-10% @ 200W Range: + / -10%
@ 400W Range: +/-12,5% @ 400W Range: + / -12.5%

illuminated meter (6.7 x 3.3 cm)
can be adjusted (0 adjustment)
AVG key
13,8V DC Power supply for backlight: 13.8 V DC
DC cable included

Connections N-female
Insertion loss: 0.2 dB

Dimensions (W x H x D in mm) 152 x 68 x 102
