ANYTONE JOPIX DORIS CB RADIO FRONT SPEAKER+ ARTICULATED SUCKER MOUNT

ANYTONE JOPIX DORIS CB RADIO FRONT SPEAKER+ ARTICULATED SUCKER MOUNT

1.Hold [PUSH]+[CH] when power on radio，release the
2.Turn channel knob to choose working mode.
3.Repower on radio.
CB1：26.565-
27.99125MHz
Display
BAND CH Range Mode Power
EU 40CH 26.965-27.405MHz AM/FM FM/AM：
4W
CE 40CH 26.965-27.405MHz FM M
OD
E:
U U:40CH 26.965-27.405MHz AM/FM CB1
MODE
UK:40C
H
27.60125-
27.99125MHz
FM
PL 40CH 26.960-27.400MHz AM/FM
For UK press A/F again in U mode.

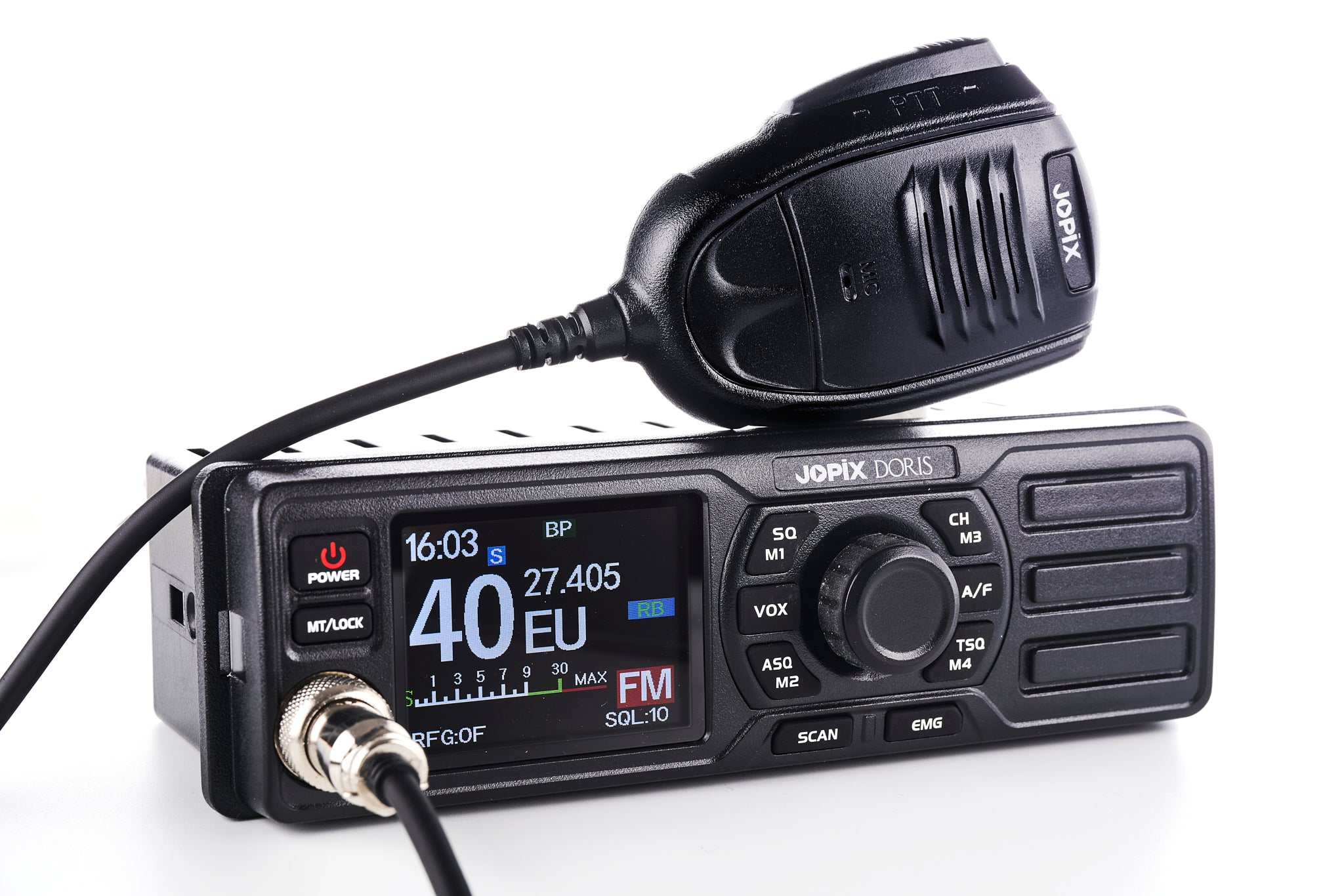

The Jopix Doris is a European multi-standard FM/AM CB (citizens band) radio with a large colour screen and front speaker, ultra-small in size with only 6 cm depth, suitable for placement in almost any part of a vehicle (car, truck, tractor).

The Jopix Doris offers us multiple functions such as double watch, which allows monitoring 2 channels at the same time, the SCAN function, with different scanning modes, the VOX function for voice-activated transmission, the Talk Back function, which allows listening self over the speaker during transmission, among other prominent features and functions.

The Jopix Doris transmitter has several installation possibilities:

• In the 1 DIN size car radio hole

• With the included mounting bracket with screws

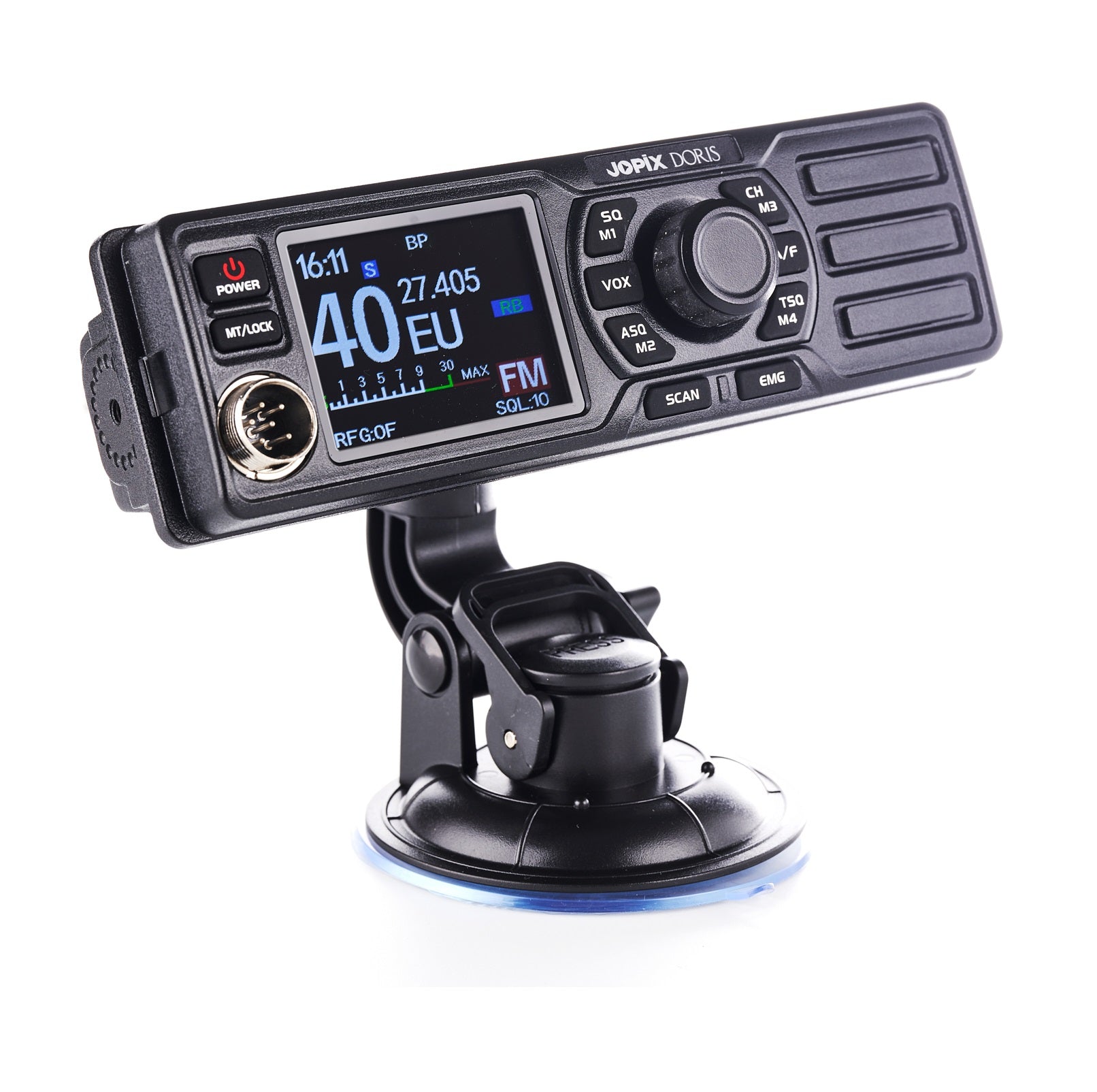

• With the sucker mount

MAIN FEATURES

• Transmission power: 4 W (FM/AM)

• Power supply: 12/24 V.C.D

• Front speaker

• DIN adapter for installation

• 40 channels

• ASQ

• Channel scan

• Direct 9/19 channels

• Channel lock

• CTCSS/DCS

• Scan function

• VOX function

• Double watch function

• TOT function

• Large LCD display of different colours

• Selectable microphone type: dynamic/electronic

• Microphone gain and sensitivity adjustments

• Noise reduction in RX

• SWR protection

• Emergency channel

• Roger beep

• Weight: 540 g

• Measures: 190 x 70 x 60 mm

TECHNICAL SPECIFICATIONS

GENERAL:

• Frequency range: CB-27 Citizen´s band (According the

  multistandard mode programmed)

• Modulation type: AM/FM

• Channel separation: 10 kHz

• Frequency stability: ±5 ppm

• Power supply: 12/24 VDC

• Frequency control: PLL synthesizer

• Operating temperature range: -20 ºC to +55 ºC

• Antenna impedance: 50 Ω

TRANSMITTER:

• Transmission output power: 4 W (AM/FM)

• Emission type: F3E (FM), A3E (AM)

• Frequency response: 300-3000 Hz

• Spurious emissions: ≤4 nW (-54 dBm)

• Distortion: <5 %

• Current: 3 A

RECEIVER:

• Sensitivity: ≤1.0 μV for 10 dB (S+N)/N

• Image frequency rejection: 70 dB

• Adjacent channel selectivity: 60 dB

• IF frequencies 1st: 10.695 MHz / 2nd: 455 kHz

• Automatic gain control (AGC): <10 dB

• Squelch: <1.0 μV

• Frequency response: 300 to 3000 Hz

• Audio output power: 1 W

• Current: 0.8 A (max. volume)

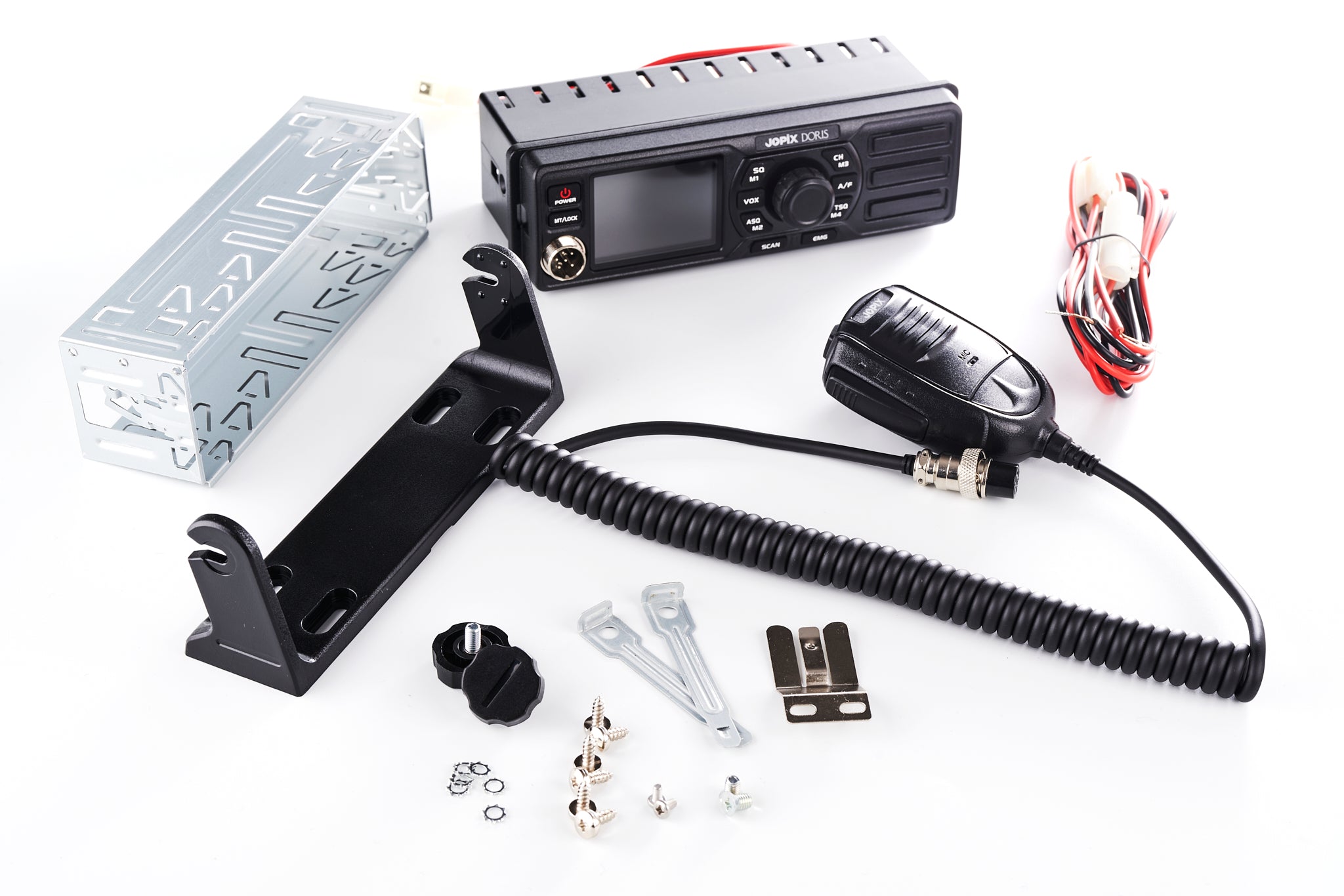

CONTENT

• Mobile radio

• Microphone

• Power cord

• DIN mounting bracket for transmitter with screws

• Shelf support with screws

• Microphone stand with screws

• Instruction manual (Spanish/English/French/Portuguese)
