Jopix CB-80 Handheld CB 80 Channel Multi Transceiver Radio

Jopix CB-80 Handheld CB 80 Channel Multi Transceiver Radio

The Jopix CB-80 is a portable CB radio with advanced features and robust construction that allows communication in AM and FM modes across the entire CB 27 MHz frequency range. Being a multi-standard walkie, it can operate on several frequency bands used in different countries in Europe.

The Jopix CB-80 has programmable function buttons directly from the menu, from which we can also quickly access important settings such as the squelch level, the VOX levels, the keyboard lock, the channel name, among others, which, together with the monitor function, will allow us to listen to the current channel without transmitting. Additional settings are possible via the available programming software NOT INC.

The CB-80 from Jopix is a versatile device for travelling and commuting, and for work, as it allows you to communicate quickly and effectively with other vehicles that have a CB radio installed. Thanks to its rechargeable 2,600 mAh Li-Ion battery, the Jopix CB-80 offers long work cycles.

GENERAL FEATURES

• CB-27 FM/AM MULTI-STANDARD PORTABLE TRANSCEIVER (UK, CE, EU, IN, DE, I2, PL)

• LCD screen with backlight

• Up to 80 memory channels (multi-standard mode)

• High capacity battery: 2,600 mAh

• Battery saving function

• Robust construction

• Compact size

• VOX function

• Channel name and channel memory

• Squelch level adjustment (0-9 levels)

• Timer to transmit (TOT)

• Flashlight function

• 3 year warranty

JOPIX CB-80 SPECIFIC FUNCTIONS

• DTMF encoding and decoding

• Roger Beep function

• Voice messages in English

• Battery warning low

• Battery status indicator

• Multi-scan mode (TO/CO/SE)

• Ability to select display mode: frequency/channel/channel name

• Customizable top button and side keys

• Flashlight

• 2-pin Kenwood type connector

• TOT function

• Channel lockout

• Keypad lockout (auto/manual)

• Programming via PC (Windows)

SPECIFICATIONS

GENERAL

• Frequency Range: 26.565 MHz – 27.99125 MHz (Depending on the programmed multi-standard mode

• Memory channels: Up to 80 channels (Depending on the programmed multi-standard mode)

• Modulation type: A3E/F3E (AM/FM)

• Operating temperature: -20 º + 60ºC

• Lithium-Ion battery 7.V/2600 mAh

• Antenna impedance: 50 Ohm

• Dimensions: 120 x 61, x 41 mm (without antenna)

• Weight: 290 g

RECEIVER

• Sensitivity: ≤6 dBµV (12 dB/SINAD)

• Adjacent channel selectivity: ≥ 60 dB

• Intermodulation: ≥ 50 dB

• Intermediate frequencies: 10.7 MHz (1st IF) / 450 kHz (2nd IF)

• Spurious radiation: ≤ 47 dBm

TRANSMITTER

• Maximum transmission power: 4W

• Frequency error: ± 0.6 KHz

• Maximum deviation: ±2 KHz

• Adjacent channel power: ≤ 20 µW

• Spurious emissions: ≤ 4 nW

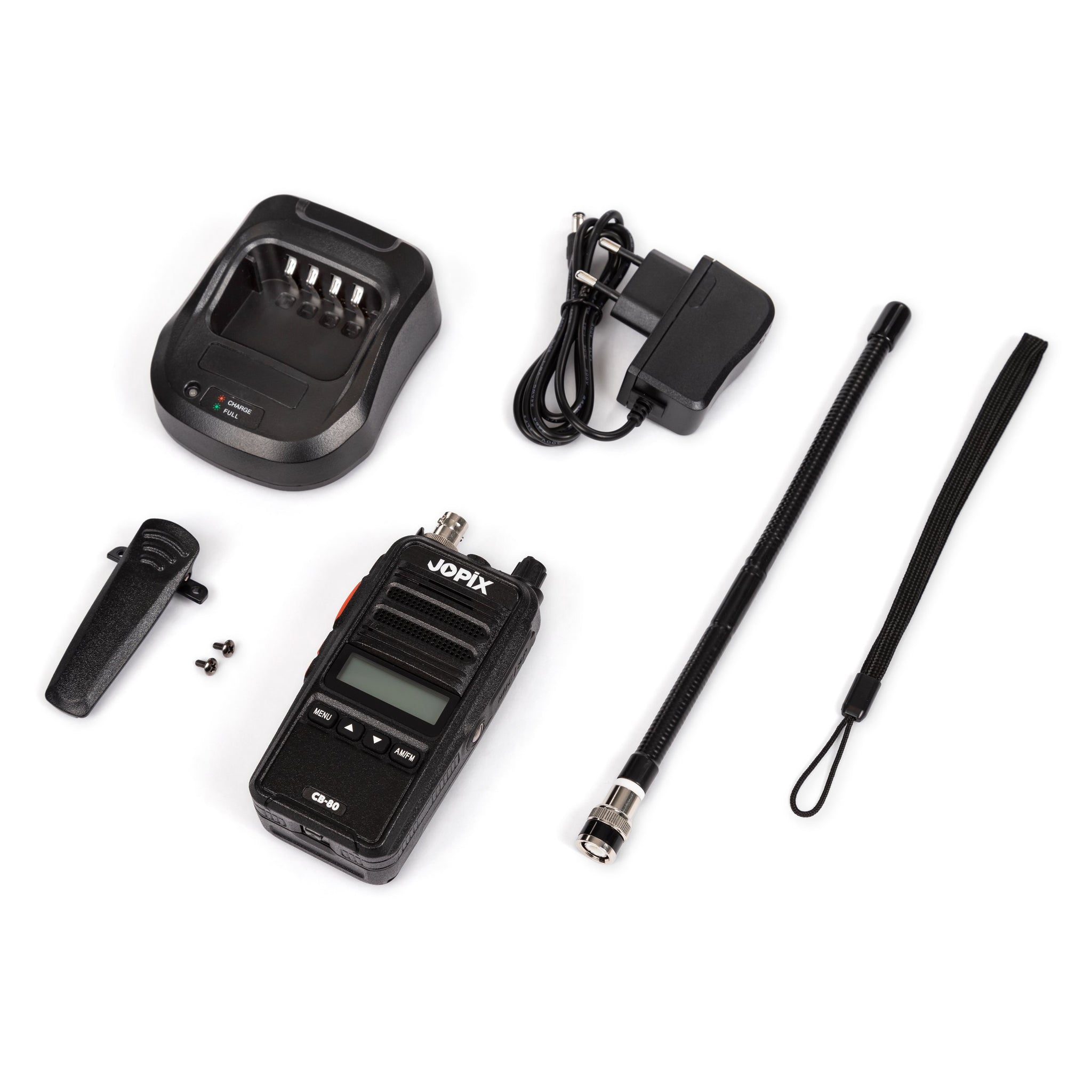

CONTENT

• CB-80 portable transceiver

• High performance antenna

• Battery Li-Ion 7.4V 2,600 mAh

• Desktop charger

• AC 220/230V power supply

• Belt clip

• Hand strap

• Instruction manual (Spanish, English, Portuguese, French)
