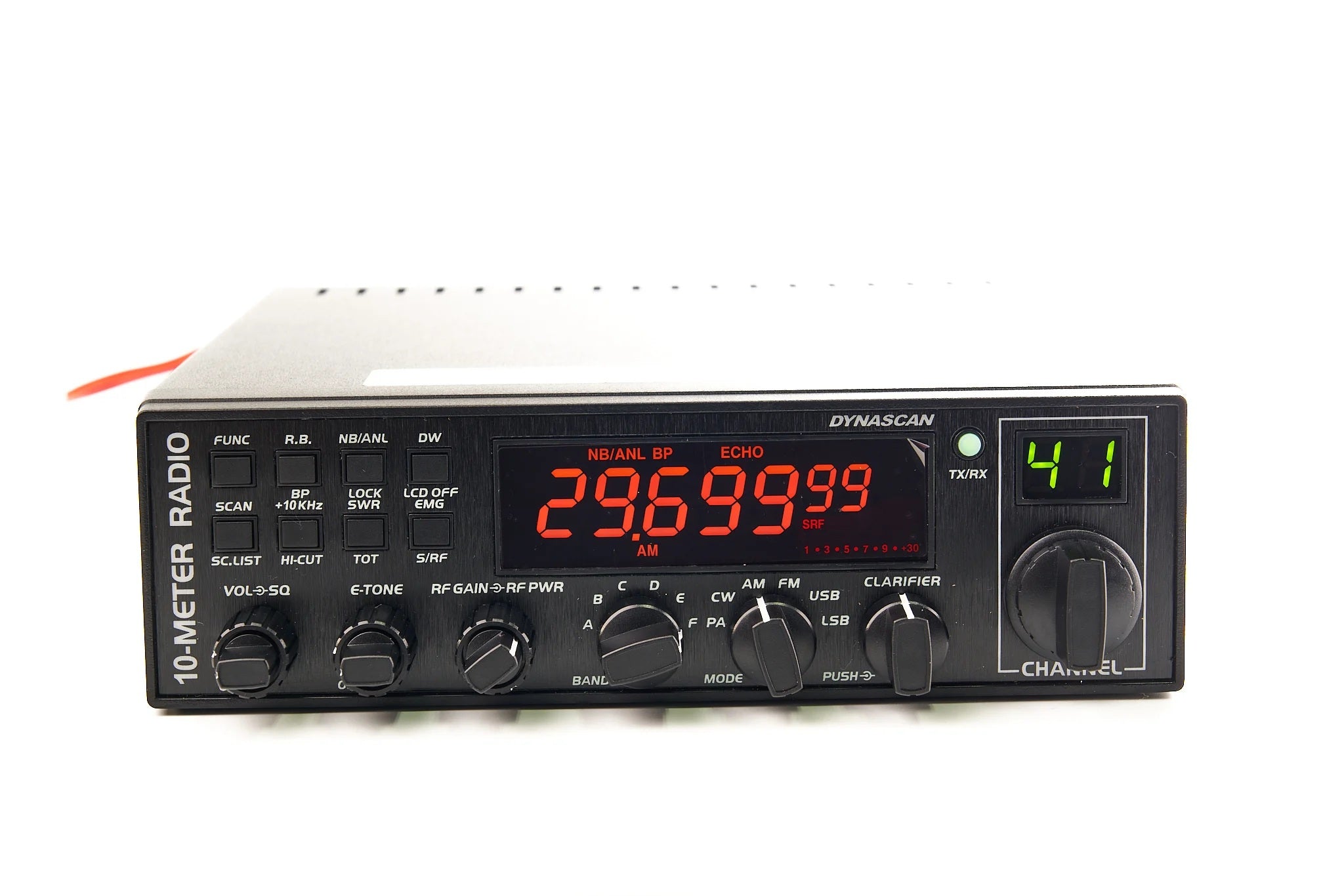

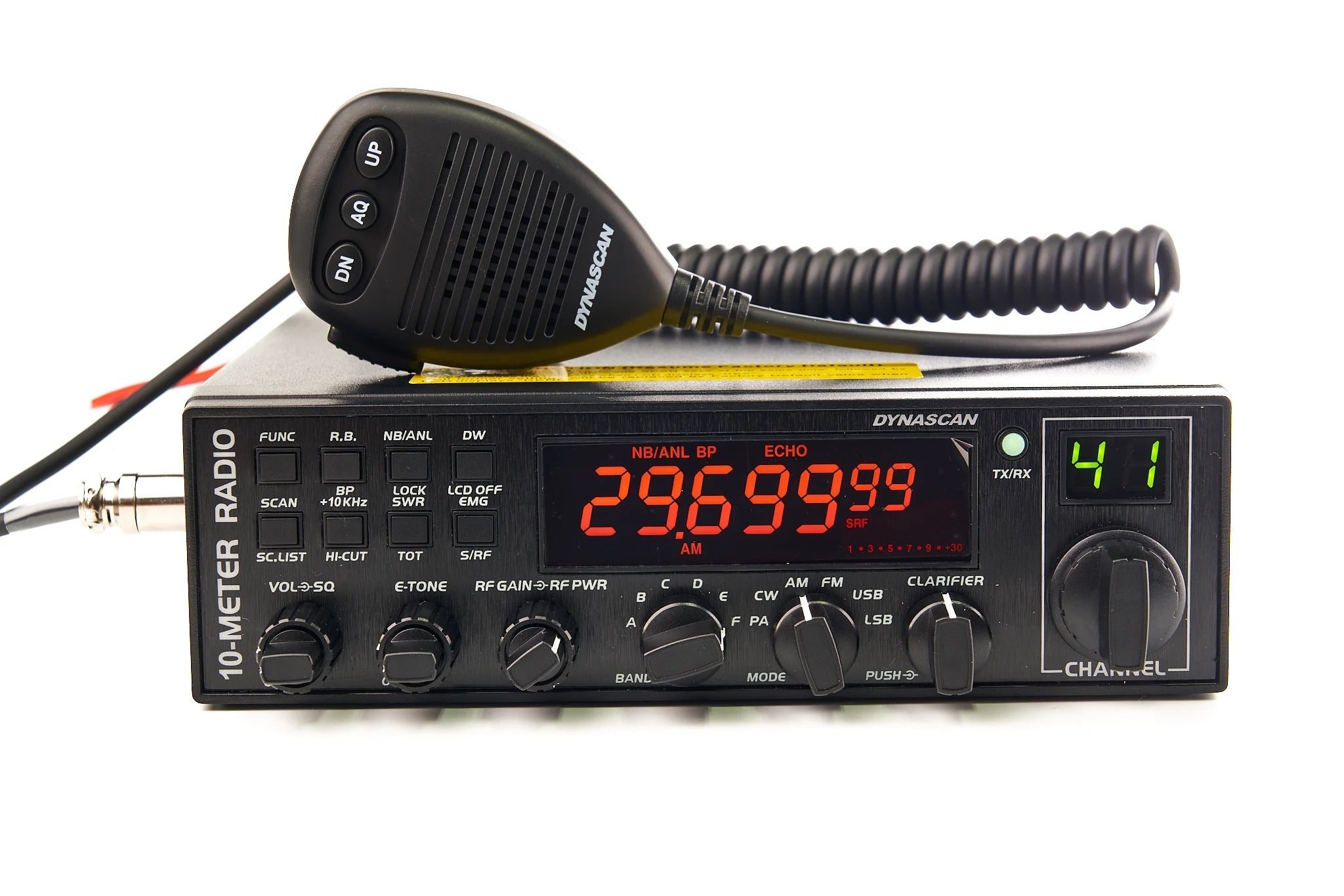

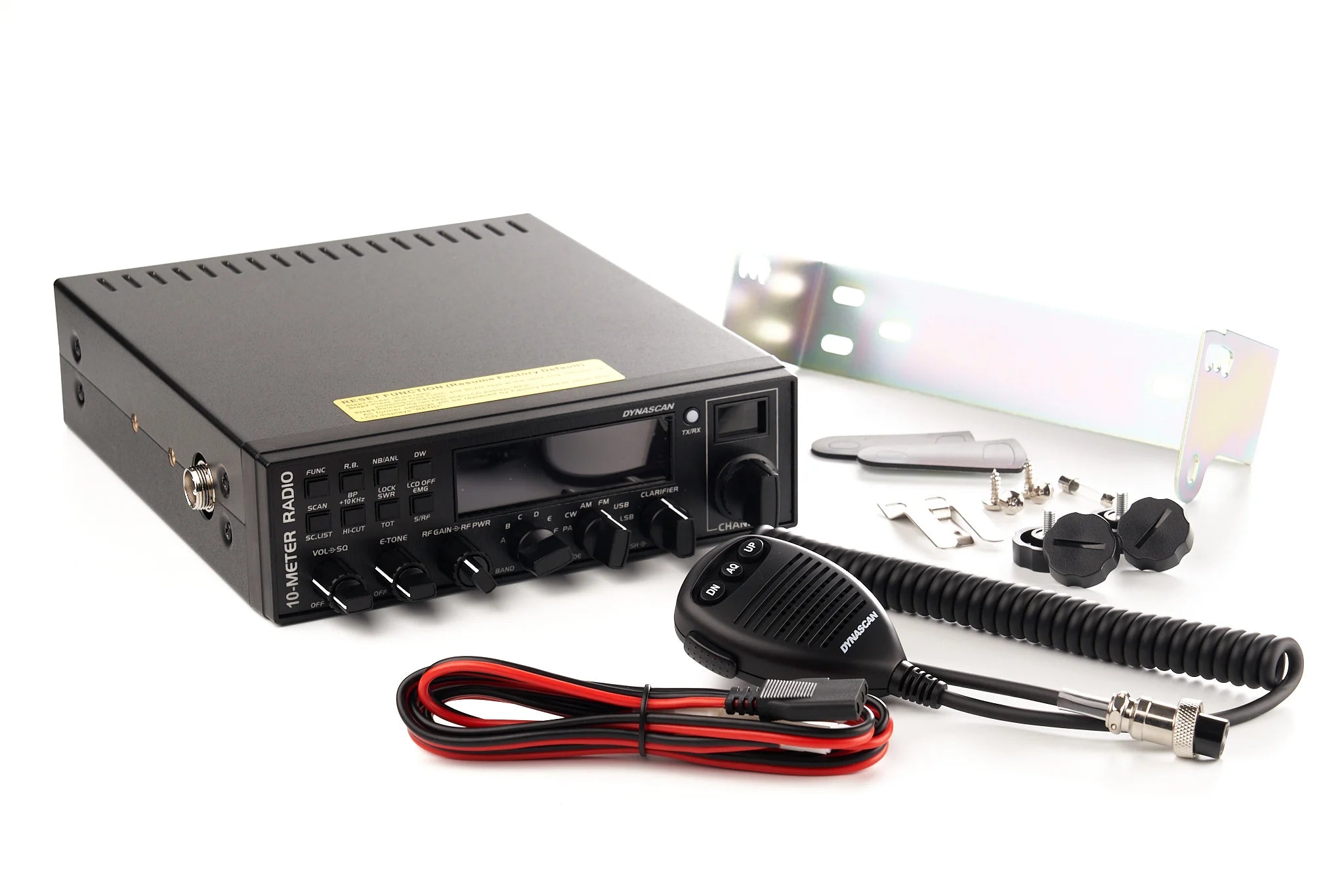

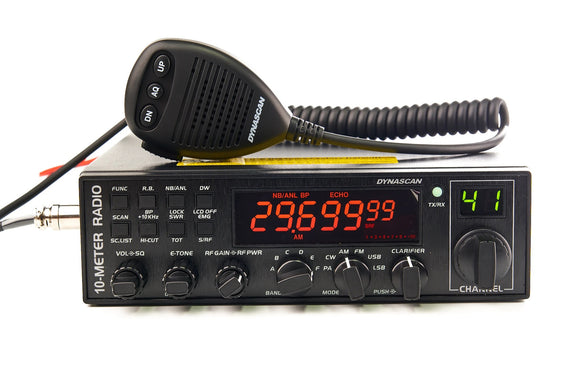

DYNASCAN AT 5555 10M 11M AM FM SSB CB HAM RADIO
DYNASCAN AT 5555 10M 11M AM FM SSB CB HAM RADIO. AT 5555
PIN 4 IS A LIVE PIN FOR THE UP AND DOWN BUTTONS - SO IF CHANGING MIC'S PLEASE DO NOT WIRE PIN 4 OR IT WILL DAMAGE THE RADIO
PROGRAM 1 THE RADIO IS SUPPLIED PRE PROGRAMMED
BAND A: 25.615 TO 26.055
BAND B: 26.065 TO 26.505
BAND C: 26.515 TO 26.955
BAND D: 26.965 TO 27.405
BAND E: 27.415 TO 27.855
BAND F: UK 40
PROGRAM 2 THE RADIO CAN BE SUPPLIED PRE PROGRAMMED ON REQUEST
BAND A: 28.255 TO 28.555
BAND B: 26.065 TO 26.505
BAND C: 26.515 TO 26.955
BAND D: 26.965 TO 27.405 EU/UK - MID BAND
BAND E: 27.415 TO 27.855
BAND F: 27.60125 TO 27.99125 UK 40 27/81
PROGRAM 3 THE RADIO CAN BE SUPPLIED PRE PROGRAMMED ON REQUEST
BAND A: 28.255 TO 28.555
BAND B: 28.865 TO 29.345
BAND C: 26.515 TO 26.955
BAND D: 26.965 TO 27.405 EU/UK - MID BAND
BAND E: 27.415 TO 27.855
BAND F: 27.60125 TO 27.99125 UK 40 27/81
PROGRAM 4 THE RADIO CAN BE SUPPLIED PRE PROGRAMMED ON REQUEST
BAND A: 28.255 TO 28.655
BAND B: 28.865 TO 29.345
BAND C: 29.355 TO 29.700
BAND D: 26.965 TO 27.405 EU/UK - MID BAND
BAND E: 27.415 TO 27.855
BAND F: 27.60125 TO 27.99125 UK 40 27/81
FREQUENCIES: 28,000 MHZ. - 29,700 MHZ. (TX / RX)
MAXIMUM POWER: 12 W. (AM). / 30 W. (SSB). / 40 W. (FM)
MODES: AM / FM / SSB / CW
CHANNELS: 6 BANDS OF 60 CHANNELS EACH ONE.
IMPEDANCE: 50 Ω.
CONSUMPTION: 6 A. MAX.
POWER SUPPLY: 13.8 V.C.C.

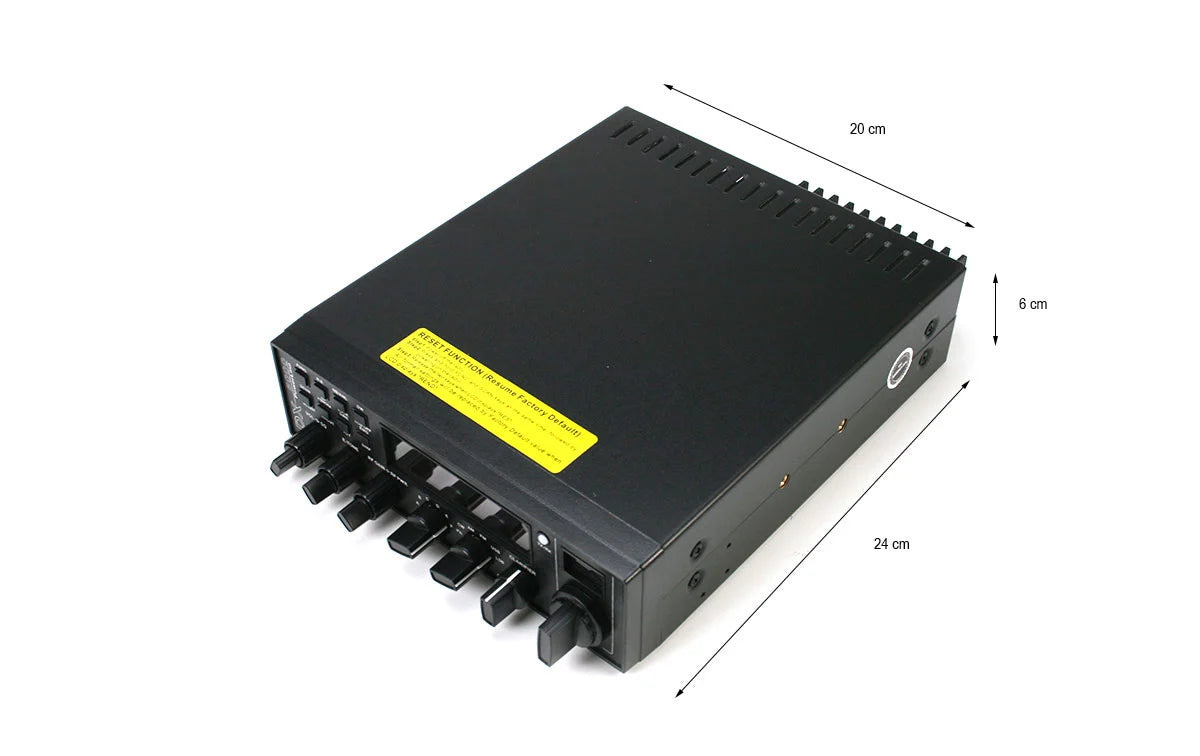

DIMENSIONS: 280 X 250 X 60 MM.
WEIGHT: 2.8 KG
CLARIFIER. ROGER BEEP. LCD SCREEN. ECO. DW (DOUBLE WATCH). SCANNER / TOT. SWR.
