DISCOVERY TX-500 MILITARY STYLE-PORTABLE-TRANSCEIVER

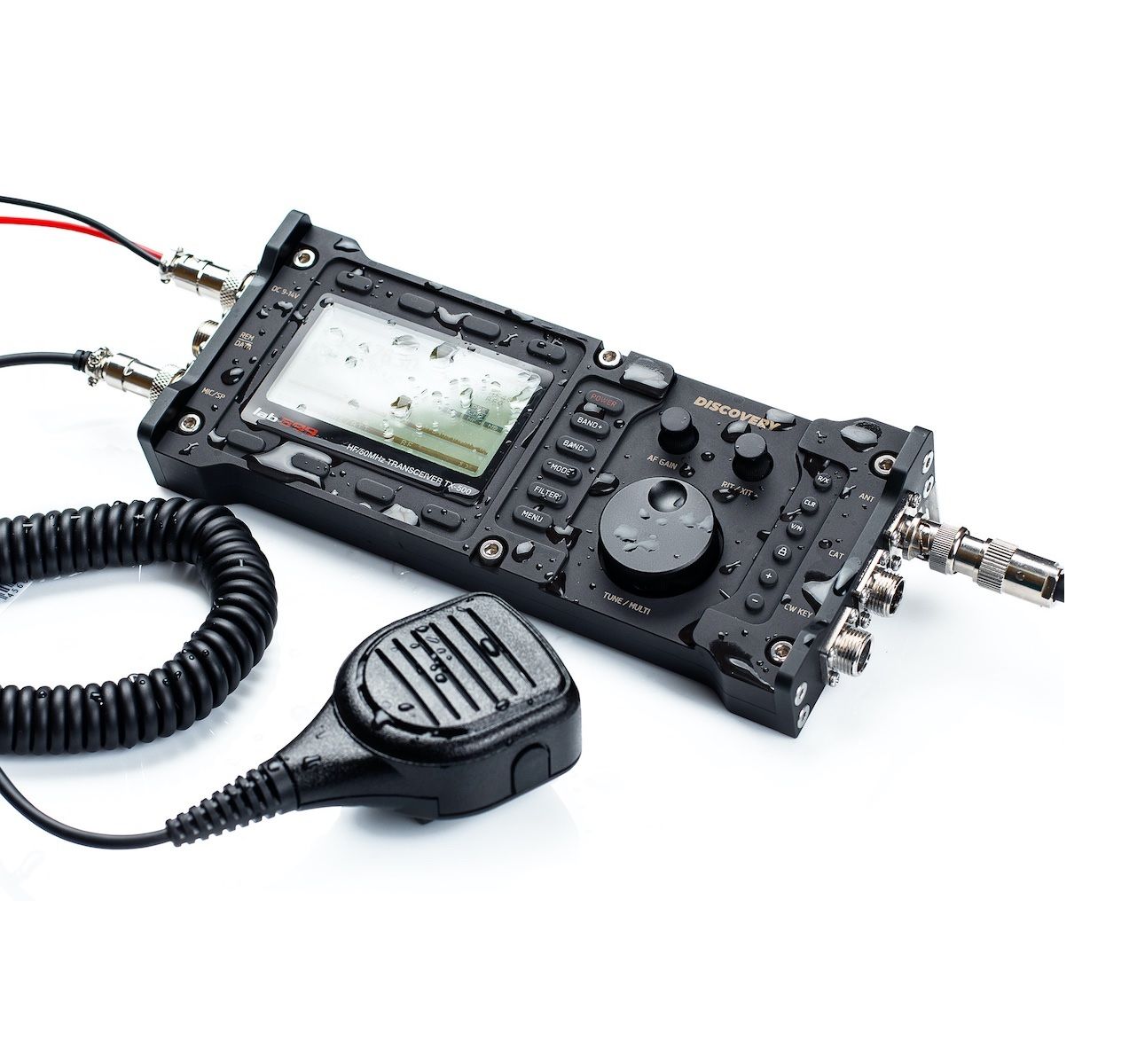

LAB 599 Discovery TX-500 – Military Style Portable Transceiver - Made in UAE

Tailored for adventure, for extremes, for using in places unattainable before, with no sacrifice of performance or features.

The Lab599 Discovery covers 160-6 meters, all modes, with a maximum power output of 10 W. It comes with true desktop-radio features, like auto-notch, noise reduction, and RX/TX EQ.

The transceiver has a built-in fast Panadaptor, for easier search for new contacts and evaluation of band conditions wherever you are, at any time.

Features:

  • Splash proof and Dustproof Portable Software-Defined Radio

  • 160-6-meter ham bands

  • General ‘receive’ coverage 0.5 - 56.0MHz

  • All modes: SSB, CW, DIG, AM, FM

  • High-performance 32-bit floating-point DSP

  • Current drain as low as 100 mA in ‘receive’ mode (backlight on, preamp off, no signal)

  • External power supply DC 9-15V, 1 to 3A typical in transmit

  • High-contrast LCD with 256×128px

  • High-performance real-time Panadaptor (48 kHz wide)

  • On-line firmware updates

  • Rear folding kickstands for viewing angle and transportation

  • Ultra-compact size (H×W×D): 90mm (3.5") × 207mm (8.1") × 21mm (0.8 ")

  • Weight: 0.55Kg (19,4oz).

  • Adjustable output power 1—10W

  • Digital Hi-Performance Filtering (4 receive, 2 transmit)

  • 48 kHz Build-in HI Speed Panadaptor

  • I/Q Output

Built-in Panadaptor - The transceiver features a built-in high-performance Panadaptor, for better search for new contacts and evaluation of band conditions — wherever you are, at any time. In receive mode, current drain can be as low as 100 mA — a unique feature on the market. Transmit efficiency is also excellent, with improved battery life.

Unique form-factor - The Lab599 Discovery unique form-factor allow operate from anywhere. The transceiver is only 30 mm thick, including knobs, weighing only 0.55 kg. Fold out the kickstands at the rear for use on a desktop or picnic table.

11 Discrete RF Bandpass Filters - Discovery TX-500 has 11 discrete RF bandpass filters. The RF signal is only passed through one of the band-pass filters — any out-of-range signals are rejected.

Aluminium Alloy Body - The transceiver's body is made of durable aluminium by the method of precision milling, to ensure a unique shock protection and provide good heat removal from the output part of the transmitter.

Well Shielded Inner Units - To achieve high sensitivity of the transceiver, separate functional units are isolated from mutual influence and external interference by partitioning walls installed in the device case.

Dust and Liquid Protection - Thanks to the liquid-protected housing and the absence of through-holes, spatter resistant plugs, valcoders with sealing rings, the transceiver will work reliably in extreme conditions, giving you real pleasure from traveling. The case is also covered with a layer of black anodizing substance, to maintain an attractive appearance for a long time, even during extreme operation.

Other Features:

  • Internal CW keyer with 10-300СPM range

  • 100 general-purpose memories store VFOs, modes, etc.

  • CW keyer memory with 4 cells for 20 seconds each

  • Voice message memory with 2 cells for 20 seconds each

  • Computer control via USB

  • Full remote-control command set (with Kenwood emulates)

  • One-click online firmware upgrades (with free PC software)

Included in Box:

  • Speaker-microphone

  • CAT cable for on-line software update

  • Power cable for external power source DC 9 -15V (battery not included)

  • Headset and mic adapter with PTT (3.5mm jack)

  • CW adapter (3.5mm jack)

  • Additional connector GX12 type, 7 pins

Receiver* Specifications:

  • Sensitivity: Noise Floor (MDS), 500 Hz DSP filter: –141 dBm (14 MHz, Preamp-on)

  • Blocking Gain Compression Dynamic Range, 500 Hz. BW: 129 dB (14 MHz, 2 kHz offset, Preamp-off)

  • Reciprocal Mixing Dynamic Range: 14 MHz, 20/5/2 kHz, offset: 119/108/106 dB

  • Quadrature down-sampling mixer compatible with PC-based SDR (software defined radio) applications

  • Receiver I / Q outputs for PC soundcard

  • Switchable low-noise preamp and attenuator

  • 3-band receive audio equalizer

  • 4 adjustable digital filters

  • Automatic notch filtering

  • Adjustable noise reduction and noise blanking

  • Audio Output ext. speaker, 3W typ.

Transmitter* Specifications:

  • Adjustable output, 1 to 10W PEP

  • Rugged, SWR and temperature-protected final amplifier stage

  • Carrier Suppression > 50dB typ.

  • Harmonic / Spurious Outputs > 50dB below carrier

  • CW Sidetone/Transmit offset 400-1200Hz, adjustable

  • Speaker-microphone with PTT

  • 3-band microphone audio equalizer

  • 2 adjustable digital filters

  • DSP RF speech processing for excellent 'punch'

* Specifications apply only within ham bands except as noted. All measurements taken with 13.8 VDC supply.

CE - FCC. Amateur Radio Operation Only.
