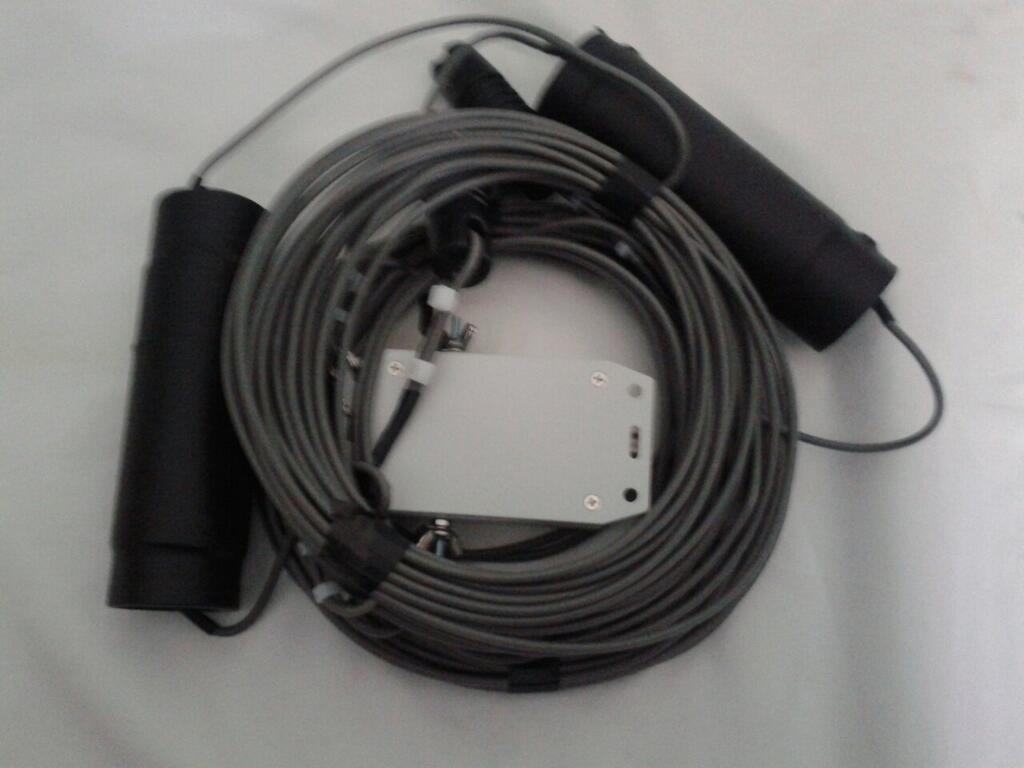

DBD 4080 15 40 80 LOADED DIPOLE WIRE ANTENNA
Three band loaded dipole for 15m, 40m and 80m (only loaded on 80m). SWR below 1.5 throughout the whole 15m band, <2 throughout the 40m band (7.0 - 7.2MHz) and from 3.650 - 3.80MHz on the 80m band (SSB portion). This is fitted with a M0CVO 1:1 BALUN at the feedpoint and can be fed with standard 50ohm coax. Overall length is just 24m so will even fit in small gardens and can be dog-legged or bent with little change in performance.

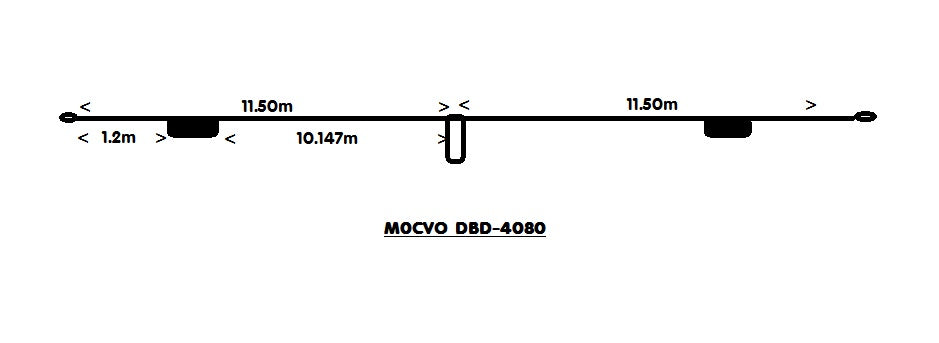

Specifications: Length: 24m Bands: 15 / 40m / 80m
Max Power: 400W CW, 550W SSB
