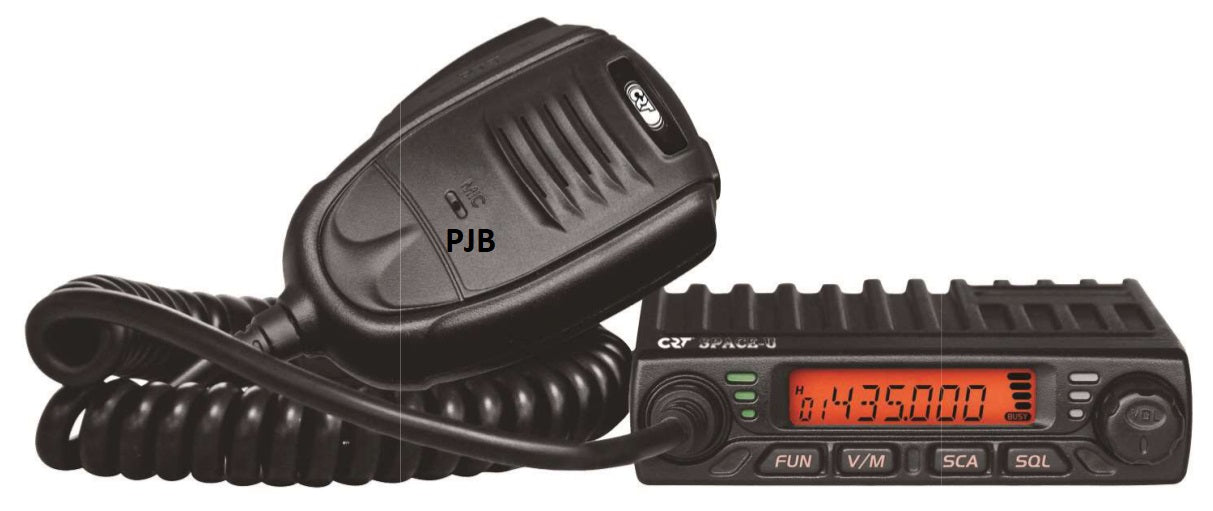

CRT SPACE U UHF Radio 400 470 mHz 446 PMR PROGRAMMED FOR 446 + Sirio 440 ANTENNA
CRT SPACE U UHF Radio 400 470 mHz 446 PMR PROGRAMMED FOR 446 + Sirio 440 ANTENNA
Cigarette Lighter Plug Fitted
Frequency range RX / TX : 400 - 470 mHz programming by PC
Power HIGH : 17Watts / MIDDLE : 10Watts / LOW : 5Watts
Memories 199 channels Channel spacing 12.5 kHz / 25 kHz
Step of increment 2,5 / 5 K / 6,25 / 10 / 12,5 / 20 / 25 / 30 / 50 kHz SQUELCH Yes : elimination of background noise (adjustable)
MIC GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power
CTCSS / DCS (encoder/decoder) 51 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone manière sélective TOT function Yes : time out timer
CTCSS / DCS SCAN function Yes : automatic search of busy channels
TX/OFF function Yes : forbidding emission
BCLO function Yes : busy Channel Lock
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
APO function Yes : automatic power off (programmable) Various functions Keyboard lock + channel name édit + function
OFFSET Mike UP/DOWN selection
Display LCD display Level display Display channel / frequency / function setting Programmable by software Yes
Includ Bracket, hardware kits, fixed microphone, fuse 5A, product manual in French and English
Size 10.5 x 10.5 x 2.5 cm
Weight 434 gr
|

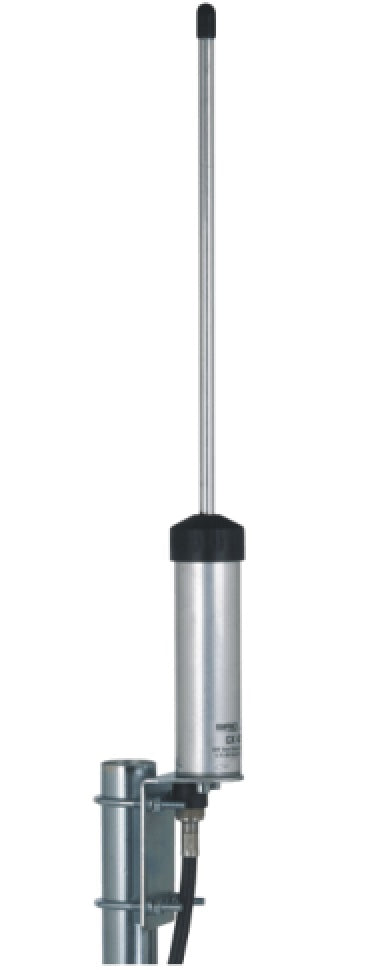

Sirio CX 440 - Omnidirectional Base station 446 antenna

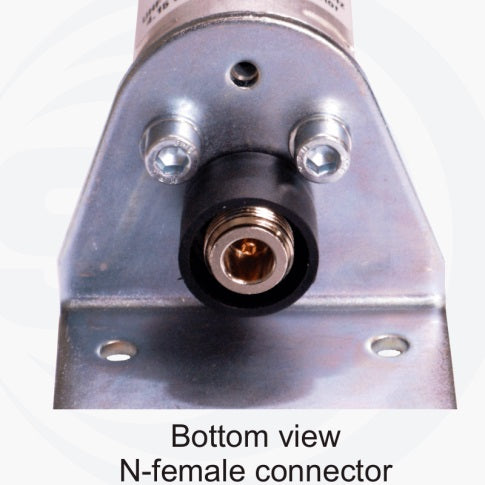

Features: • Base station antenna, Mono-band • Omnidirectional • Factory tunable according to specific customer's frequency • Protection from static discharges DC-Ground • Made of aluminium alloy 6063 T-832 Electrical data • Type: 3/4λ coaxial J-pole • Frequency range S.W.R. ≤ 1.5:1: 440-455 MHz • Impedance: 50Ω unbalanced • Radiation (H-plane): 360° omnidirectional • Radiation (E-plane): beamwidth at -3 dB = 60° • Polarization: vertical • Gain: 2dBd - 4.15 dBi • Bandwidth at S.W.R. 2:1: 33.5 MHz • S.W.R. at res. freq.: ≤ 1.2:1 • Max. power: 250 Watts • Feed system / position: gamma match / base • Connector: N-female Mechanical data • Materials: Aluminium, Brass, Steel, Nylon • Wind load / resistance: 25 N at 150 Km/h / 180 Km/h • Wind surface: 0.02 m2 • Height (approx.): 588 mm • Weight (approx.): 450 gr • Mounting mast: Ø 35-42 mm |
