CRT MICRON U/V UHF-VHF DUAL BAND MOBILE RX/TX : 144 146 MHz 430 440 MHz PLUS CABLE & SOFTWARE

New line of text Norm AMATEUR RADIO Mode FM ( Wide/Narrow )

Frequency range RX/TX : 144-146 MHz / 430-440 MHz --- RX : 136-174 MHz / 400-490 MHz

Power LOW : 5W / MIDDLE : 15W / HIGHT : 25W (large cooling box)

Input voltage 13,8V DC

Memories 200 channels

Channel spacing 12.5 / 20 / 25 KHz

Step of increment 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz

Working UU / UV / VU / VV TONE BURST Yes : 1000Hz / 1450Hz / 1750Hz / 2100Hz

CTCSS / DCS (encoder/decoder) 52 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone

DTMF (encoder) Yes : tones selected to activate repeater, internet gateway and other items

DOUBLE WATCH function Yes

TOT function Yes : time out timer CTCSS / DCS

SCAN function Yes SCAN function Yes : automatic search of busy channels REVERSE function Yes : the current channel

RX frequency will be switched to TX frequency

TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repeater Bonus Backlit keys + Jack plug for external loudspeaker + 6 functions keys PF1 to PF6 with 3 functions each + menu order can be personalized Mike With speaker incorporated and programmable keys

Display Large color multifunction TFT display adjustable to 180 ŒÁLevel display RX signal + TX power + channel number or frequency + various functions ...

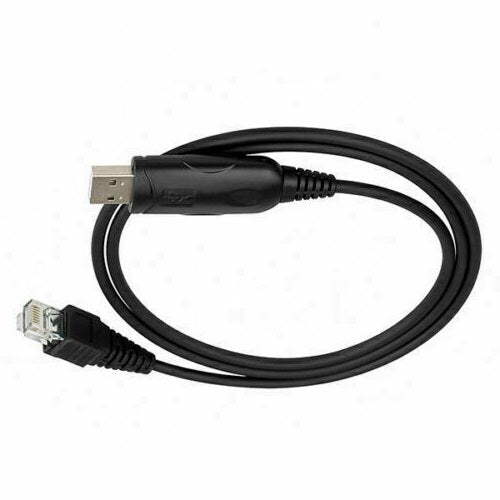

Inc Programming cable + software Programmable by software Yes

Size 122 (l) x 165 (L) x 35 (H) mm

Weight 480 gr
