CB Radio Moonraker Minor II PLUS 12/24 v UK EU

  • £54.99
Tax included.

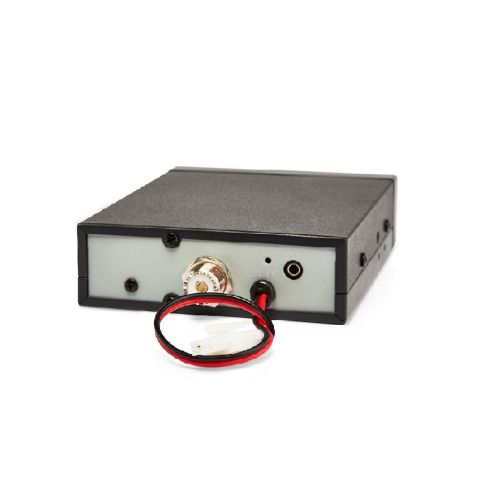

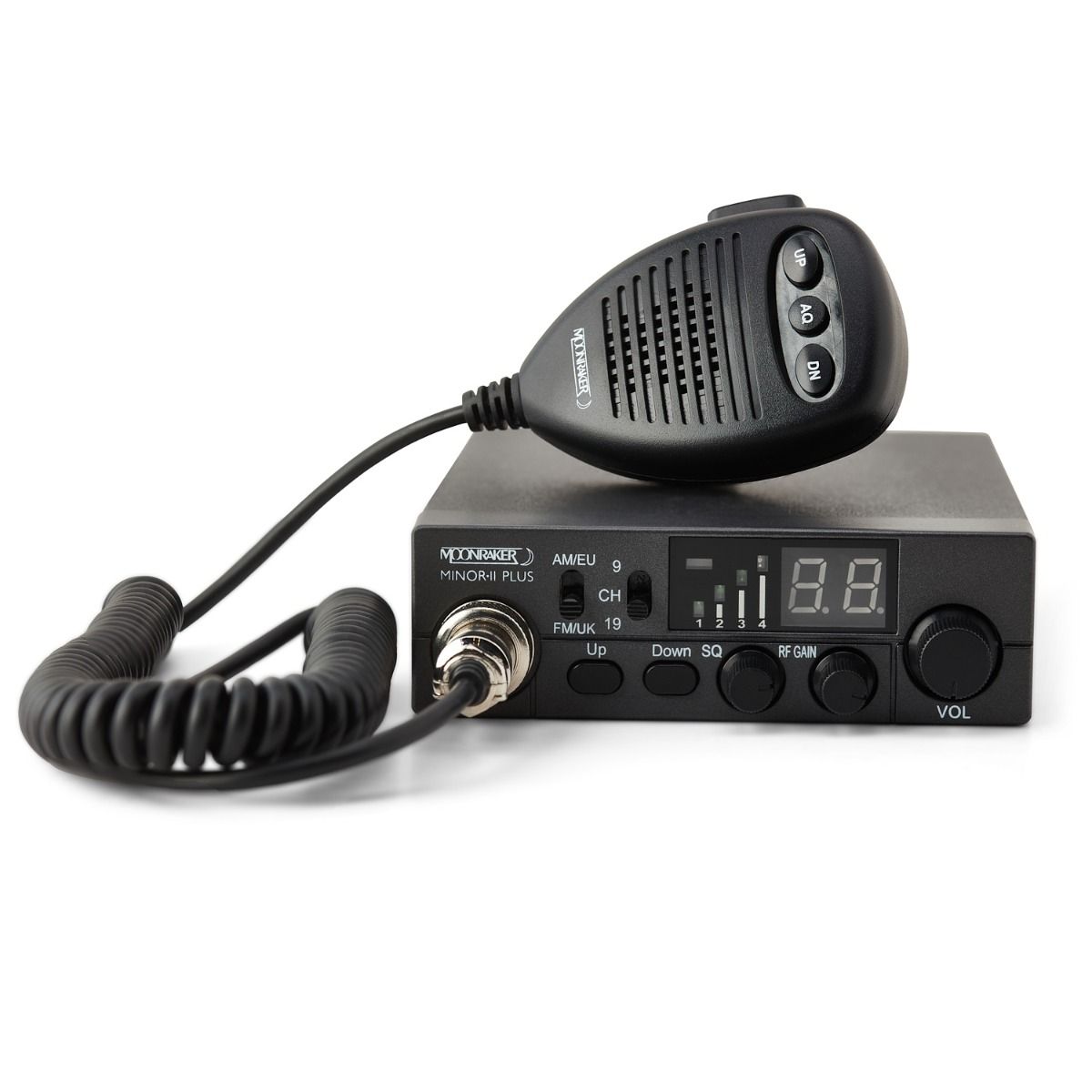

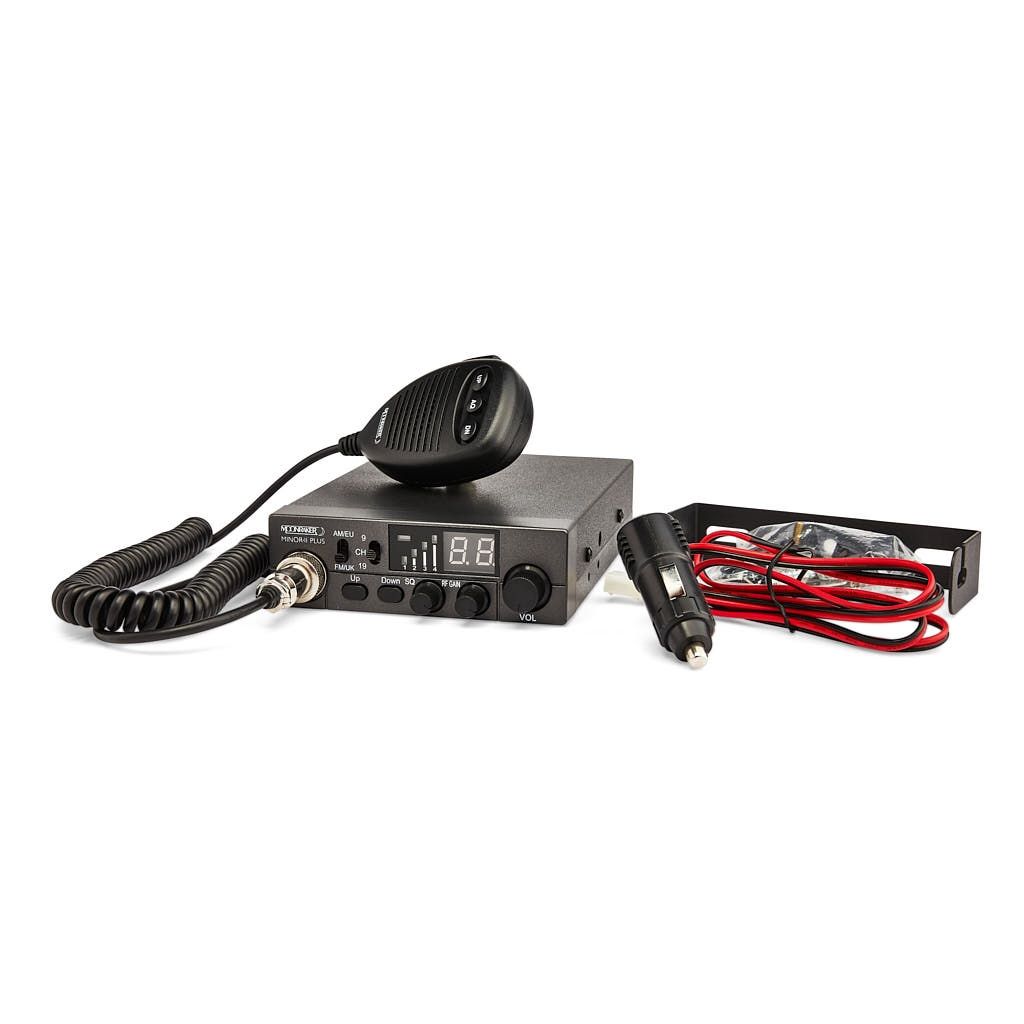

Moonraker Minor II PLUS CB Radio

Specifications:

  • Frequency Range : 26.965-27.405 & 27.60125-27.99125 MHz
  • Channels 80 FM * 2
  • Frequency control P.L.L.
  • Operating temperature -10°/+55°C
  • DC input voltage 13.8Vdc ±15%
  • Size 38mm (h) x 115mm (W) x 150mm (D)
  • Weight 0.8 kg
  • DC input voltage 12 /24 VOLT DC

TRANSMITTER

  • System CPU controlled P.L.L. synthesizer
  • Maximum RF power 4W at 13.8Vdc
  • 1.8 KHz ±0.2 KHz (FM)
  • ANT impedance 50 ohm unbalanced
  • Current drain 1000mA (at no modulation)

RECEIVER

  • System CPU controlled Double conversion super
  • IF 1° 10.7 MHz / 2° 450 KHz
  • Sensitivity -120dBm for 12dB SINAD (FM)
  • -107dBm for 12dB SINAD (AM)
  • Audio output @10% THD 2.5W at 8 ohm
  • Audio distortion <8% at 1 KHz
  • Image rejection 65dB
  • Adjacent channel 85dB
  • Signal rise ratio 45dB
  • Current drain 220mA (stand-by)
