AVAIR AV 21C Duplexer HF VHF UHF

AVAIR AV 21C Duplexer HF VHF UHF

  • £34.95
Tax included.

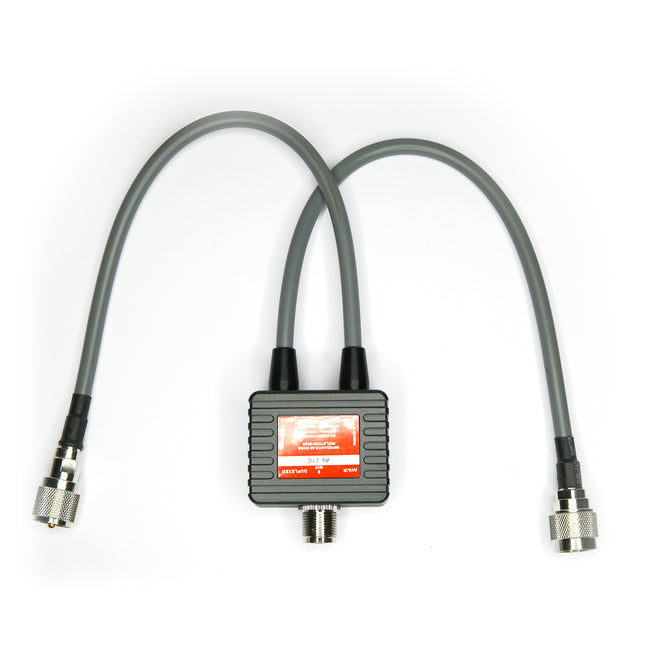

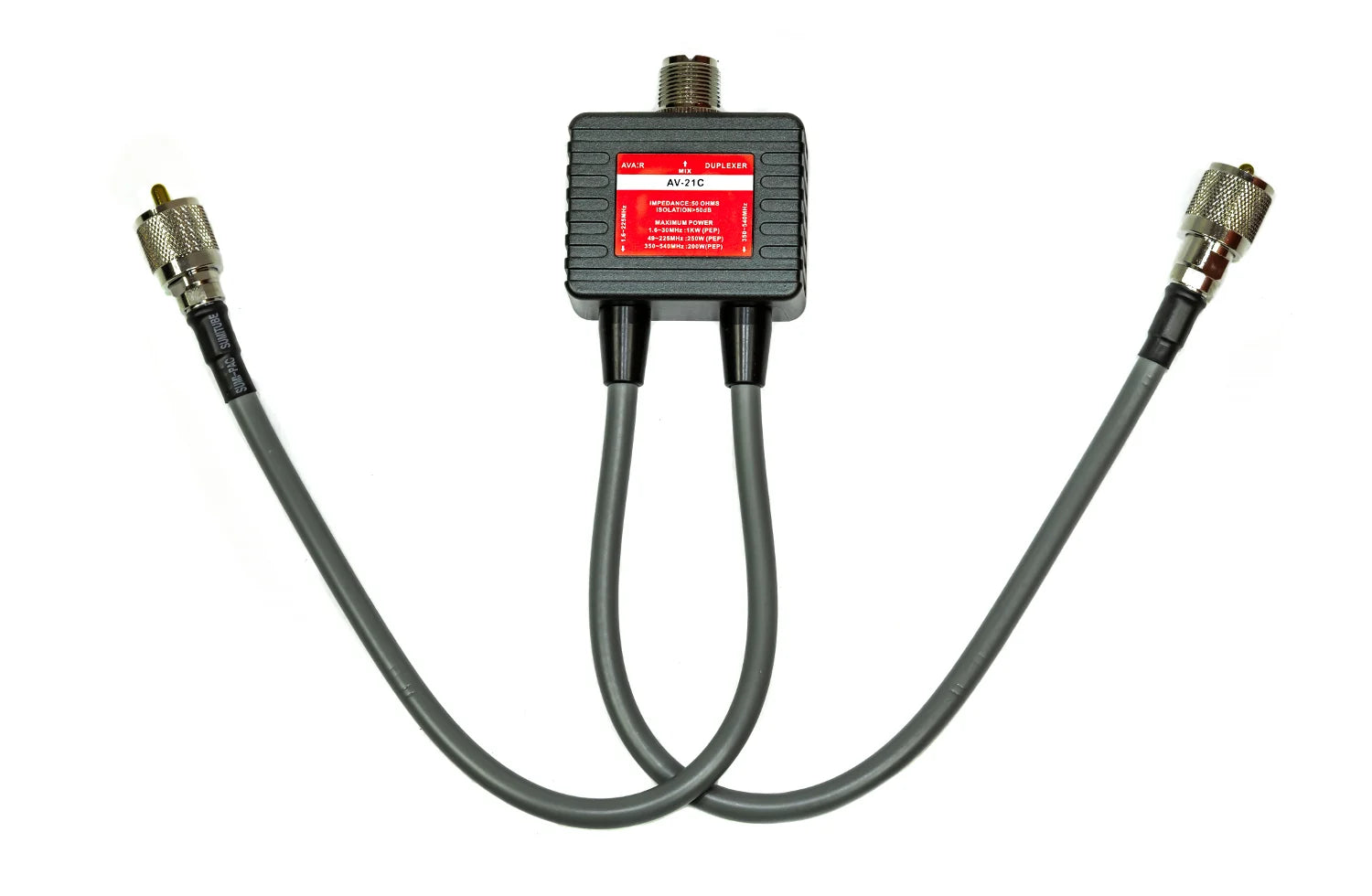

AVAIR AV 21C Duplexer

Duplexer with the following outputs: 1 x cable with PL connector (for 1.6 - 225 MHz) and 1 x cable with N connector (for 350 - 540 MHz)

N socket on the input side

Max. Load capacity 1.6 - 30 MHz = 1KW (PEP) / 49-225 MHz = 250 W (PEP) / 350-540 MHz = 200 W (PEP)

Impedance: 50 ohms

Isolation> 50dB
Weight: 0.3 kg
