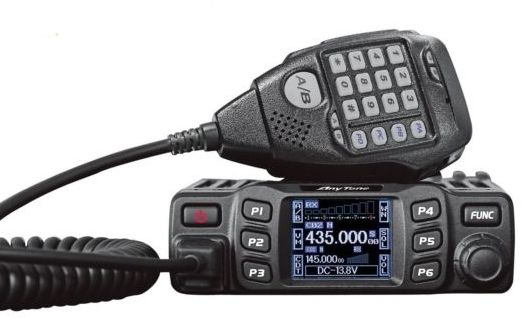

Anytone AT 778UV Dual Band Mobile Transceiver VHF UHF

SPECIFICATIONS

Frequencies: 144 - 146 MHz / 430 - 440 MHz

Power of transmission: 25, 15 and 5 W

Operates in V-U, U-V, V-V and U-U 200 programmable memory channels Broad band with 25 kHz and narrow band with 12.5 kHz

Frequency jumps: 2.5 kHz, 5 kHz, 6.25 kHz, 10 kHz, 12.5 kHz, 20 kHz, 25 kHz, 30 Khz and 50 kHz 51

CTCSS + 1 programmable / 512 DCS, with scanner function Microphone in DTMF, multifunction Signage of 5 tones for data transfer, alarm, call to all users, remote usability and remote activation DTMF-ANI for the automatic recognition of calls TFT LCD screen with rotation of 180 degrees Alloy housing for heat dissipation Radio amateur mode for different operating requirements Distribution of the keys in a reasonable and convenient way to handle the transceiver Configuration of the individualized bandwidth for each channel Alphanumeric memories Includes 5 individualized tone for each channel, rejecting unwanted calls from other transceivers Several scanning functions Includes CTCSS and DCS tone scanner Smart menu control and programmable by PC Includes protection against overvoltage Setting the brightness of the LCD screen Colour screen

Automatic ignition function Transceiver keyboard lock function Function of blocking of the keys of the microphone

Optional scrambler (spectrophone) Small size

Dimensions: 124 (width) x 163 (bottom) x 39 (high) mm

Weight: 640 gr.

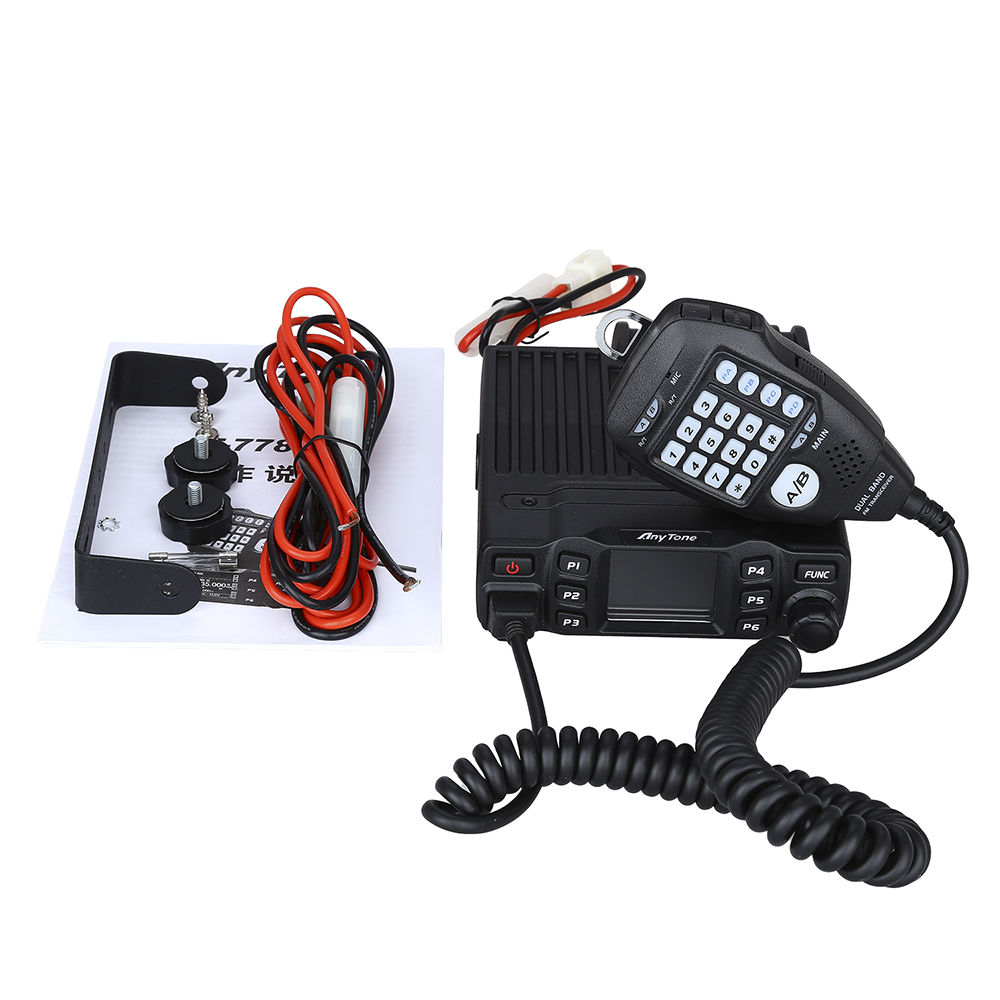

includes:

• Anytone AT-778UV Dual Band Mobile Radio

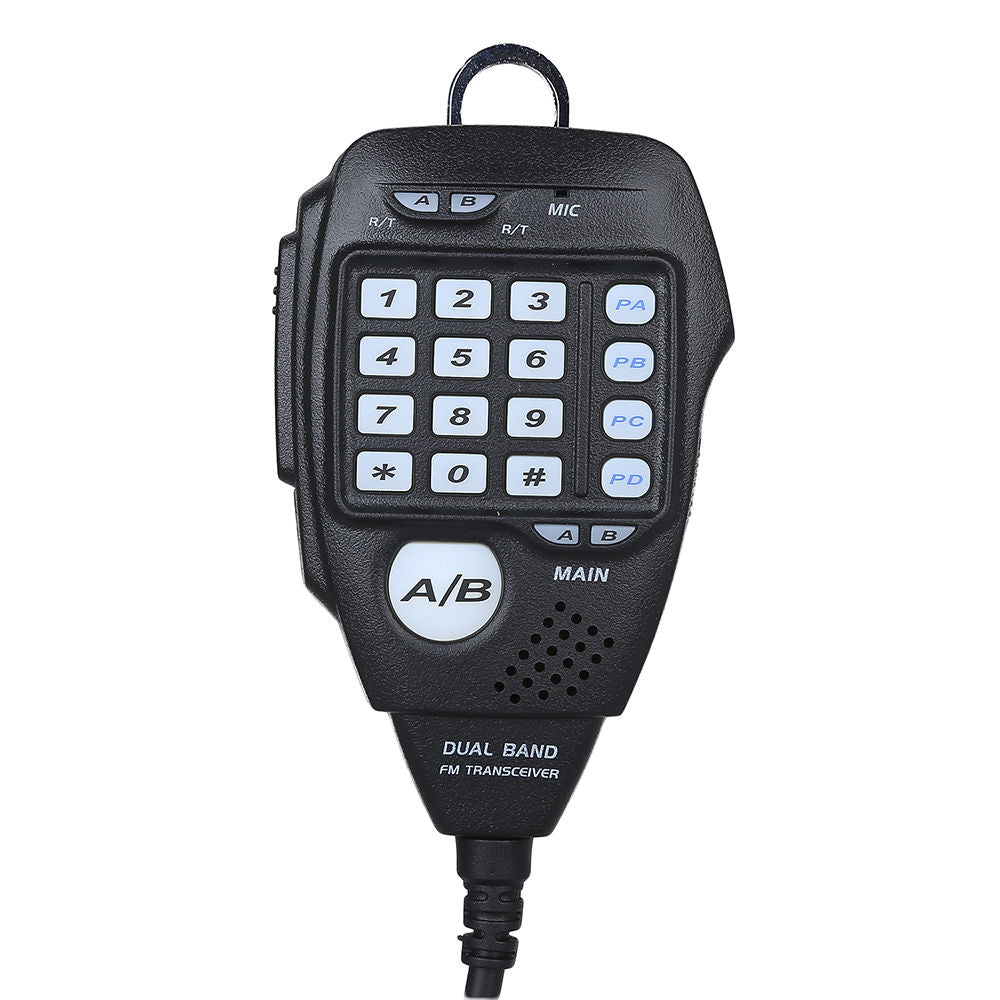

• Handheld Microphone

• Mounting bracket & screw

• USB Proggramming Lead

• Power cable

• User's manual
