ANYTONE AT-288 4M (66-88MHZ) HANDHELD TRANSCEIVER
ANYTONE AT-288 4M (66-88MHZ) HANDHELD TRANSCEIVER

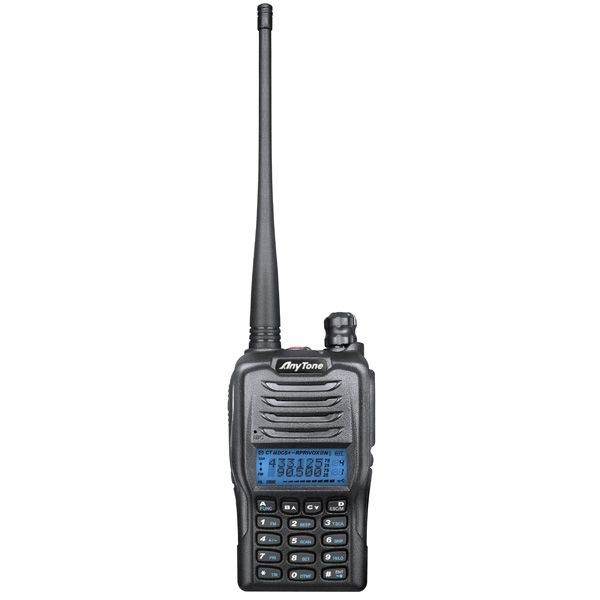

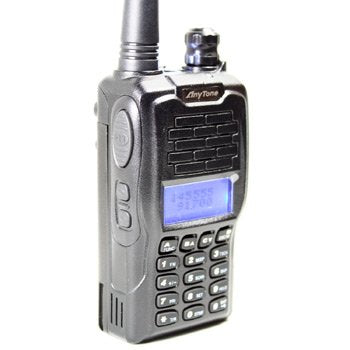

Anytone AT-288 handheld two-way radio.
Features:
Receive FM Radio
128 Signal-duplex channels, three colour LCD backlight display.
Voice annunciation (Chinese or English)
CTCSS+DCS encode and decode+DTMF encode/decode.
Multi-scan mode: VFO scan+ channel scan +priority scan+CTCSS scan+DCS scan.
VOX function (3 levels), voice scramble & commander, wide/narrow band.
DTMF ANI function.
Squelch Tail Elimination function
Emergency lighting function.
Output Power: 4/5w.

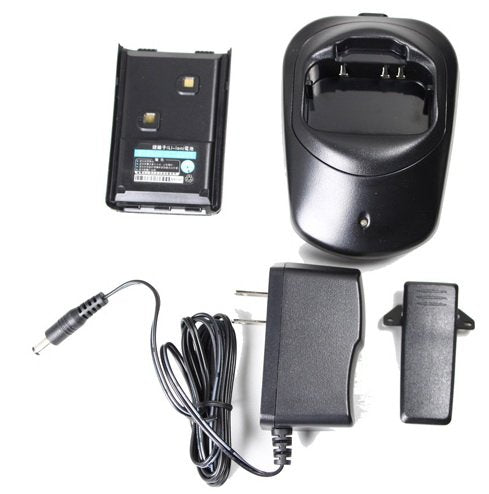

Accessories Included:
One charger
Li-ion battery (1500mAh)
Rubber antenna
User's manual.
Technical Specifications:
Frequency Range: 66-88MHz
Channel Capacity: 128 channels
Channel Spacing: 25KHz (wide band) 20kHz (middle band) 12.5KHz (narrow band)
Phase-locked Step:5KHz, 6.25KHz
Operating Voltage: 7.4V DC ± 20%
Battery life: More than 14 hours (1500mAh), by 5-5-90 working cycle
Frequency Stability: ± 2.5ppm
Operating Temperature: -20°C +55°C
Size: 260mm x 57mm x 37mm (with battery, antenna)
Weight: 210g (with battery, antenna)
