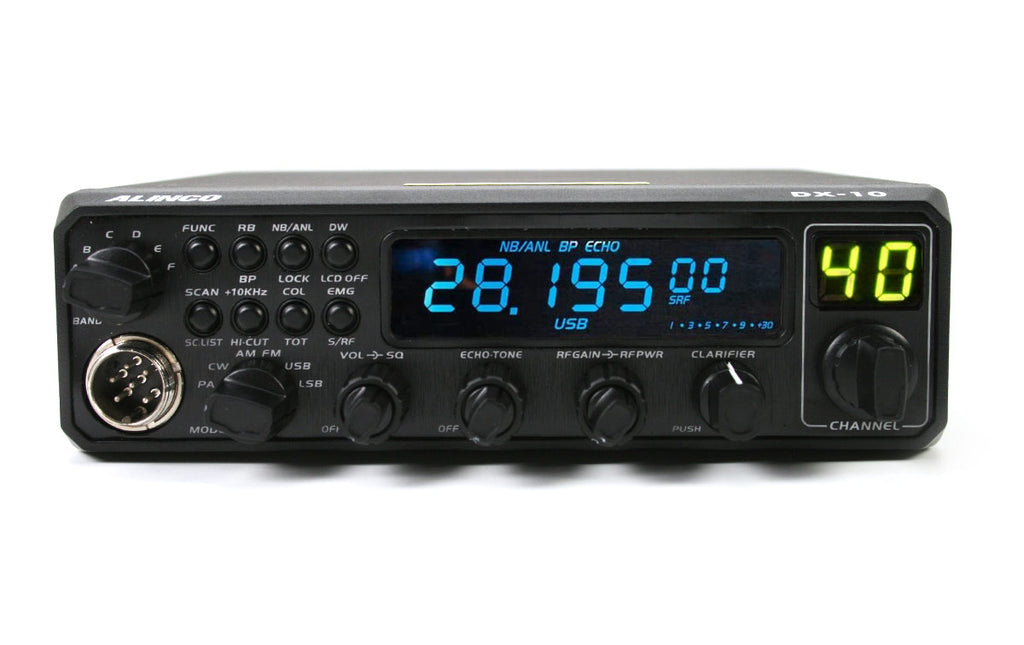

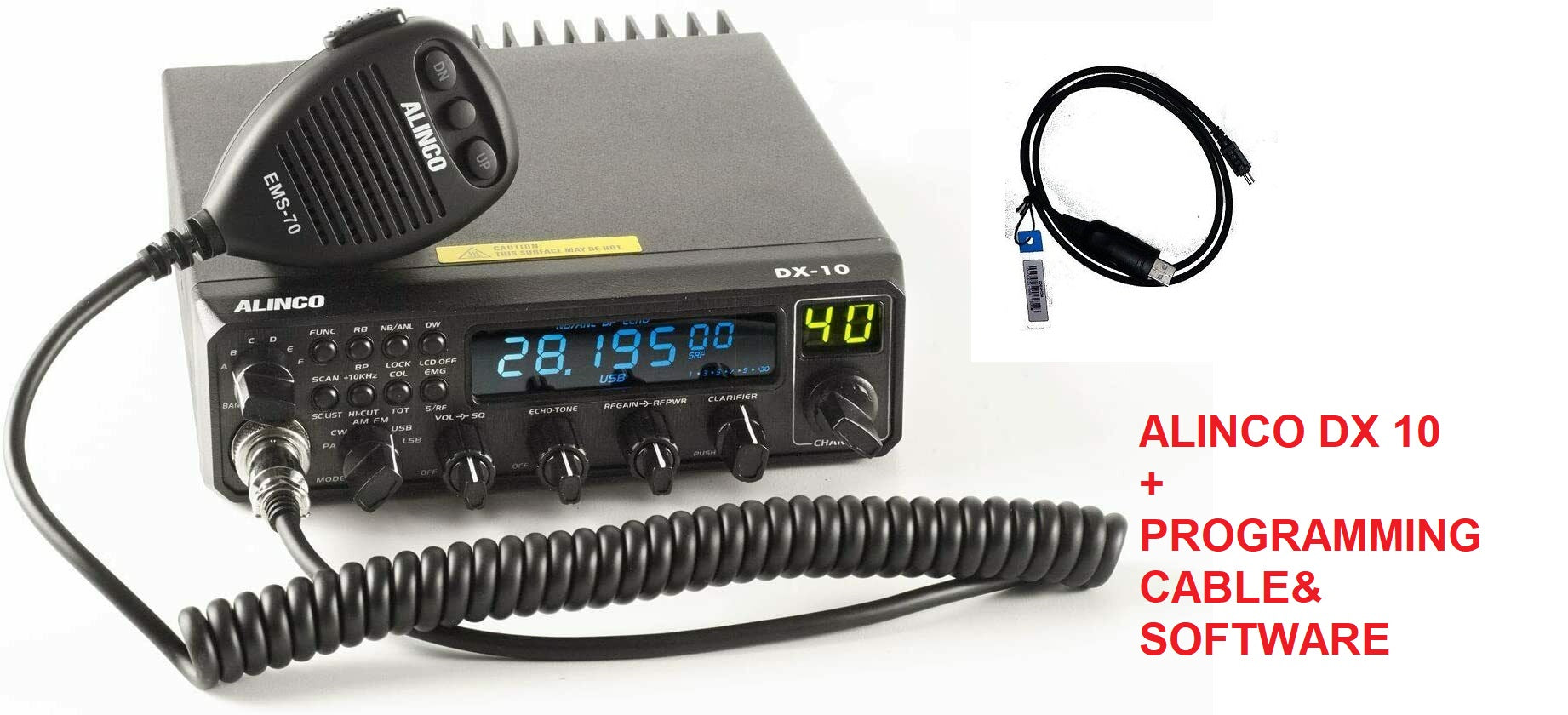

ALINCO DX-10 Ham Radio SSB FM AM (CRE 8900) as the dx 135 DX10

The radio comes standard 10m radio 28.000-29.700MHzwhich  requires the appropriate UK  licence. It will NOT cover any 11m bands, but can be expanded to cover approx. 24.8-30MHz including the UK 40

• FOR HF & CB - users understanding of the UK laws. DONE ON REQUEST WHEN BUYING.

PRE PROGRAMED BANDS

BAND A: 25.615 TO 26.055

BAND B: 26.065 TO 26.505

BAND C: 26.515 TO 26.955

BAND D: 26.965 TO 27.405

BAND E: 27.415 TO 27.855

BAND F: UK 40

 all mode AM/FM/SSB mobile transceiver from Alinco. Frequency range (default) 28.000 - 29.700 MHz

Max Frequency range - 25.000-29.90 MHz (programmable for export use)

Power Output 1-12watts FM/FM/CW 0-25watts USB/LSB

Operating modes AM/CW/FM/LSB/USB

Channel spacing 10 Hz/100 Hz / 1 kHz / 10 kHz

Memory 40ch per band (up to 60 per band are programmable via optional software)

Features & Functions

Multi-colour display (7 selectable colours or rainbow mode) with backlight

RF gain

LCD S-meter

SWR meter

NB Noise Blanker and ANL function

Clarifier for fine tuning PC programmable settings +10 KHz offset button Scanning features

Dual Watch function

External speaker socket (3.5mm)

Jack for CW key CW Sidetone 300Hz-3kHz in 10 adjustable steps

Hi-Cut function (RX tone)

Keypad lock

Programmable time-out timer Over-voltage protection

PA facility Reset function

Microphone connector - 6-pin

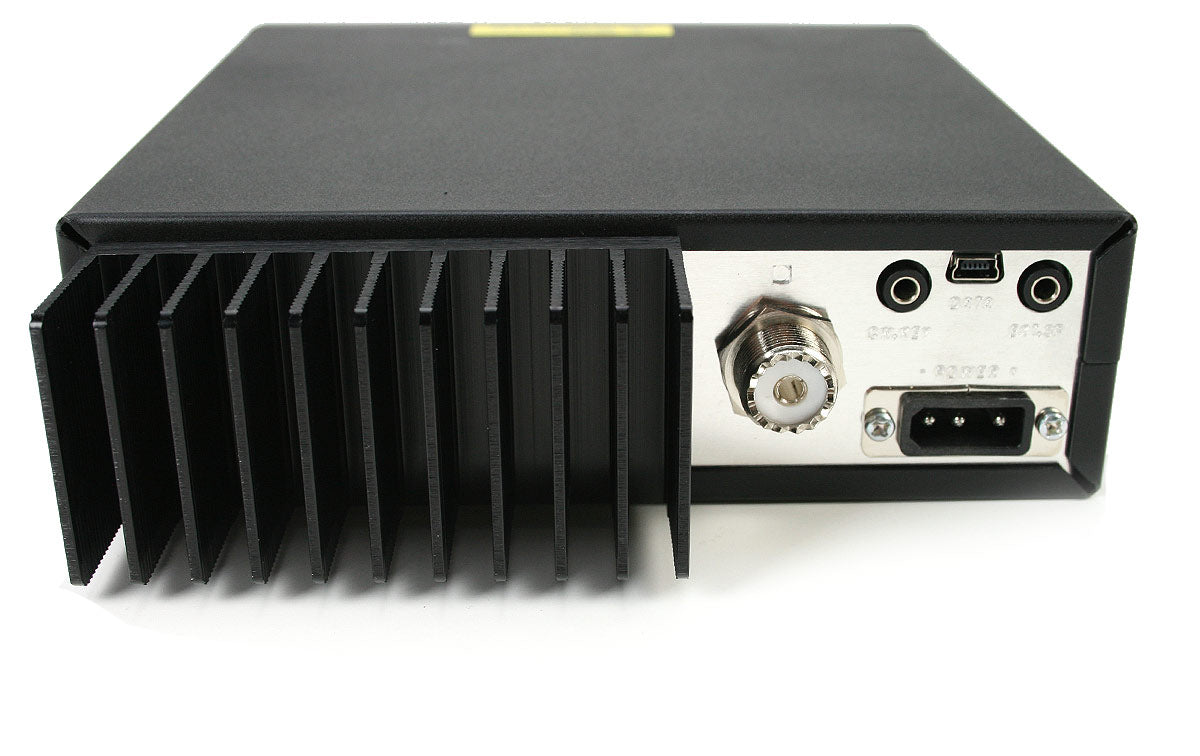

Antenna connector PL-259

connector (SO239)

Power requirements 13.8 VDC + / -15%

Dimensions (WxHxD) 173 x 51 x 238 mm

Weight 1.5 kg
