Alinco DJ VX50 HE VHF/UHF Handheld Transceiver

  • £84.95
Tax included.

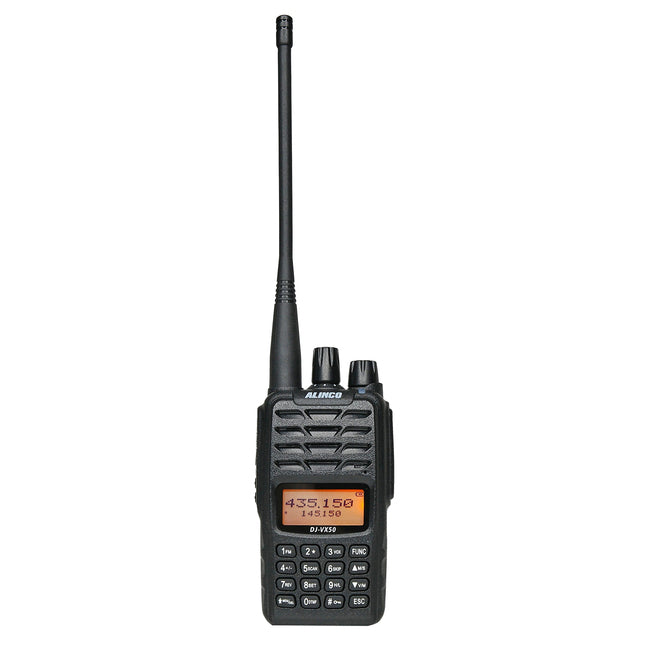

Alinco DJ VX50

new model from

ALINCO. DJ-VX50-HE is a rugged dual band 2m / 70cm amateur handheld radio. The unit can also play air radio in AM modulation as well as FM radio on the reception side. waterproof housing and thus ideal for outdoor use (housing complies with IP-67 standard)

Technical specifications

Frequency range TX (transmitter) 144-145,995 / 430-439,995 MHz (expandable 136-174 / 400-470 MHz) Frequency range RX (receiver) 144-145,995 / 430-439,995 MHz (expandable 136-174 / 400-470 MHz)

FM radio 76-108 MHz Radio 118-135.995 MHz 10 NOAA Weather Channels 161,650 - 163,275 MHz

Transmission power / output power VHF 5W / 2W / 1W switchable UHF 4W / 2W / 1W switchable

Operating Modes / Modulation TX: NFM, FM (16K0F3E, 11K0F3E) RX: NFM, FM, WFM, AM Channel Grid /

Channel Steps 2.5 / 5 / 6.25 / 10 / 12.5 / 20/25/30/50 kHz (FM radio only 50 kHz / radio only 5 kHz)

Memory channels 200 alphanumerically writable memory locations Features & Functions

Punk matrix display with selectable illumination color (orange, blue, purple)    Keyboard with backlight

Ringing tone for relay selectable 1750 Hz / 1450 Hz / 1000 Hz / 2100 Hz     CTCSS & DCS coder & decoder     DTMF (programming required)     repeater shift     VOX function (different sensitivity levels selectable)     various scan functions

Voice synthesizer for the memory mode (English announcement of the channel number)

Keyboard lock programmable     Monitor function     Squelch manually adjustable     BCLO function

Time-out timer function (30 - 270s)     Battery save function

FM radio reception     Cloning function    Reset function

PC programmable (requires Alinco programming cable ERW-7 option)

Antenna connection  SMA-Female Connection for external audio

accessories / Headset Jack Standard standard (double jack 3.5 / 2.5mm - on the side of the device) Power Supply / Operating Voltage 7.4V DC (with battery pack)

Dimensions in mm (WxHxD) / Dimensions 59 x 118 x 38 (without buttons and antenna)

Weight 230g (with battery pack & antenna)

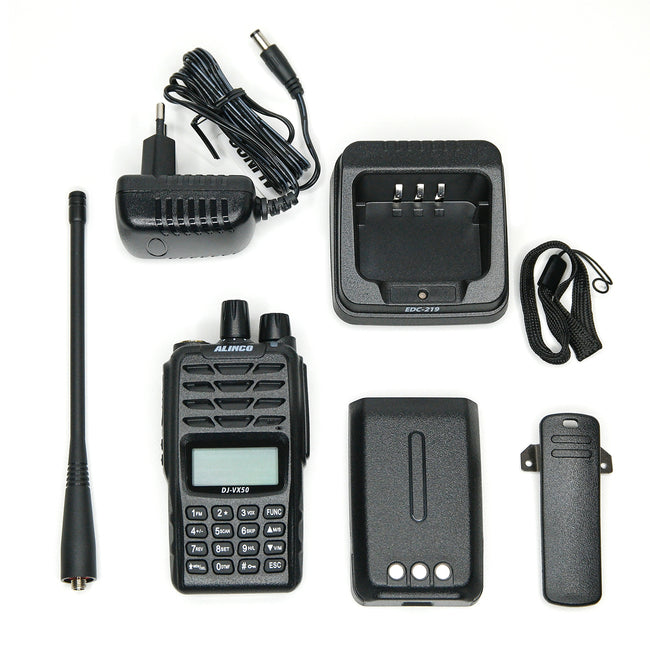

Comes with

ALINCO DJ-VX50HE Transceiver Battery Pack EBP-101 (Li-Ion / 1800mAh)

Fast-charging EDC-219 Plug-in power supply EDC-221 for side loader flexible antenna EA-253

Belt clip EBC-51 wrist strap

Instructions in English and German
