MAAS RS-1000 SWR-PWR Meter

Tax included.

The RS-1000 has two separate input ranges for different frequency ranges.

Technical data

Frequency range	1.8 - 160 MHz / 430-1300 MHz
Performance	up to 400 W (switchable 5 W / 20 W / 200 / 400 W)
Measurement accuracy	@5W Range: +/-5% @ 20W Range: +/-7.5% @ 200W Range: +/-10% @ 400W Range: +/-12.5%

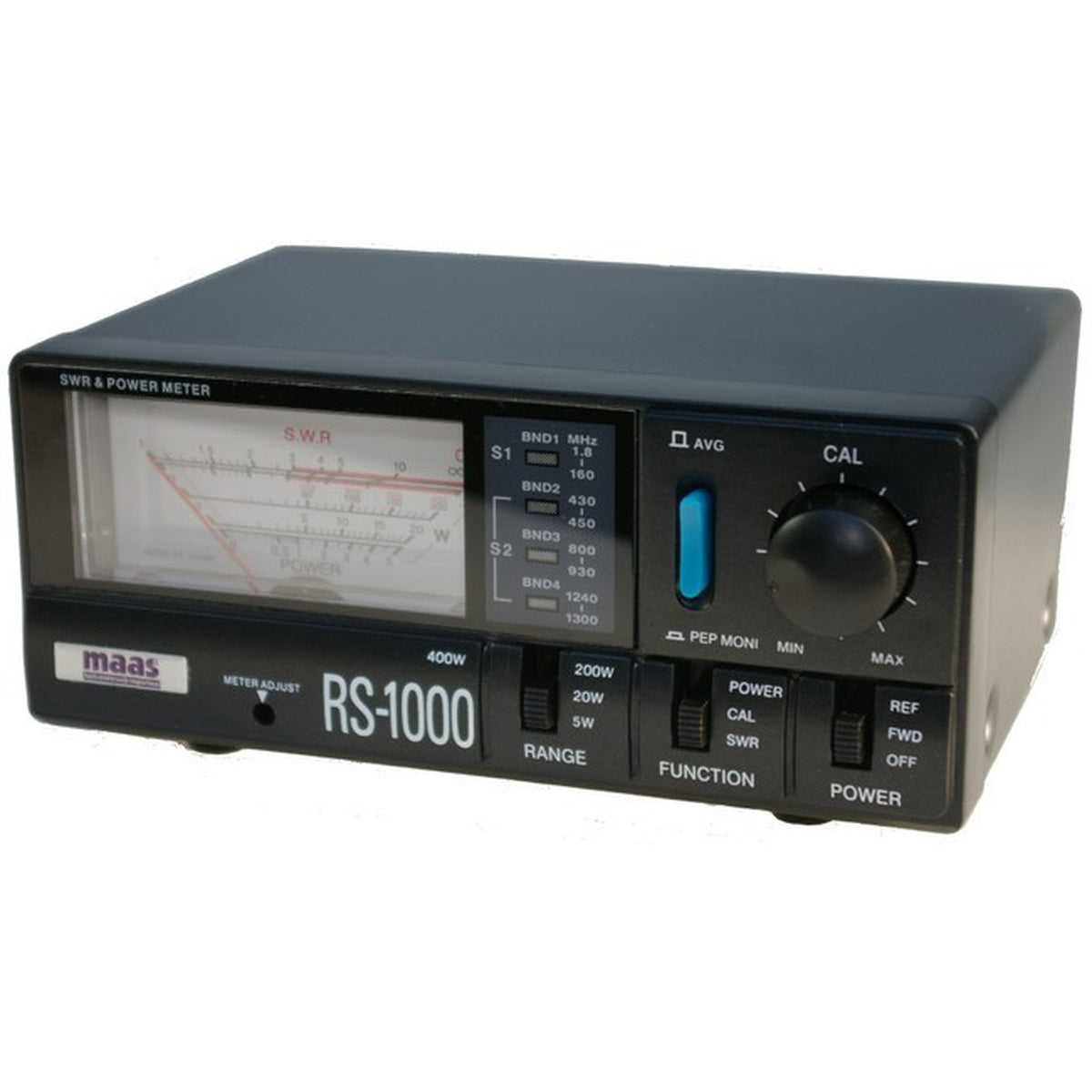

Equipment	Illuminated display instrument (6.7 x 3.5 cm) Display instrument can be readjusted (0 adjustment) AVG Button Display Illumination Power Supply: 13.8V DC DC cable included

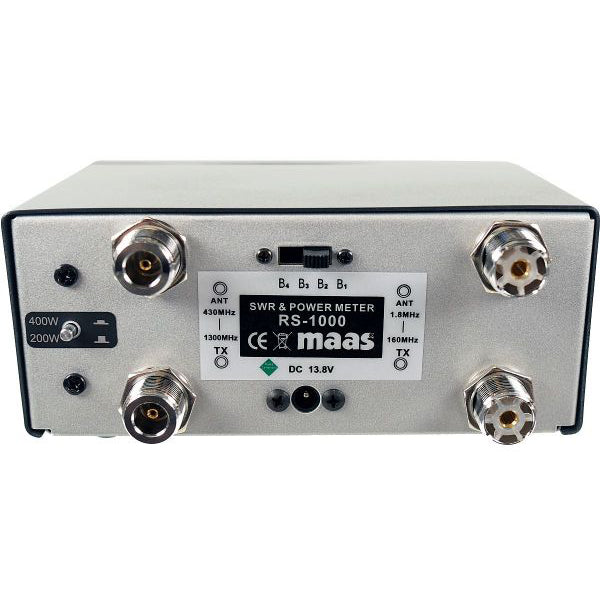

Connections	2 x N-sockets / 2 x PL-sockets Insertion loss: 0.2 dB (1.8 - 160 MHz) / 0.3 dB (430 - 1300 MHz)
Dimensions (W x H x D in mm)	152 x 68 x 102 (without protruding parts)
Weight	900 g
