PRESIDENT WALKER 11 ASC TRANSCEIVER MULTI STANDARD FM AM EU UK CB RADIO

PRESIDENT WALKER 11 ASC TRANSCEIVER MULTI STANDARD FM AM EU UK CB RADIO

Tax included.

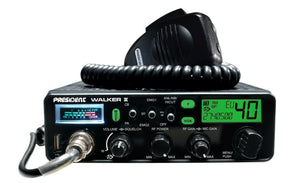

PRESIDENT WALKER ASC TRANSCEIVER MULTI STANDARD FM AM EU UK CB RADIO

CB radio with Multi colour display screen

The New President Walker II. is like the original Walker but with an analogue signal strength meter and rotary channel change.

However it is a completely different radio, with a multi feature LCD display that include both channel & frequency readout.

New features include:  digital SWR meter, 7 colour display, variable power, USB charge socket, roger bleep, talk back & electret/dynamic mic selection.
Features

  •     40 channels AM / FM

  •     Channel rotary switch

  •     Volume adjustment and ON/OFF

  •     Manual squelch and ASC

  •     Multi-functions LCD display

  •     Frequencies display

  •     S/RF vu-meter

  •     Public Address

  •     Scan

  •     Talkback

  •     Beep Function

  •     Roger Beep

  •     Tone

  •     ANL filter, NB, HI-CUT

  •     RF Gain / Mike gain

  •     RF Power

  •     Mic type electret / dynamic

  •     F function key

  •     VOX

  •     Mode switch AM / FM

  •     Preset emergency (EMG 1/2)

  •     SWR (Power Reading /SWR)

  •     Front microphone plug

  •     External loudspeaker jack

  •     USB 5V 2.1A

    SPECIFICATIONS

  •     Modulation modes: AM / FM

  •     Frequency ranges: all EU bands plus UK band

  •     Antenna impedance: 50 Ohms

  •     Power supply: 12 V

  •     Size: 170 (L) x 160 (H) x 52 (D) mm

  •     DIN Size: Yes

  •     Weight: 1.1 kg

  •     Accessories supplied:   power cord with fuse

    TRANSMITTER

  •     Frequency allowance: +/- 200 Hz

  •     Carrier power: 4 W AM / 4 W FM

  •     Transmission interference: <4 nW (- 54 dBm)

  •     Audio response: 300 Hz to 3 KHz in AM/FM

  •     Emitted power in the adj. channel : < 20 W

  •     Microphone sensitivity: 3.0 mV

  •     Drain: < 2 A (with modulation)

  •     Modulated signal distortion: 1.8 %
     RECEIVER

  •     Max. sensitivity at 20 dB sinad:

  •           0.5 µV - 113 dBm (AM)

  •           0.35 µV - 116 dBm (FM)

  •     Frequency response: 300 Hz to 3 kHz in AM/FM

  •     Adjacent channel selectivity: 60 dB

  •     Maximum audio power: 3 W

  •     Squelch sensitivity:

  •           Minimum 0.2 V - 120 dBm

  •           Maximum 1 mV - 47 dBm

  •     Frequency image rejection rate: 60 dB

  •     Intermediate frequency rej. rate: 70 dB

  •     Drain: 180 ~ 500 mA maximum
