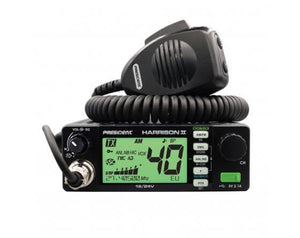

PRESIDENT HARRISON II AM/FM MOBILE CB TRANSCEIVER

PRESIDENT HARRISON II AM/FM MOBILE CB TRANSCEIVER

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance transceiver equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT HARRISON II is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users.

Features:

• Rotary Channel Selector

• Volume Adjustment and ON/OFF

• Manual Squelch

• ASC

• LCD Multifunction Display

• Frequencies Display

• Digital S-Meter

• Public Address

• Talkback

• VOX Function Handsfree

• Automatic SWR Meter

• Tone

• ANL Filter, NB and HI-CUT

• NRC

• Noise Gate

• Scan

• Scan Skip

• Dimmer

• F / Menu Function Key

• Key Beep

• Roger Beep

• Key Locking

• SWR (Power Reading /SWR)

• Preset Channel: EMG 1&2 (customizable)

• Repeater / Relay (only D band)

• External VOX Microphone Jack

• External Loudspeaker Jack

• Micro Type (Electret / Dynamic)

• Back Light Colours: Orange, Green, Indigo, Turquoise, Yellow, Pink, Light Blue

General Specifications:

• Number of Channels: 40

• Modulation Modes: AM / FM

• Frequency Ranges: from 26.965 MHz to 27.405 MHz

• CTCSS: 38 tones

• DCS: 104 codes

• Antenna Impedance: 50 ohms

• Power Supply: 12 V / 24 V

• Size: 125 (L) x 45 (H) x 165 (D)

• Weight: 0.9 kg

• Microphone Plug: front (6 pins)

• USB 5V 2.1A

Transmission Specifications:

• Frequency Allowance: +/- 200 Hz

• Carrier Power: 4 W AM / 4 W FM

• Transmission Interference: inferior to 4 nW (- 54 dBm)

• Audio Response: 300 Hz to 3 KHz

• Emitted Power in the Adj. Channel: inferior to 20 μW

• Microphone Sensitivity: 7 mV

• Drain: 1,7 A (with modulation)

• Modulated Signal Distortion: 1,8 %

Reception Specifications:

• Maxi. Sensitivity at 20 dB sinad: 0.5 μV - 113 dBm

• Frequency Response: 300 Hz to 3 kHz

• Adjacent Channel Selectivity: 60 dB

• Maximum Audio Power: 2 W

• Squelch Sensitivity: minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm

• Frequency Image Rejection Rate: 60 dB

• Intermediate Frequency Rej. Rate: 70 dB

• Drain: 300 mA nominal / 750 mA maximum

Accessories Supplied:

• 1 Microphone UP/DOWN and its hanger

• Mounting Cradle

• Screws
