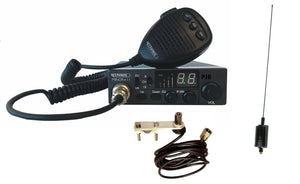

MOONRAKER MINOR II PLUS CB Radio 12v 24v Flat Bar Mirror Mount & Multi Colour Mini Stinger

Moonraker Minor 11 PLUS 80 Channel CB Radio

Specifications:

• Frequency Range : 26.965-27.405 & 27.60125-27.99125 MHz
• Channels 80 FM * 2
• Frequency control P.L.L.
• Operating temperature -10°/+55°C
• DC input voltage 13.8Vdc ±15%
• Size 38mm (h) x 115mm (W) x 150mm (D)
• Weight 0.8 kg

TRANSMITTER

• System CPU controlled P.L.L. synthesizer
• Maximum RF power 4W at 13.8Vdc
• 1.8 KHz ±0.2 KHz (FM)
• ANT impedance 50 ohm unbalanced
• Current drain 1000mA (at no modulation)

RECEIVER

• System CPU controlled Double conversion super
• IF 1° 10.7 MHz / 2° 450 KHz
• Sensitivity -120dBm for 12dB SINAD (FM)
• -107dBm for 12dB SINAD (AM)
• Audio output @10% THD 2.5W at 8 ohm
• Audio distortion <8% at 1 KHz
• Image rejection 65dB
• Adjacent channel 85dB
• Signal rise ratio 45dB
• Current drain 220mA (stand-by)
