MAAS SPS 9600 60 amp PSU Switch Mode Power Supply 60 Amps
MAAS SPS 9600 60 amp PSU Switch Mode Power Supply 60 Amps

MAAS SPS 9600 60 amp PSU Switch Mode Power Supply 60 Amps

Tax included.

MAAS SPS 9600 60amp Switch Mode Power Supply

 60 Amps PSU

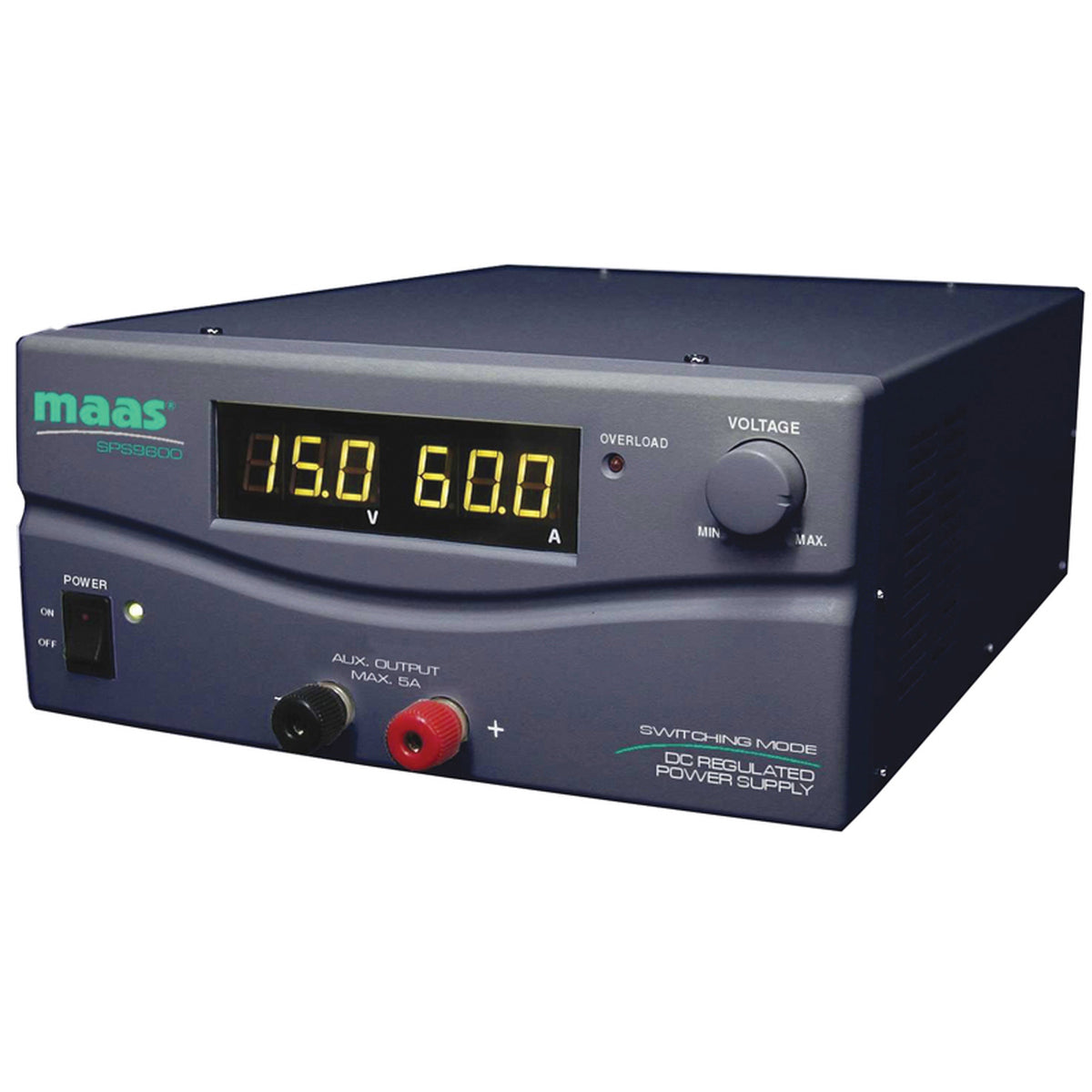

High Power 60 Amp switch-mode power supply with two digital LED measuring instruments for precise display of voltage and current.

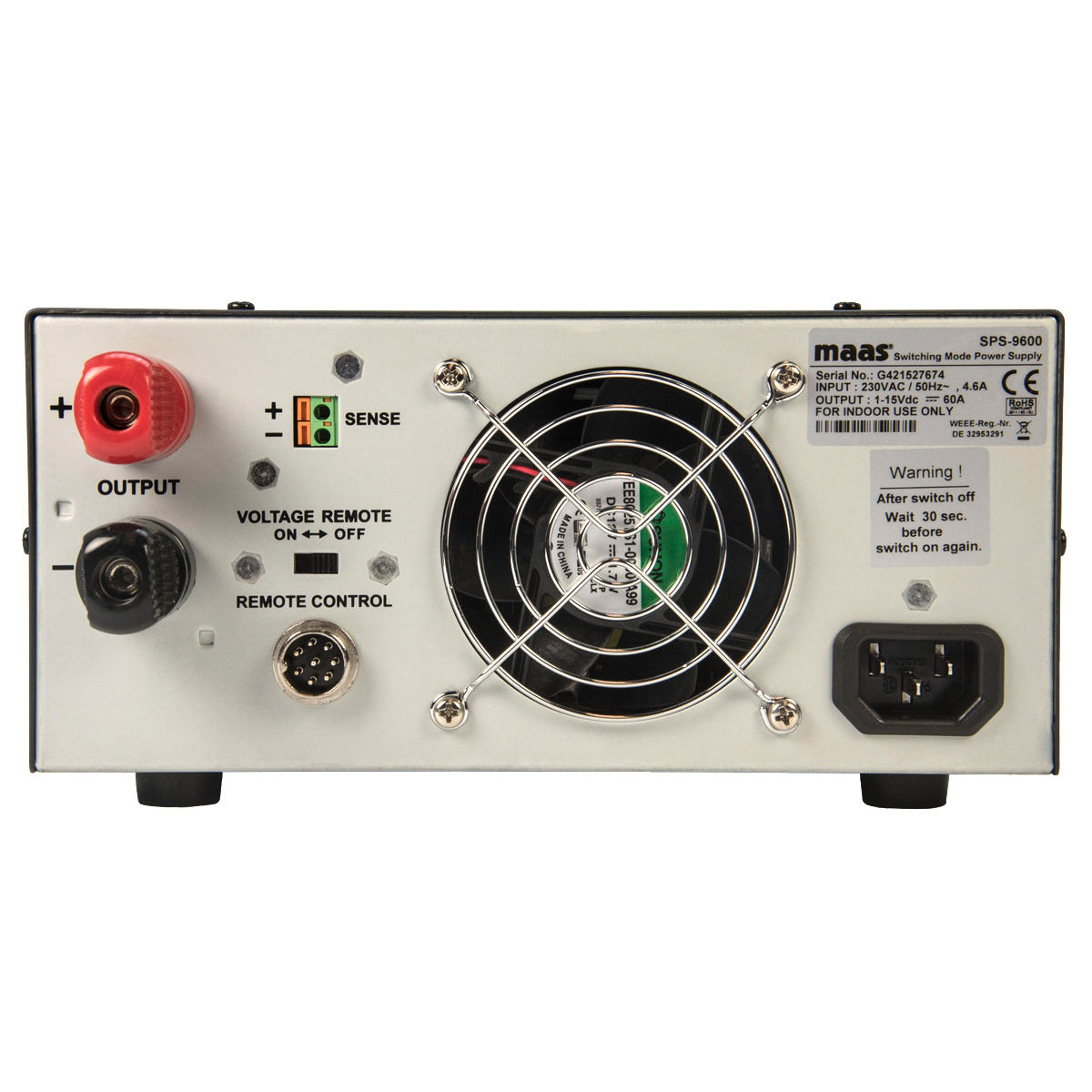

Can also be used as a powerful laboratory power supply. Remote control and sense connectors on the back.

Technical data

Operating voltage

  • 230 V AC/ 50 Hz

Output voltage

  • 1-15 Volt DC adjustable

Output current

  • 60 A (rear)

  • 5 A (front)

Ripple & Noise

  • max. 50mVss

Main Output Load Control

  • 0.1% + 5mV

Input Voltage Control, Main Output

  • 0.05% + 3mV

Displays & Gauges

  • 3 Digit LED Digital Meter for Voltage and Current

  • Display Accuracy +/-1% + 1 Digit

  • LED for indicating operating states (red / green)

DC Sockets

  • 4mm banana plug front sockets (up to 5 amps)

  • High-current sockets on the back (up to 60 amps)

Cooling

  • Fan

Security

  • Protection functions against overload, short circuit, overheating, as well as overvoltage (output voltage protection at 16.5 volts)

Equipment

  • dark grey metal housing with rubber feet

  • AFC (Active Power Factor Correction) enables a power factor > 0.97 at optimal load

  • High RFI stability

  • Sense connector on the back for automatic voltage corrector

  • Remote control socket on the back for regulating the output voltage with an external voltage source

Dimensions (WxHxD)

  • 220 x 110 x 360 mm

Weight

  • 5.8 kg.


Attention: Not suitable as a charger
