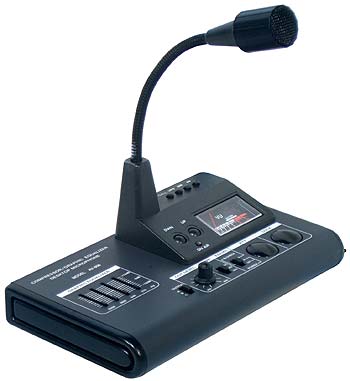

Hoxin AV 908 DESKTOP COMPRESSOR MICROPHONE PLUS FREE ICOM CABLE

Hoxin AV 908 DESKTOP COMPRESSOR MICROPHONE PLUS FREE ICOM CABLE

  • £99.35
Tax included.

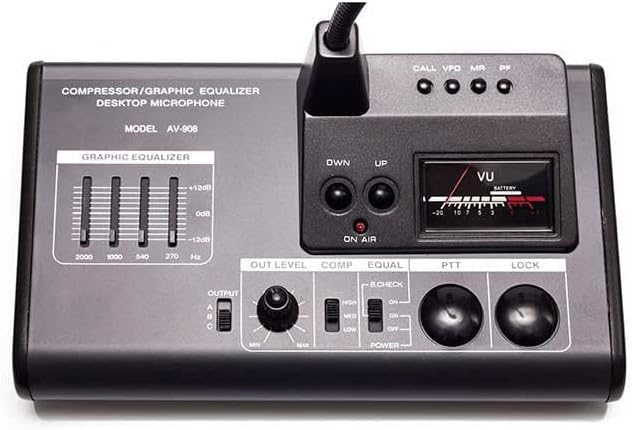

High Sensitivity Ceramic Microphone Elements equipped High Quality Compressor Amplifier (High, Med., Low Selectable) built-in.It sends out always constant and optimum Level without distortion regardless of audio input level Equipped with Graphic Equalizer for Optimum Audio Quality Control.The Audio Quality can be controlled by 4 Element Graphic Equalizer with Center Frequencies of 270, 540, 1000 And 2000Hz. It gives best Audio Quality for FM mode and Maximum efficiency for SSB mode DXNon-Modulation Prevention Circuit built-in After continuous transmitting for a few minutes, the alarm circuit will be activated with alarm sound for 30 seconds.Then, the condition returns to the receiving mode automatically Battery-Check Circuit built-in Press the power switch and the level meter indicates the battery condition with power voltage for a few secondsSPECIFICATIONSMicrophone:High Sensitivity Ceramic Mic.Element Compressor Level: HIGH: 45 dB, MED: 30 dB, LOW: 10 dBS/N Ratio (Graphic Equalizer Part): 80dB Distortion Factor (Graphic Equalizer Part): 0.05%(at flat)Graphic Equalizer: 4 elements (270,540,1000,2000Hz) +12dB rangeOutput Voltage:COMP: 0- 30mV (RMS) Matching Output Impedance: 500 ohms äóñ 100K ohmsPower Voltage: DC 6~9 V Current Consumption: Receiving: 3.5mA (at Equalizer äóìOffäó�)Transmitting: 4.5mA (at Equalizer äóìOffäó�) Receiving: 10mA (at Equalizer äóìOnäó�)Transmitting: 11mA (at Equalizer äóìOnäó�)Alarm Sound: Approx. 4.5KHz Intermittent ToneExternal Size: 227(W) x 130(D) x 320(H) mmWeight: Approx. 1000 gr.COMES WITH FREE ICOM CABLE
