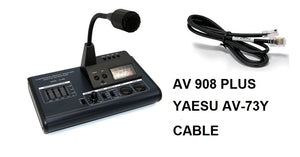

AVAIR AV 908 DESK BASE COMPRESSOR MICROPHONE CB HAM RADIO + YAESU AV73Y CABLE
AVAIR AV 908 DESK BASE COMPRESSOR MICROPHONE CB HAM RADIO + YAESU AV73Y CABLE
AV 908 DESKTOP COMPRESSOR MICROPHONE
HIGH SENSITIVITY CERAMIC MICROPHONE ELEMENTS EQUIPPED HIGH QUALITY COMPRESSOR AMPLIFIER (HIGH, MED. LOW SELECTABLE) BUILT-IN. IT SENDS OUT ALWAYS CONSTANT AND OPTIMUM LEVEL WITHOUT DISTORTION REGARDLESS OF AUDIO INPUT LEVEL EQUIPPED WITH GRAPHIC EQUALIZER FOR OPTIMUM AUDIO QUALITY CONTROL. THE AUDIO QUALITY CAN BE CONTROLLED BY 4 ELEMENT GRAPHIC EQUALIZER WITH CENTRE FREQUENCIES OF 270, 540, 1000 AND 2000HZ.
IT GIVES BEST AUDIO QUALITY FOR FM MODE AND MAXIMUM EFFICIENCY FOR SSB MODE DX NON-MODULATION PREVENTION CIRCUIT BUILT-IN AFTER CONTINUOUS TRANSMITTING FOR A FEW MINUTES, THE ALARM CIRCUIT WILL BE ACTIVATED WITH ALARM SOUND FOR 30 SECONDS. THEN, THE CONDITION RETURNS TO THE RECEIVING MODE AUTOMATICALLY BATTERY-CHECK CIRCUIT BUILT-IN PRESS THE POWER SWITCH AND THE LEVEL METER INDICATES THE BATTERY CONDITION WITH POWER VOLTAGE FOR A FEW SECONDS
SPECIFICATIONS MICROPHONE:
HIGH SENSITIVITY CERAMIC MIC.
ELEMENT COMPRESSOR LEVEL: HIGH: 45 DB, MED: 30 DB, LOW: 10 DB S/N RATIO (GRAPHIC EQUALIZER PART): 80DB
bendable gooseneck microphone
integrated VU me
ter
UP-down buttons
Power ON-OFF button
Compressor level switchable in 3 steps (10 dB / 30 dB / 45 dB)
Intercom button (PTT)
LOCK button
Power supply 6 - 9V DC
Dimensions 227 x 130 x 320mm
Various connection cables available as options (for Icom, Yaseu, Kenwood, Alinco)
Weight: approx. 1 kg EAN.: 4250158722262 Weight: 1 kg
ALSO KNOWN AS ADONIS AM-708E OR MFJ-299
AVAIR AV-73Y MICROPHONE CABLE FOR YAESU
Cable length: 1 m
Type: 8-pin RJ
Weight: 6 g
