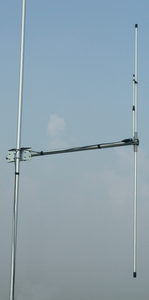

SIRIO SD-FM DIPOLE 87-194 MHZ

 Data:

• Type:1/2 λ
• Radiation: Directional
• Polarization: Linear Vertical or Horizontal
• Frequency range: 87 - 194 MHz Tunable
• Systems:6m-HAM, 2m-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
• Gain:1.85 dBd - 4 dBi (vertical polarization only)
• Bandwidth:≥ 14.5MHz @ SWR ≤ 1.5
• Max Power:300 W (CW)Grounding protection:All metal parts are DC-grounded, the inner conductor is coupled capacitively
• Connector:UHF-female (SO-239)

Mechanical Data:

• Materials:Aluminium, Chromed brass, Galvanized steel, Zamak
• Dimensions (approx):1600 x 1030 mm / 5.25 x 3.38 ft
• Weight (approx):1850 gr / 4.08 lb
• Mounting type: On-Mast
