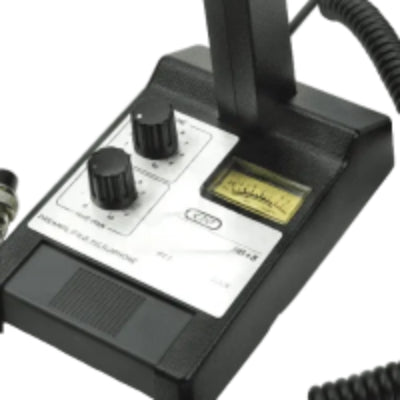

K-PO MB+5 P6 BASE POWER ECHO MICROPHONE

The K-PO MB+5 P6 is a robust desk microphone designed for CB and amateur radio use. It features rotary controls for precise adjustment of volume and tone, allowing you to set the audio to your personal preference.

The microphone connector is pre-wired for use with most standard 6-pin CB radio's, for example the Midland Alan 48 PRO, President Barry II+ and other radios

Electrical data

• Frequency response: 250 – 3500 Hz
• Output level: -23 (0 dB = 1V/μB)
• Impedance: 0 – 5000 Ohm
• Battery: 9 Volt battery 6LR61 (not included
• Mike gain function: Yes
• Tone function: Yes
• Microphone type: Power microphone
• Mechanical data

  • Microphone connector: 6-pin
  • Length: 95 mm
  • Height: 230 mm
  • Width: 160 mm
  • Weigth: 1100 gram
  Microphone wiring

  • Mic Audio: Pin 1
  • Receive: Pin 2
  • Transmit: Pin 3
  • Not connected: Pin 4
  • Ground: Pin 5
  • Not connected: Pin 6
