Nissei DG 503 N Digital SWR Meter HF/50/144/525 Mhz Digital SWR Wattmeter

NISSEI DG 503 N DIGITAL SWR METER HF/50/144/525 MHZ DIGITAL SWR WATTMETER

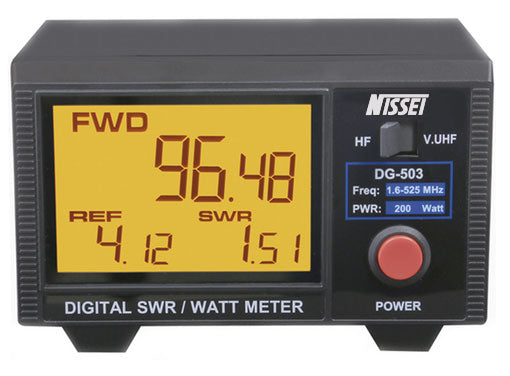

THE DG-503 N WORKS IN THE 1.6 TO 60 MHZ AND 125 TO 525 MHZ BANDS, WITH A POWER OF 0 TO 200 W, MEASURES AND DISPLAYS SIMULTANEOUSLY ON THE LARGE 3.5-INCH BACKLIT DISPLAY DIRECT POWER, REFLECTED POWER AND VSWR.

FEATURES SEPARATE INPUTS AND OUTPUTS WITH FRONT SELECTABLE SO-239 CONNECTORS FOR THE HF/6 M AND 144/430 MHZ BAND. INSERTION ATTENUATION LESS THAN 0.1DB.

DIMENSIONS 140 X 84 X 122 MM.

WEIGHT 750 GRAMS.

INCLUDED IN THE PACKAGE: USER MANUAL IN ITALIAN (ENGLISH LANGUAGE NOT GUARANTEED).

FEATURES SEPARATE INPUTS AND OUTPUTS WITH FRONT SELECTABLE SO-239 CONNECTORS FOR THE HF/6 M AND 144/525 MHZ BAND.

LESS THAN 0.1 DB INSERTION ATTENUATION.

DIMENSIONS 140 X 84 X 122 MM

WEIGHT OF 750G

MAX POWER: 200 W

POWER SUPPLY: 13.8 V.C.C.

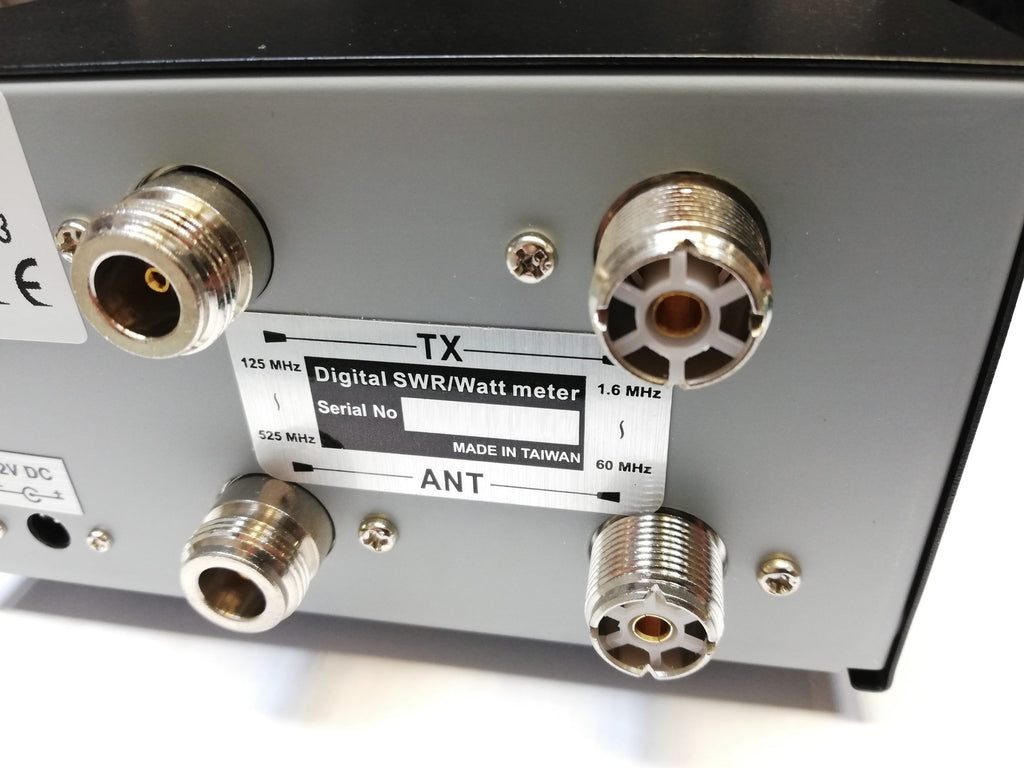

CONNECTORS: 2 PL AND 2 N

INCLUDED IN THE PACKAGE: USER MANUAL IN ITALIAN (ENGLISH LANGUAGE NOT GUARANTEED) AND 12 VDC POWER CABLE FOR THE DISPLAY BACKLIGHT
