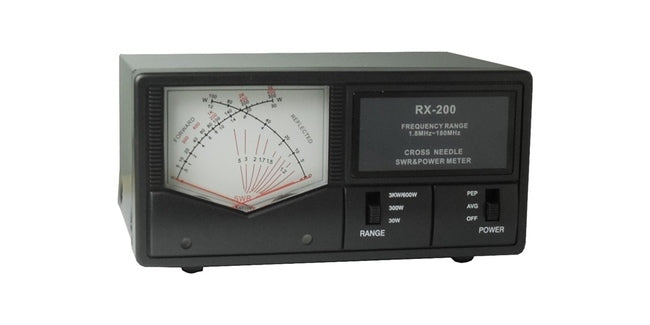

MAAS RX 200 SWR & PWR Meter 1.8 - 180 MHz

SWR and Power meter with cross needle movement.

Specifications

Frequency range 1.8 - 180 MHz

power 0.5W - 3 KW (switchable 30 W / 300 W / 3 KW)

Minimum power for SWR measurement: 0.5 W Measurement accuracy @ 30W Range: +/- 5% @ 300W Range: +/- 5% @ 3 KW Range: +/- 7.5%

Equipment Backlit display instrument (13 V DC lighting)

AVG / PEP switchover

DC cables included

Connections PL sockets

Insertion loss: 0.2 dB

Dimensions (W x H x D in mm) 150 x 65 x 100 (not including protrusions)

weight approx 630g
