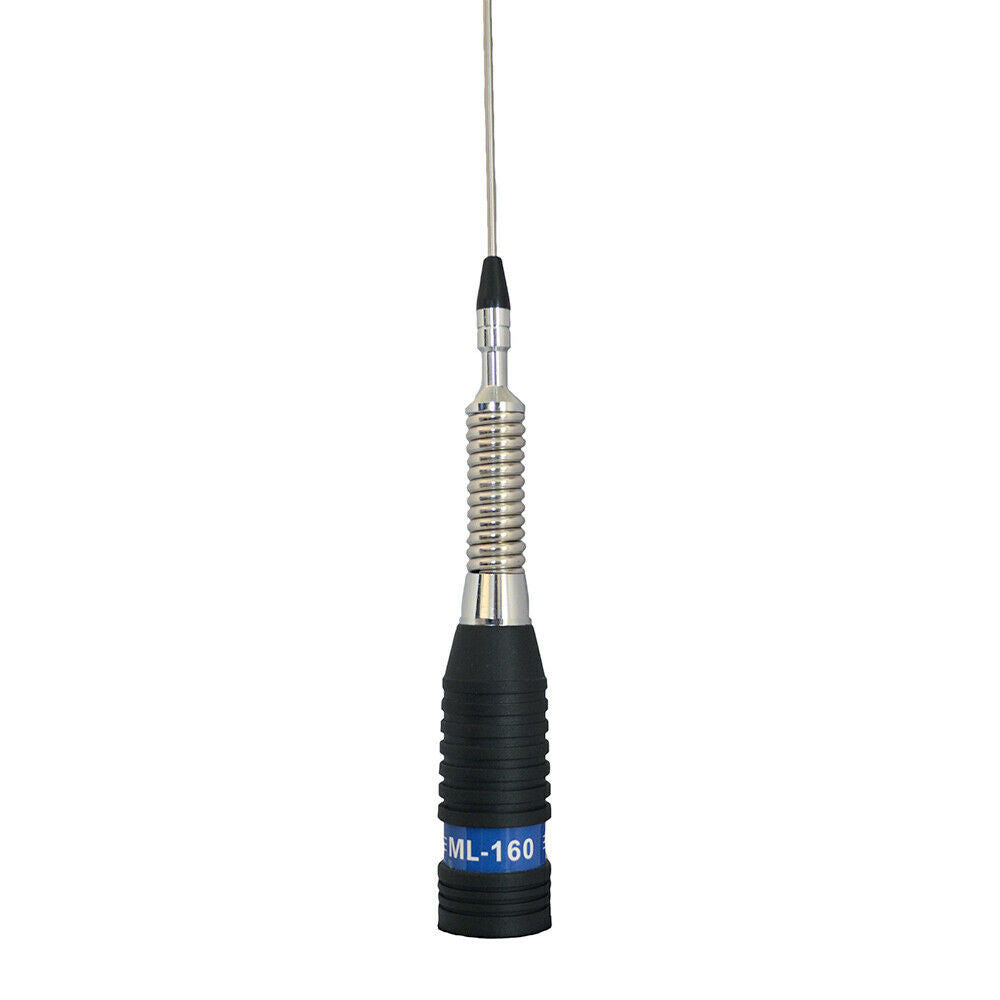

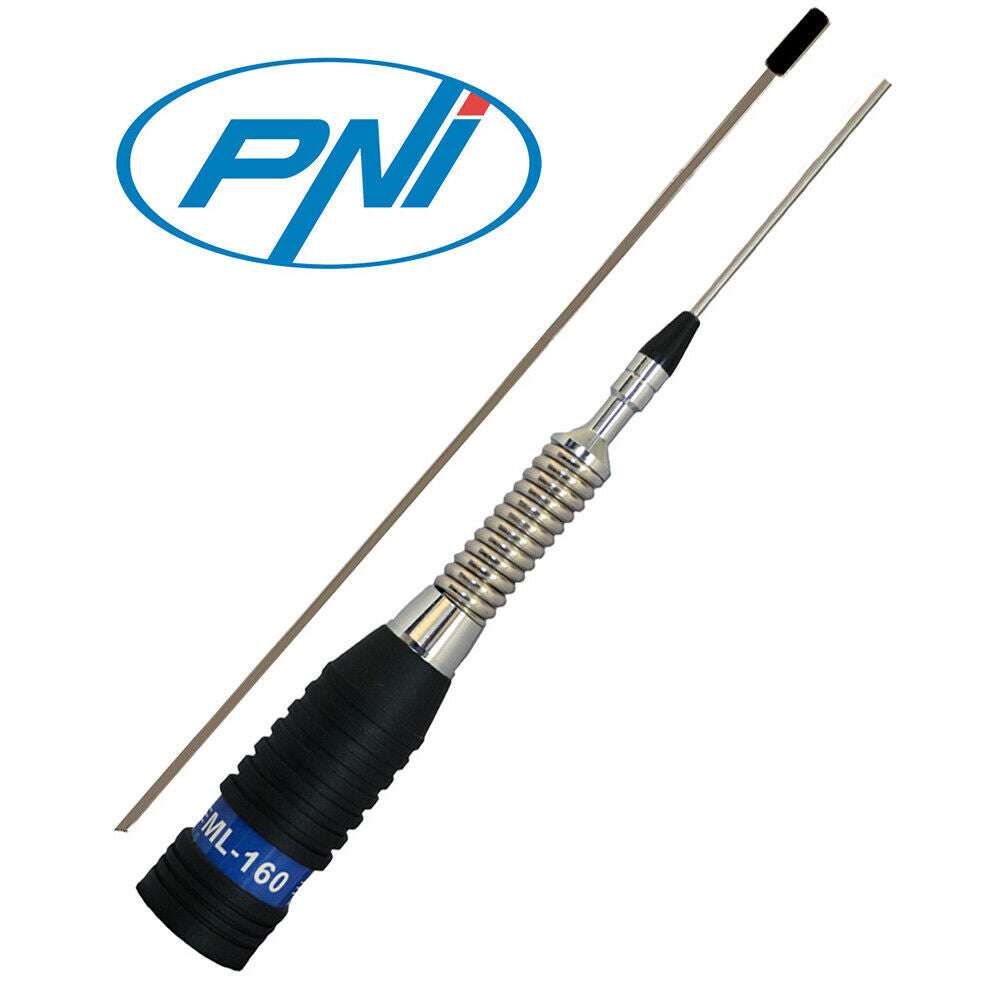

CB PNI ML 160 antenna, length 145 cm, 26-30MHz, 600W

CB PNI ML 160 antenna, length 145 cm, 26-30MHz, 600W

performances

The performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel etc.

Length

Antenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm.

General characteristics

Working frequency 26 - 30 MHz
Number of channels 90
Maximum power applied 600W
S.W.R. minimum in the center of the band less than 1.2: 1
length 145cm
Impeding 50 Ohm
Material Stainless steel
Tip connector PL259
Hole diameter (mm) 16 mm
Weight 280 g
Antenna length (framing) 101 - 170 cm
Dimensions 168x10x4 cm
Operating temperature -26 ° C ~ + 60 ° C
