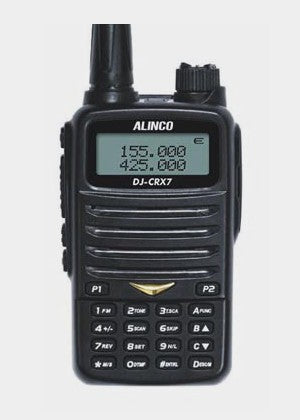

ALINCO DJ-CRX7 VHF/UHF DUAL BAND TRANSCEIVER 2m 70cm

ALINCO DJ-CRX7 VHF/UHF DUAL BAND TRANSCEIVER 2m 70cm

The Alinco DJ-CRX7 HE is a compact and lightweight dual band VHF/UHF walkie talkie for ham radio amateurs that comes loaded with advanced features, professional quality and powerful output up to 5W (VHF) / 4W (UHF) along with a variety of tone bursts CTCSS, DTMF, DCS codes for repeater access or selective calling. Other advanced features include: direct frequency entry, alphanumeric channel labels and 200 memory channels, Busy Channel Lockout (BLCO), Auto Power Off function, and Timeout timer (TOT), among others.

Notable in the DJ-CRX7 is its powerful 1W speaker that offers loud and clear sound, as well as its 1800 mAh lithium-ion battery that is capable of providing an operating autonomy of up to 15 hours. Alinco DJ-CRX7 looks simple, but hides a large number of professional-level features, such as the ability to clone programming from one device to another using a standard 3.5mm male-male jack cable.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
•Full of advanced features, the DJ-CRX7 offers Professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-CRX7 looks simple, but remember, looks can be deceiving! The DJ-CRX7 places one of the world's most advanced transceivers at your command, at ALINCO's affordable price!

Features:
• Large, dot-matrix, 3 colour-selectable display and keypad
• Semi-Duplex dual band, V/V-U/U and FM broadcast receiver
• 200 memory channels, any mix of VHF/UHF
• Internal VOX and inversion scramble
• Alphanumeric channel labels
• Direct frequency input from keypad
• Professional-grade signalling features
• Variety of scanning modes
• Wide and narrow FM TX/RX
• High power Li-Ion battery pack, stand charger and belt clip included
• Professional-grade signalling features: Including DTMF,CTCSS,DCS,Tone-burst tones with Talk-around, Reverse, BCLO, TOT and more!
• Variety of scanning modes: including Programmed, CTCSS/DCS tone, VFO, FM broadcast and Memory with skip feature.
• Voice compandor: Reduces noise and enhances audio clarity.

Specifications
• RX Frequency Coverage (76-108MHz included): 136-174MHz / 400-438MHz
• TX Frequency Coverage: 144-146MHz / 430-440MHz
• Modulation: F3E(16K0F3E / 11K0F3E / RX only WFM)
• Frequency stability: ±2.5ppm
• Power supply requirement: 7.4V (Battery)
• Current drain (Approx.): 1500mA TX / 300mA receive at Max audio output 80mA squelched
• Usable temperature range: -20～ +55℃ (-4～131°F)
• Channel step: 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz
• Dimensions: 92 x 57 x 35 mm (with battery pack)
• Weight: approx. 213 gram including battery pack and antenna

Transmitter
• Output Power: Approx. 5W(VHF) / 4W(UHF) / 2W / 1W
• Frequency Deviation: ±5kHz / ±2.5kHz
• Spurious emission: -60dB or less

Receiver
• Receiver System: Direct conversion
• Sensitivity (12dB SINAD Wide/Narrow): Wide -12dBu / Narrow -9dBu
• Adjacent Channel Selectivity: Wide More than 65dB / Narrow More than 60dB
• Audio output power: 1W (10% distortion)

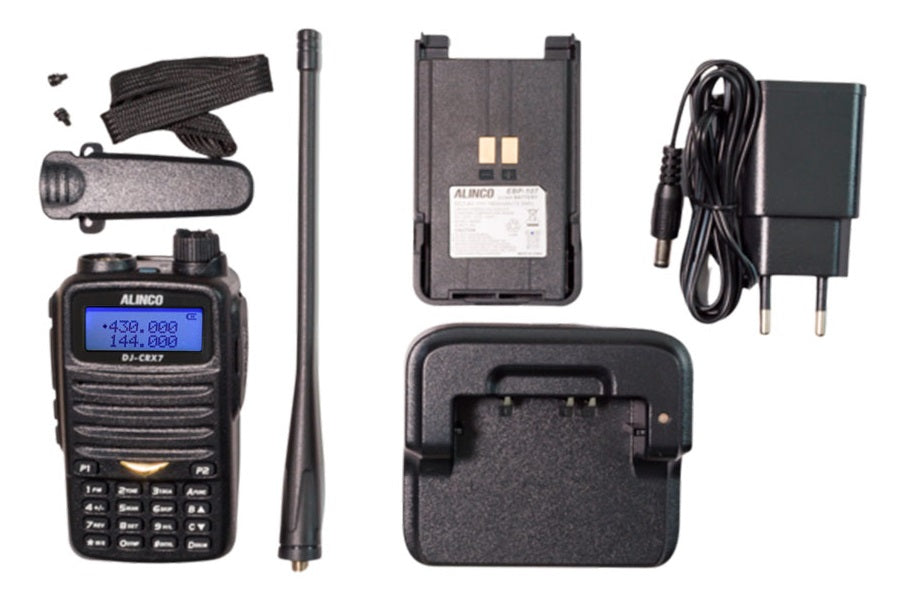

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Battery Pack
1 Pc of Antenna
1 Pc of Rapid Charger
1 Pc of AC Adapter
1 Pc of Belt Clip
1 Pc of User Manual in English
