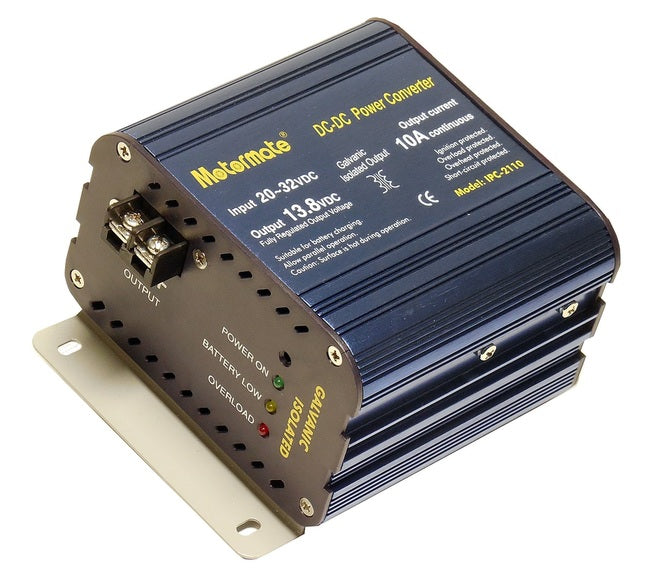

IPC-2114 volt to 12 volt DC/DC Converter Reducer0 2110

This is a galvanically isolated regulated switching power converter (switchmode), designed to allow the use of 12 volt equipment in 24 volt vehicles. In this case "galvanically isolated" means that both the positive and negative inputs are not electrically connected to the output leads because there is a high frequency transformer that seperates the two circuits. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction and recreational equipment. It is convection cooled, and has no fan to suck in dirt or water spray.To determine the amperage you need just add up the watts of all the equipment that will be powered by this DC to DC converter and divide by 13.8 volts.

Specifications and comparisons

Isolated DC/DC Converter

PST-DC210PST-IPC2110

Input Voltage Range22 To 30 V DC20 To 32 V DC

Output Voltage13.8 V DC13.8 V DC

Output Voltage range, factory adjustable12-15 V DC Continuous

Output Current8A

10AMaximum Output Current10A10A

Ripple & Noise (P-P)<100mV< 30mV rmsLoad Regulation350mV< 30mV at terminalsLine Regulation20mV< 20mVIndicators

Power On LEDGreen LED --Power On, Standby Yellow, Input Volgage Low Red, Output Overload

Efficiency> 86%> 90%ProtectionOver Voltage, Overload, Short CircuitOver Voltage, Overload, Short Circuit, Over temperatureOutput Connection TypeFlying LeadsTerminal blockInput Connection

TypeFlying LeadsCable with terminal ringsApprovalsEN55011, EN55022CE

Dimensions (WxHxD)125 x 47 x 120 mm 5 x 1.85 x 4.7 inches 100 x 115 x 70 mm 4 x 4.5 x 2.75 inches

Weight0.65 Kg0.75 Kg, 1.65 lbs

Parallel operationNoYesBattery charging?NoYesTemperature range -20C to +50

Cooling SystemNatural ConvectionNatural ConvectionThis Isolated Ground series provide negative/positive ground reference capablity, allowing connection of negative ground equipment to positive or floating ground battery systems or vice versa. It also offers protection level for itself and to the connected loads. It features protection against transient voltagespikes typically encountered on equipment such as electric fork lifts. Being switchmode, they have high efficiency (>86%), produces little heat and is small in size.

Features:Negative or positive ground referenceHigh efficiency 88%Low profile, high power densityProtection against transient voltage sEMC Interference Immunity22 to 30 V DC input voltageOverload and short circuit protectionOver current protectionLED "power on" indicatorAdvantages: Inexpensive High Current Switchmode DC/DC Converters High efficiency

Excellent line and load regulation Wide input voltage range
