SHARMAN AV-20 VSWR POWER METER HF VHF

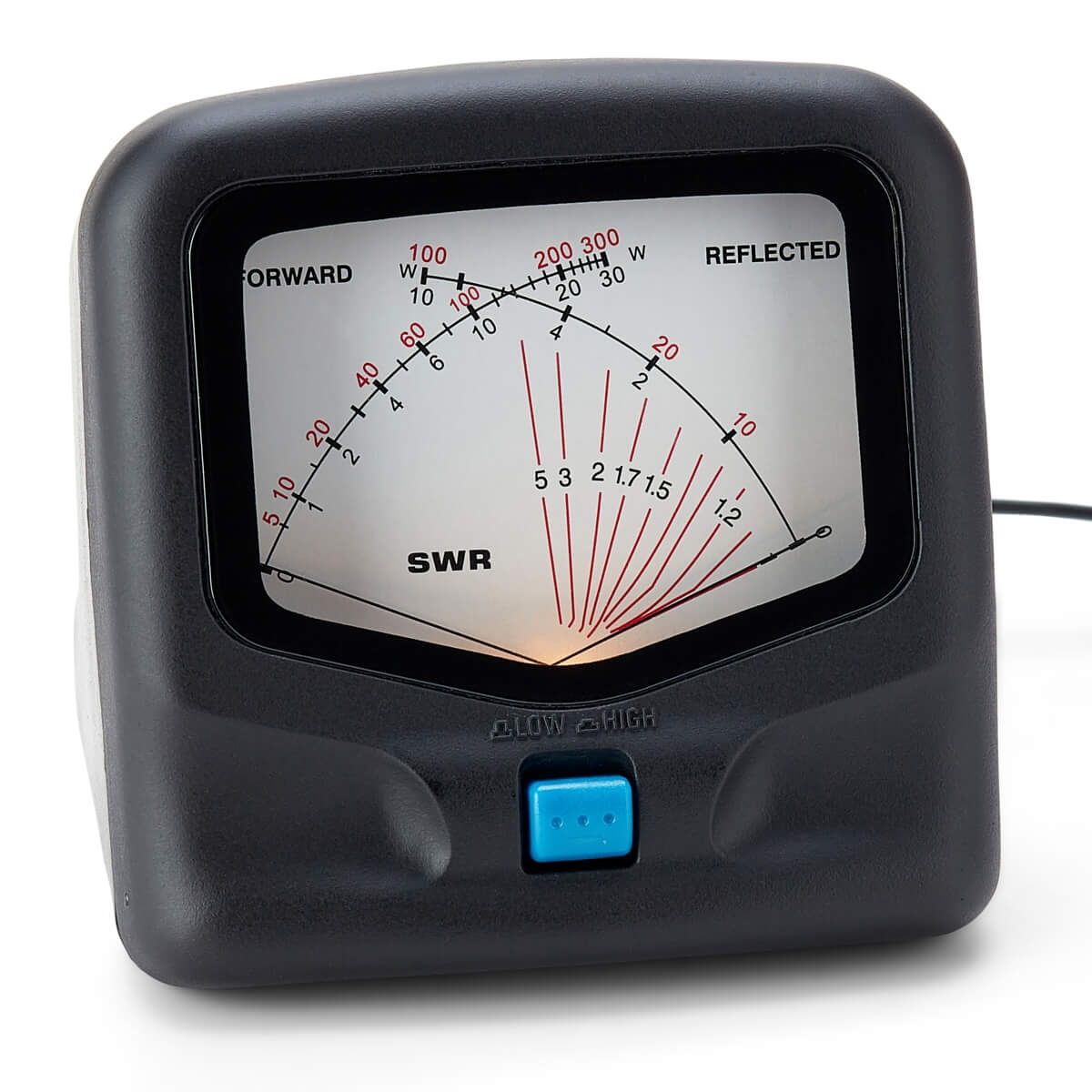

The Sharman AV-20 is a 1.8-200MHz VSWR and POWER meter with a 30W/150W power switch. The AV-20 only works on 50 Ohm impedance which measures forward and reflected power and VSWR with a sensitivity 3W for full scale deflection.
Key Features/Specifications:
- 1.8-200MHz
- Impedance 50 Ohms
- Power 0-15W/0-150W switched
- Measures forward/reflected power + VSWR
- Sensitivity 3W for full scale deflection
- Accuracy 10% at full scale
- Sockets SO239
- Size 85 x 87 x 95mm
- Weight 280g
