MALAHITE 3.5" SCREEN 50KHZ-250MHZ AND 400MHZ-2000MHZ DSP SDR RECEIVER
MALAHITE 3.5" SCREEN 50KHZ-250MHZ AND 400MHZ-2000MHZ DSP SDR RECEIVER
MALAHITE 3.5" SCREEN 50KHZ-250MHZ AND 400MHZ-2000MHZ DSP SDR RECEIVER

MALAHITE 3.5" SCREEN 50KHZ-250MHZ AND 400MHZ-2000MHZ DSP SDR RECEIVER

Tax included.

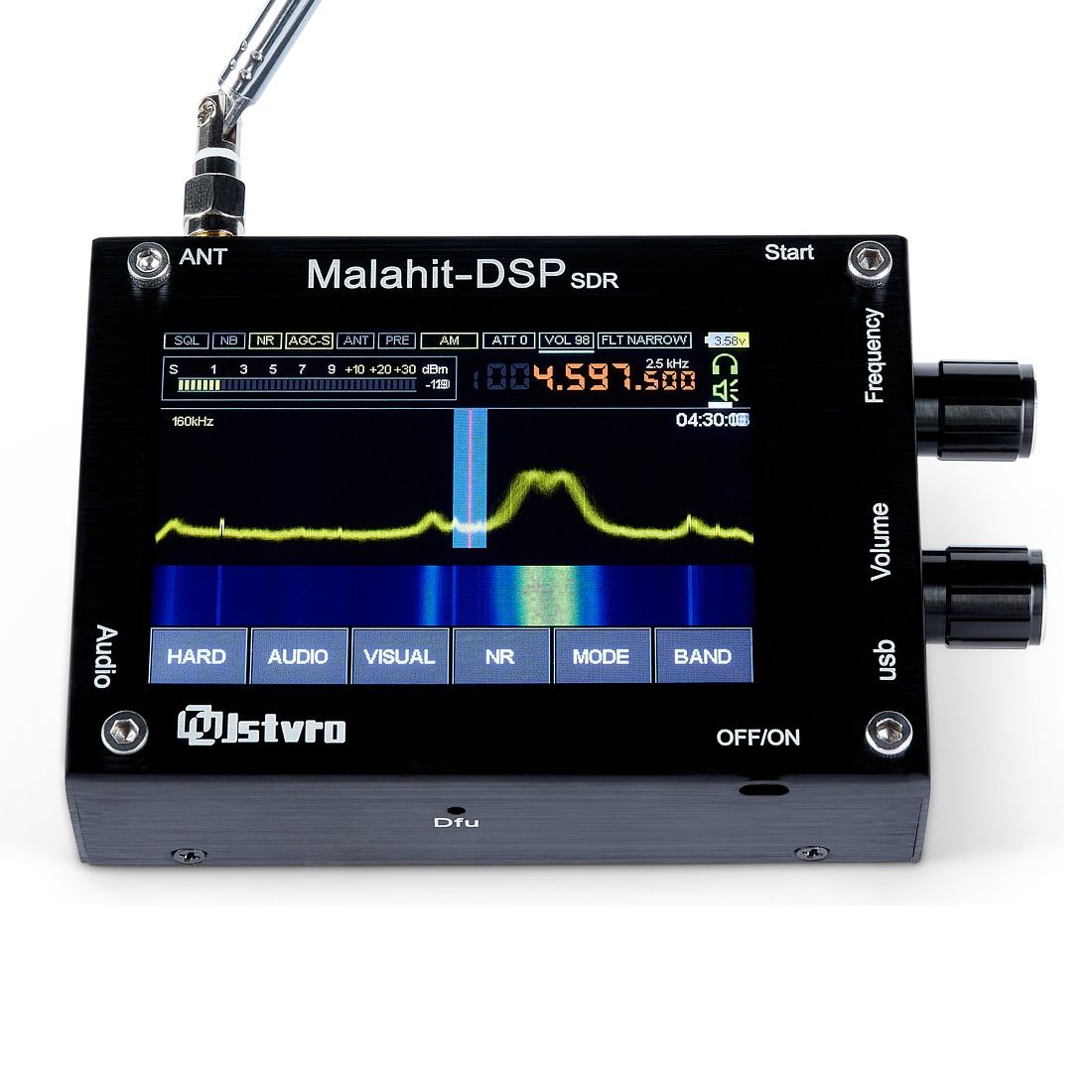

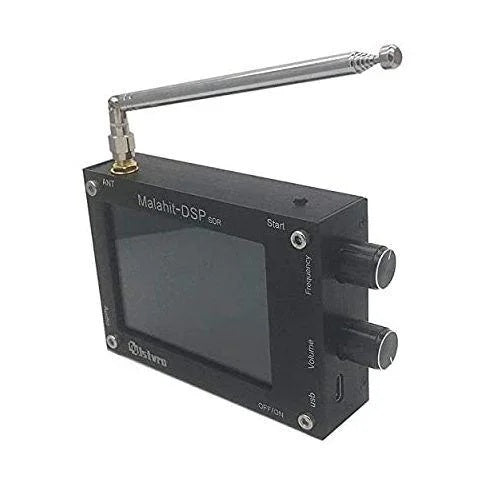

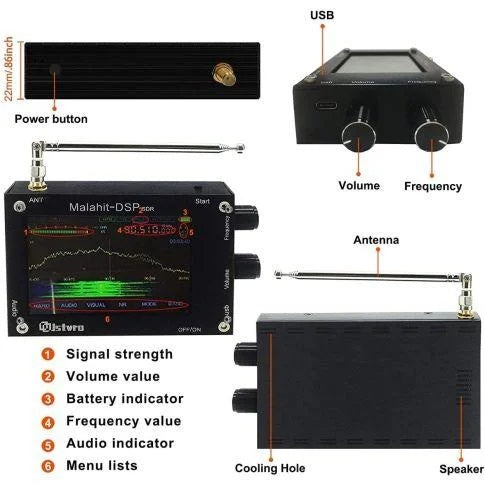

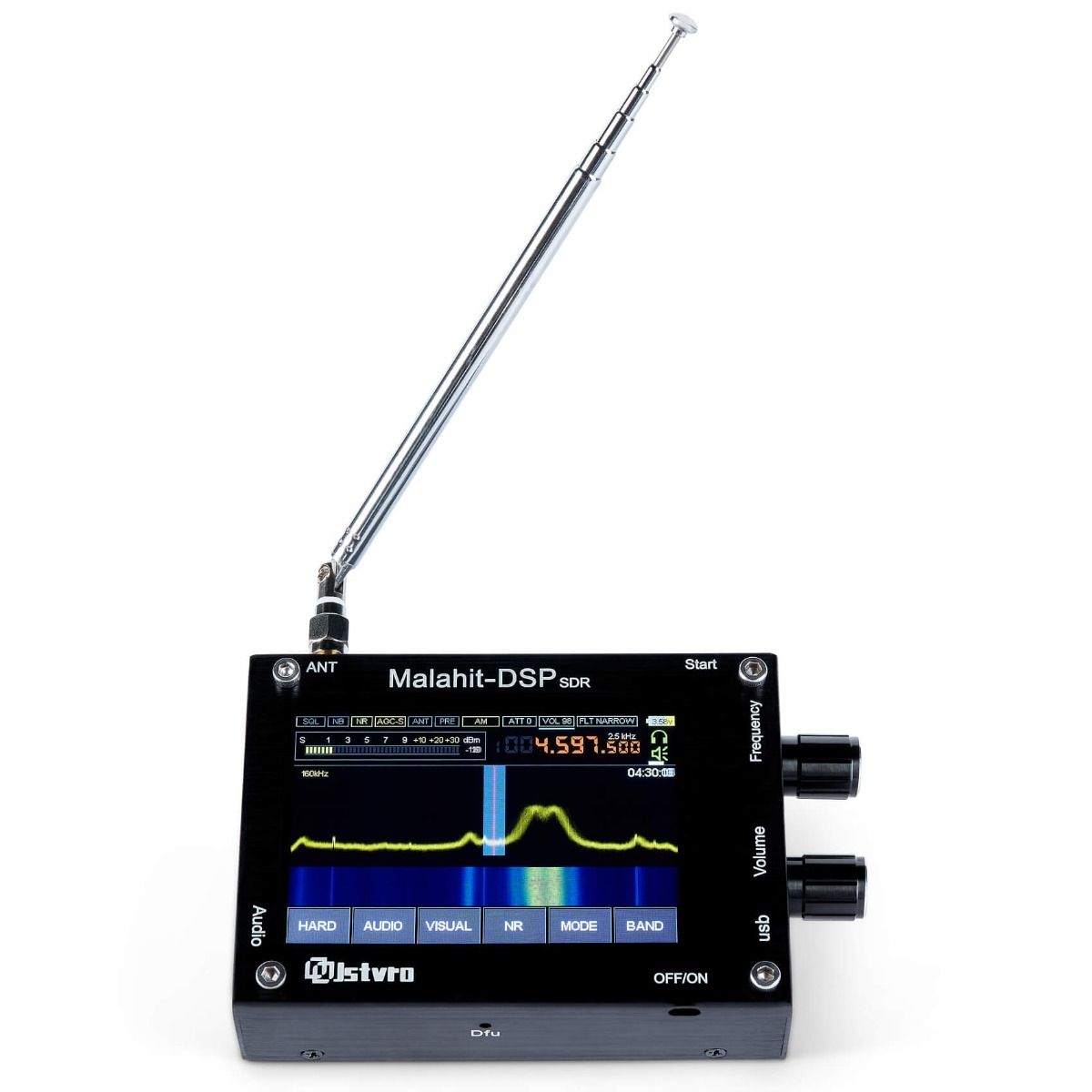

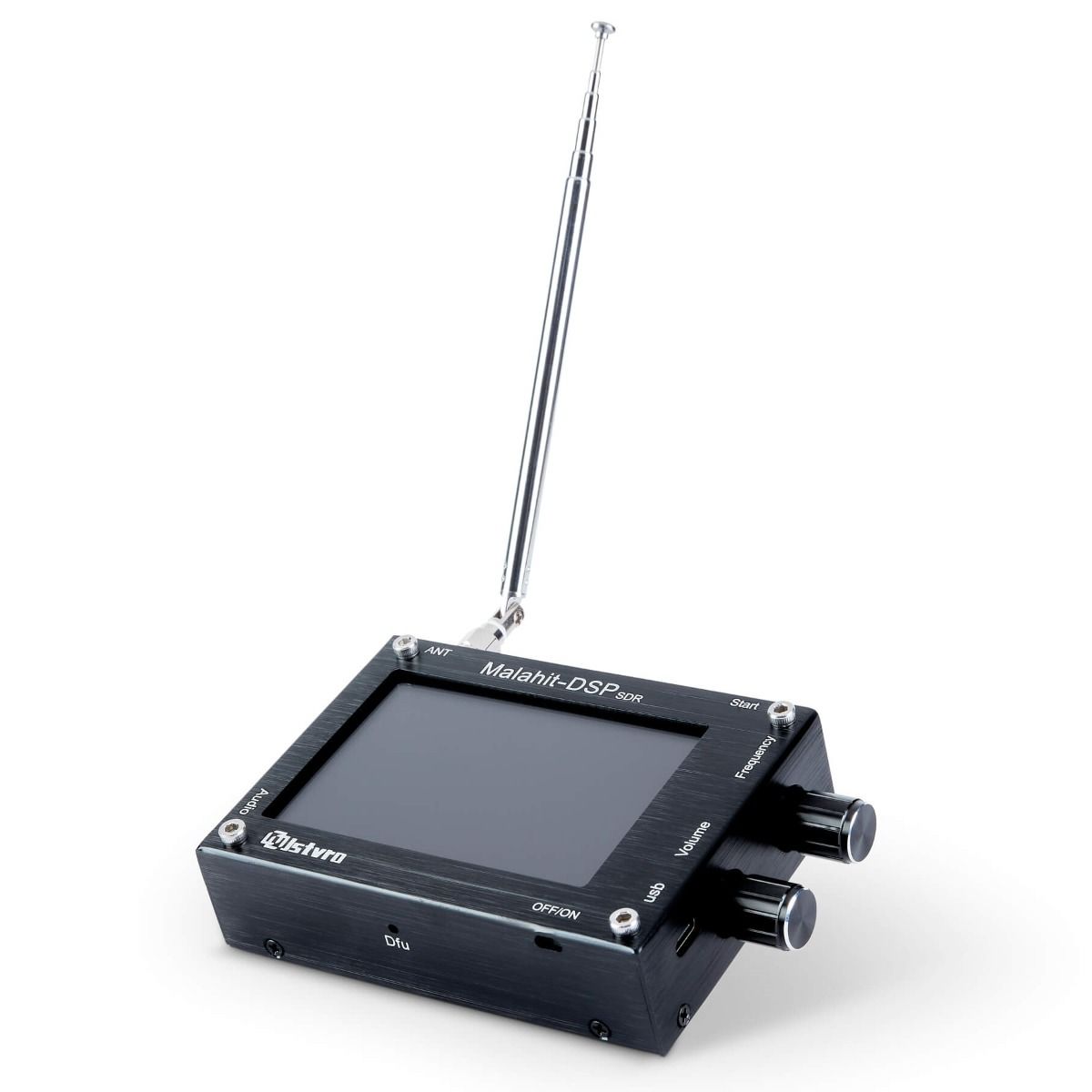

MALAHITE 3.5" SCREEN 50KHZ-250MHZ AND 400MHZ-2000MHZ DSP SDR RECEIVER.

The Malachite SDR is a self-contained SDR receiver covering all modes 50KHz to 250MHz and 400MHz-2000MHz

Features

  • DSP SDR Receiver for Malahit

  • Capacitive touch screen

  • Flash via USB cable

  • Default frequency range: 50KHz-2000MHz

  • 3.5 inch capacitive screen

  • 4-layer board structure, higher performance than two-layer PC

  • The radio is built on the principle of SDR the function is determined by loaded software

  • Frequency range from 50KHz to 250MHz and 400MHz-2000MHz

  • Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer

  • The powerful stm32h743 with a clock frequency of 480 MHz is applied

  • There is a built-in UHF

  • Controls: 2pcs; encoders with buttons and touch screen

  • It is powered by an external TYPE-C (for Huawei mobile phone) interface or battery (built-in 3000mah lithium battery)

  • Consumption: 300mA when listening to headphones

  • Connect to computer via USB, which can transfer CAT, IQ and audio

  • 160 kHz span, with scalability

  • Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB

  • Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB

  • SMA female antenna socket

  • Motherboard size: 100 x 70mm

  • Please note these are Firmware 1.10d Revion2 open and active 50KHz to 250MHz and 400MHz-2000MHz
