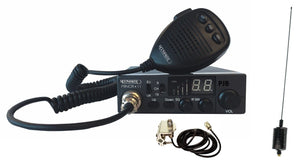

MOONRAKER MINOR II PLUS CB Radio 12v 24v 4 Bolt Mirror Mount & MULTI COLOUR Mini Stinger

MOONRAKER MINOR II PLUS CB Radio 12v 24v 4 Bolt Mirror Mount & MULTI COLOUR Mini Stinger

  • £72.95
Tax included.


MOONRAKER MINOR II PLUS CB Radio 12v 24v 4 Bolt Mirror Mount & Multi Colour Mini Stinger

Specifications:

  • Frequency Range : 26.965-27.405 & 27.60125-27.99125 MHz
  • Channels 80 FM * 2
  • Frequency control P.L.L.
  • Operating temperature -10°/+55°C
  • DC input voltage 13.8Vdc ±15%
  • Size 38mm (h) x 115mm (W) x 150mm (D)
  • Weight 0.8 kg

TRANSMITTER

  • System CPU controlled P.L.L. synthesizer
  • Maximum RF power 4W at 13.8Vdc
  • 1.8 KHz ±0.2 KHz (FM)
  • ANT impedance 50 ohm unbalanced
  • Current drain 1000mA (at no modulation)

RECEIVER

  • System CPU controlled Double conversion super
    • IF 1° 10.7 MHz / 2° 450 KHz
    • Sensitivity -120dBm for 12dB SINAD (FM)
    • -107dBm for 12dB SINAD (AM)
    • Audio output @10% THD 2.5W at 8 ohm
    • Audio distortion <8% at 1 KHz
    • Image rejection 65dB
    • Adjacent channel 85dB
    • Signal rise ratio 45dB
    • Current drain 220mA (stand-by)
    RIGHT ANGLED MIRROR MOUNT KIT MM3K is a 3 way mirror mount supplied (BRV-1)complete with cable and PL259



    Specification: MINI STINGER ANTENNA

    • FREQ: 27-28 MHz
    • LENGTH: 90cm
    • VSWR: 1.5:1 OR BETTER
    • POWER: 1000 WATTS
    • FITTING: 3/8 MALE
