AV 508 DESK CONDENSER MICROPHONE HAM RADIO + CONNECTION LEAD

AV 508 DESK CONDENSER MICROPHONE HAM RADIO +CONNECTION LEAD FOR AV-508

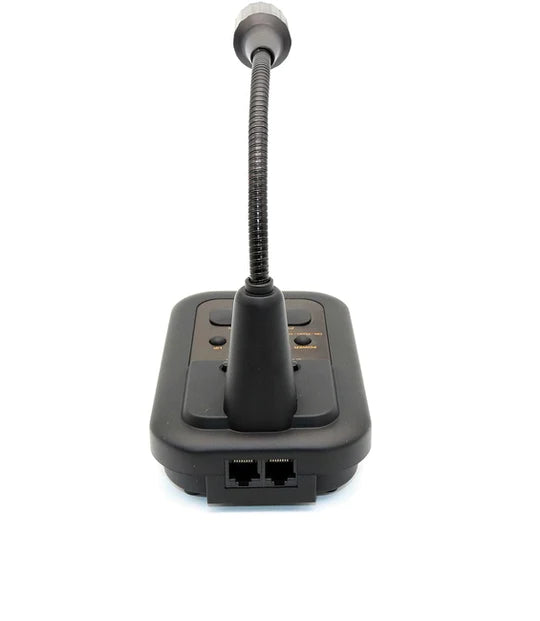

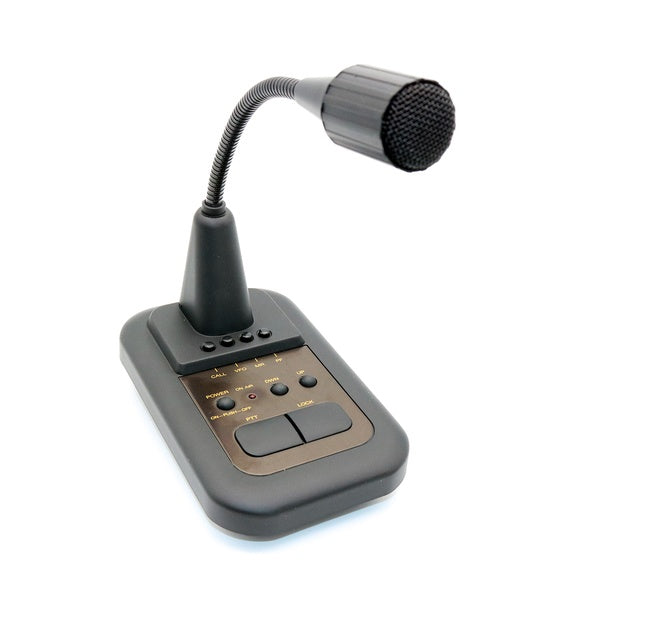

AVAIR AV 508 DESK CONDENSER MICROPHONE

CONDENSER DESK MICROPHONE WITH SWITCH ON THE BOTTOM FOR SSB OR AM/FM OPERATION

SUPPLIED WITHOUT CONNECTION CABLE

FEATURES:
BENDABLE GOOSENECK MICROPHONE

UP-DOWN BUTTONS

POWER ON-OFF BUTTON

SPEAK BUTTON (PTT)

LOCK BUTTON

LED AS TRANSMISSION CONTROL DISPLAY (ON AIR DISPLAY)

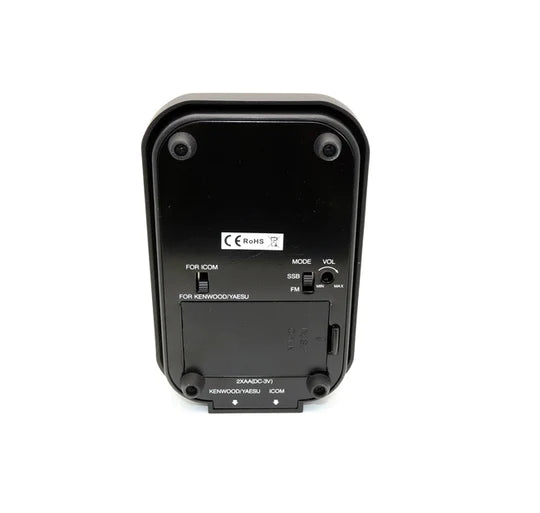

SSB FM MODE SWITCHER (BOTTOM)

POWER SUPPLY: WITH 2 BATTERIES (NOT INCLUDED)

OUTPUT VOLTAGE 0-30MV (RMS) - ADJUSTABLE ON THE BOTTOM

OUTPUT IMPEDANCE: 500 - 100K OHMS

COMPRESSOR LEVEL: 45DB (HIGH) / 10 DB (LOW)

CURRENT CONSUMPTION: 2MA (RX) / 3MA (TX)

DIMENSIONS 100 X 155 X 35MM

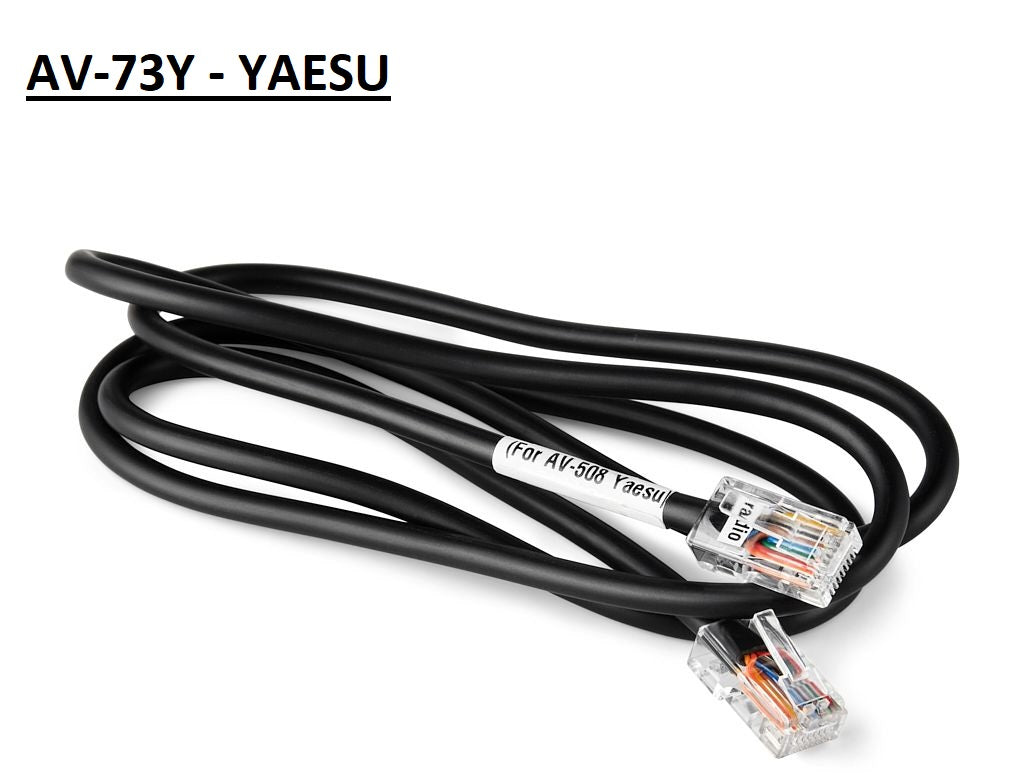

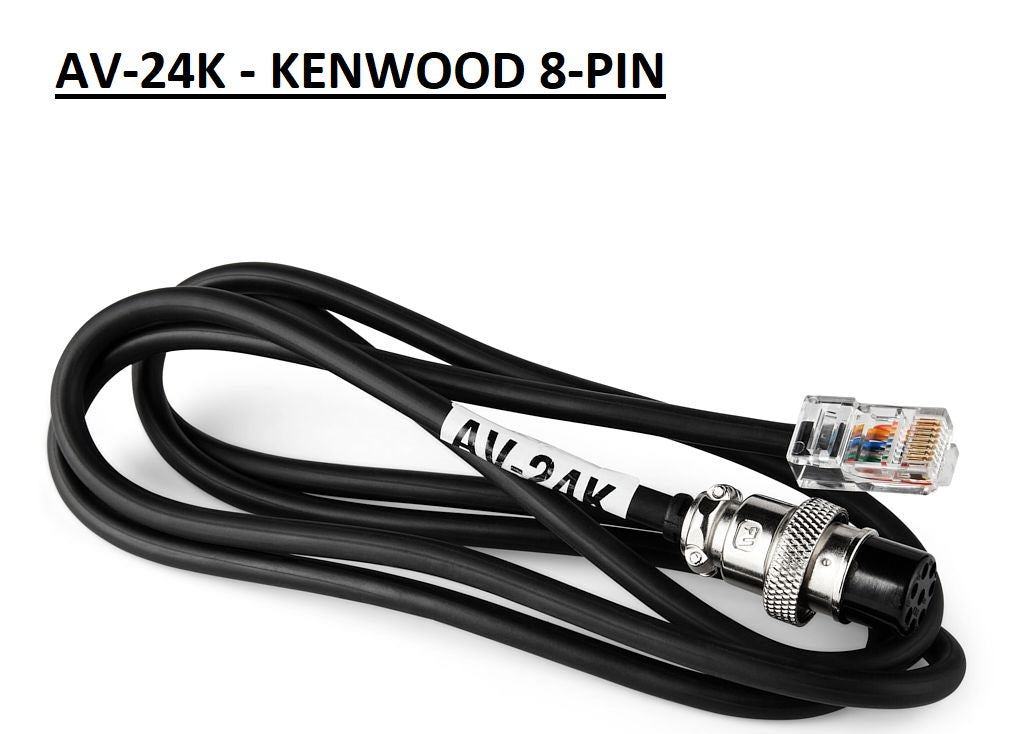

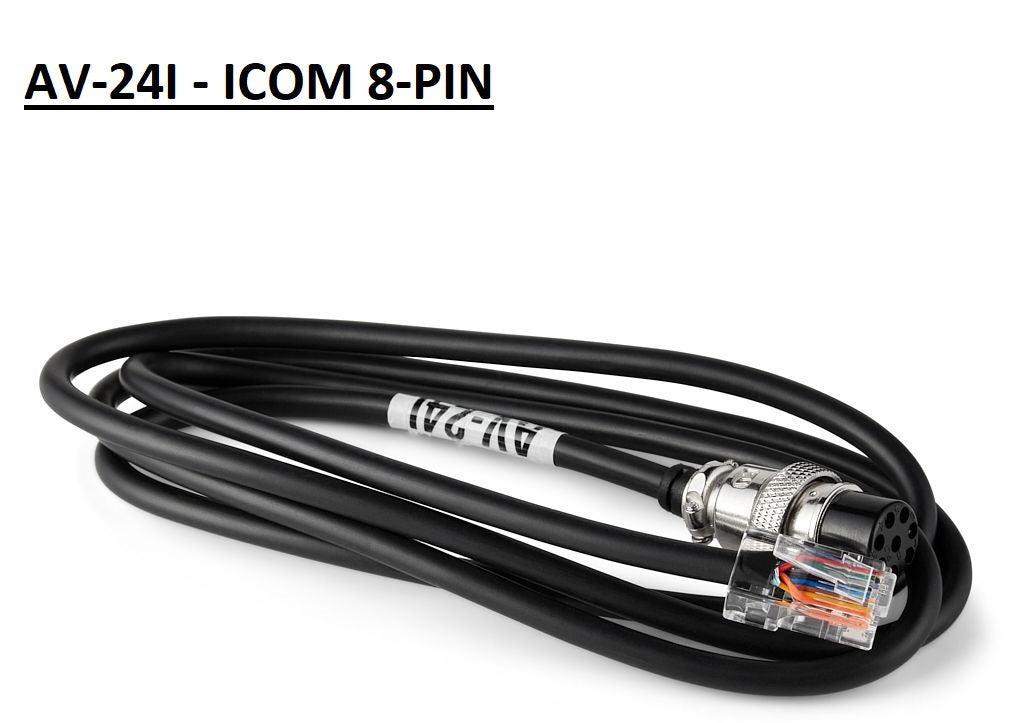

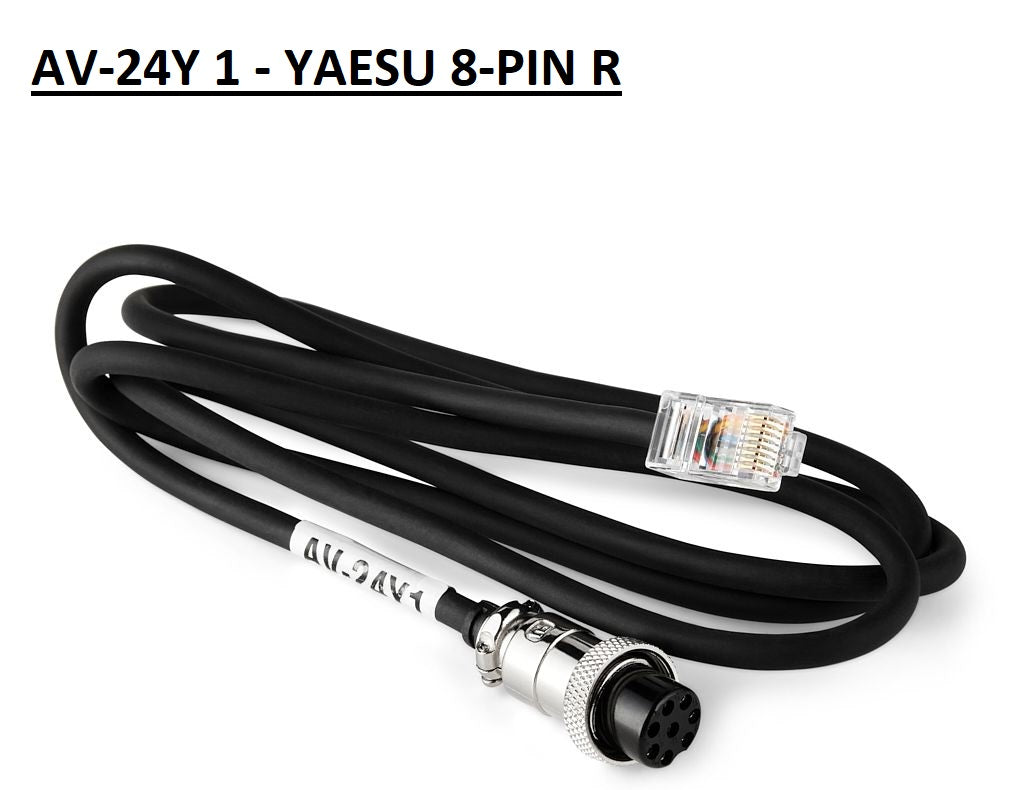

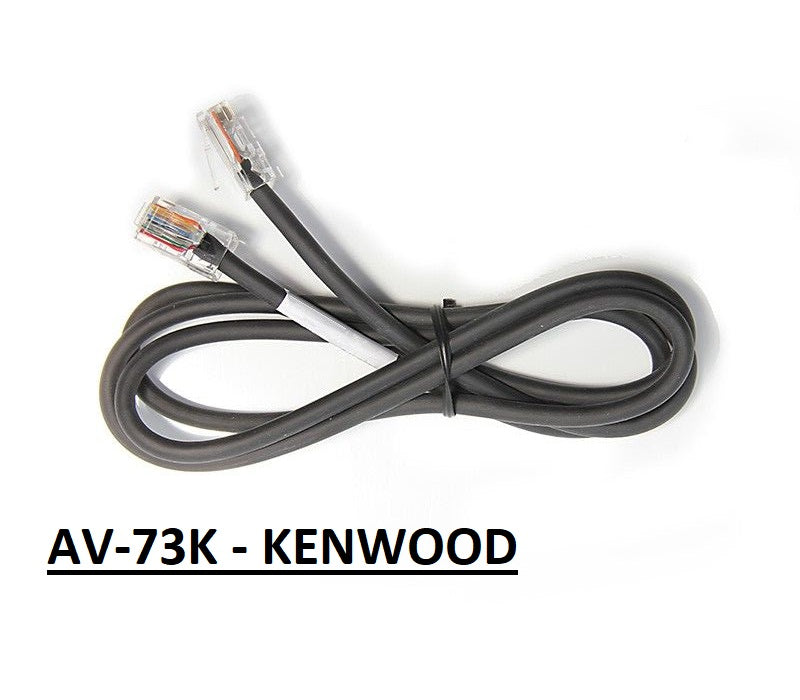

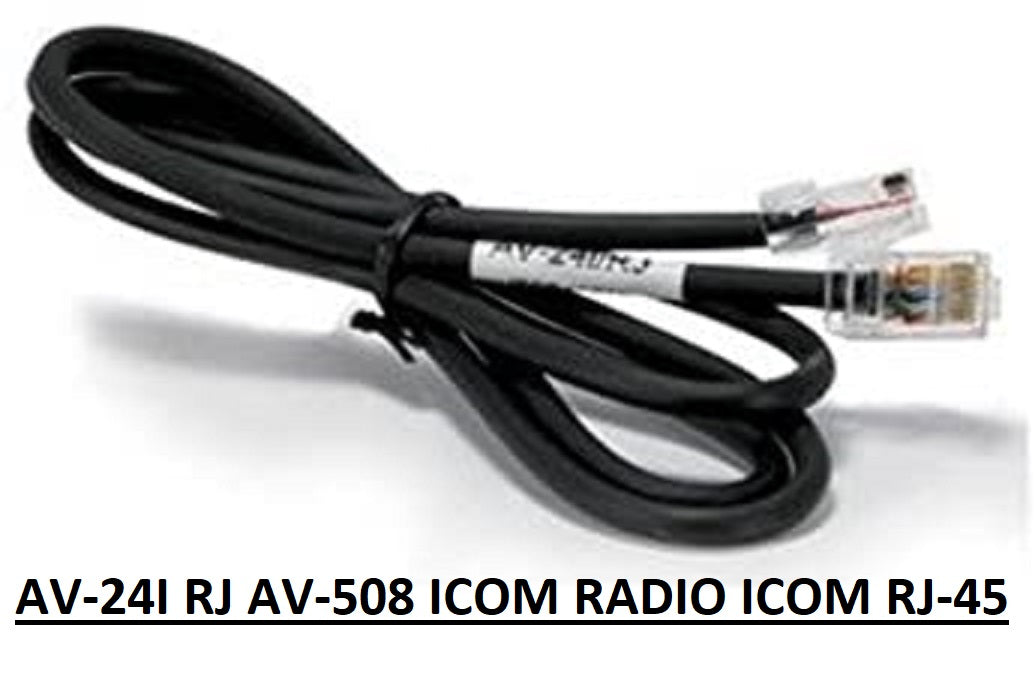

VARIOUS CONNECTION CABLES AVAILABLE AS AN OPTION (FOR ICOM, YASEU, KENWOOD, ALINCO)

ON REQUEST ALSO CONNECTION CABLE FOR CB RADIOS WITH ROUND SOCKET AVAILABLE

WEIGHT: 450
